SFV14R-2STBE1HLF
ActiveAmphenol ICC (FCI)

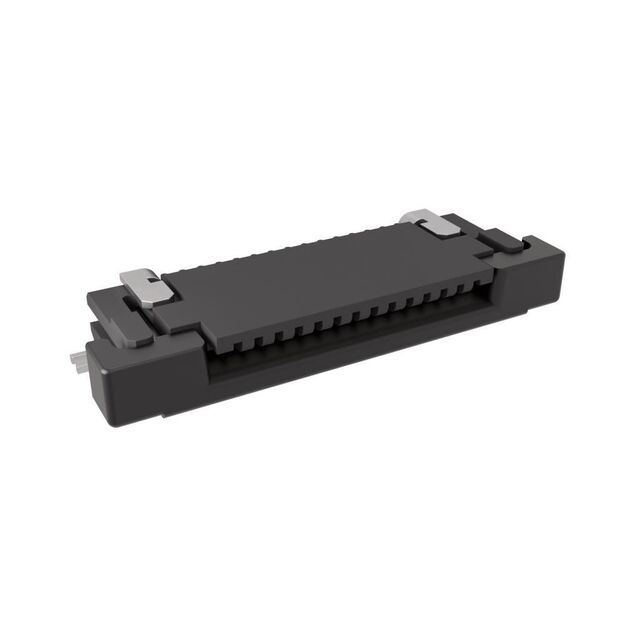

CONN FFC FPC TOP 14POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
SFV14R-2STBE1HLF
ActiveAmphenol ICC (FCI)
CONN FFC FPC TOP 14POS 0.5MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFV14R-2STBE1HLF |
|---|---|
| Actuator Color | Brown |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free |
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, Top |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 0.5 A |
| FFC, FCB Thickness | 0.33 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 1.8 mm |
| Height Above Board | 0.071 in |
| Housing Color | Black |
| Housing Material | Glass Filled, Halogen Free, Liquid Crystal Polymer (LCP) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 14 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
SFV14R Series
| Part | Locking Feature | Cable End Type | Housing Material | Mounting Type | Height Above Board | Height Above Board | Mating Cycles | Connector/Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | FFC, FCB Thickness | Actuator Color | Current Rating (Amps) | Pitch [x] | Pitch [x] | Flat Flex Type | Contact Finish | Material Flammability Rating | Actuator Material | Termination | Voltage Rating | Housing Color | Number of Positions | FFC, FCB Thickness [z] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Slide Lock | Tapered | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | 1.8 mm | 0.071 in | 20 | Contacts Top | 105 ░C | -55 °C | Phosphor Bronze | 0.3 mm | Beige | 0.5 A | 0.5 mm | 0.02 in | FPC | Gold | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Solder | 50 V | Black | 14 | ||
Amphenol ICC (FCI) | Slide Lock | Tapered | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | 1.8 mm | 0.071 in | 20 | Contacts Top | 105 ░C | -55 °C | Phosphor Bronze | 0.33 mm | Brown | 0.5 A | 0.5 mm | 0.02 in | FFC FPC | Gold | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Solder | 50 V | Black | 14 | ||
Amphenol ICC (FCI) | Slide Lock | Straight Tapered | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | 1.8 mm | 0.071 in | 20 | Contacts Bottom | 105 ░C | -55 °C | Phosphor Bronze | Black | 0.5 A | 0.5 mm | 0.02 in | FPC | Gold | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Solder | 50 V | Black | 14 | 0.3 mm 0.33 mm | ||
Amphenol ICC (FCI) | Slide Lock | Straight Tapered | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | 1.8 mm | 0.071 in | 20 | Contacts Top | 105 ░C | -55 °C | Phosphor Bronze | Black | 0.5 A | 0.5 mm | 0.02 in | FPC | Tin | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Solder | 50 V | Black | 14 | 0.3 mm 0.33 mm | ||
Amphenol ICC (FCI) | Slide Lock | Straight Tapered | Polyamide (PA) Nylon Glass Filled | Surface Mount Right Angle | 1.8 mm | 0.071 in | 20 | Contacts Top | 105 ░C | -55 °C | Phosphor Bronze | Brown | 0.5 A | 0.5 mm | 0.02 in | FFC FPC | Tin Alloy | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled | Solder | 50 V | Black | 14 | 0.3 mm 0.33 mm | Solder Retention Zero Insertion Force (ZIF) | |
Amphenol ICC (FCI) | Slide Lock | Straight Tapered | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | 1.8 mm | 0.071 in | 20 | Contacts Bottom | 105 ░C | -55 °C | Phosphor Bronze | Black | 0.5 A | 0.5 mm | 0.02 in | FFC FPC | Gold | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Solder | 50 V | Black | 14 | 0.3 mm 0.33 mm | Solder Retention Zero Insertion Force (ZIF) | |
Amphenol ICC (FCI) | Slide Lock | Tapered | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | 1.8 mm | 0.071 in | 20 | Contacts Bottom | 105 ░C | -55 °C | Phosphor Bronze | Black | 0.5 A | 0.5 mm | 0.02 in | FFC FPC | Gold | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Solder | 50 V | Black | 14 | 0.3 mm 0.33 mm | Solder Retention Zero Insertion Force (ZIF) | |
Amphenol ICC (FCI) | Flip Lock | Notched or Tabbed | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | 1.8 mm | 0.071 in | 20 | Contacts Bottom | 105 ░C | -55 °C | Phosphor Bronze | 0.3 mm | Black | 0.5 A | 0.5 mm | 0.02 in | FPC | Tin | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Solder | 50 V | Black | 14 | Solder Retention Zero Insertion Force (ZIF) | |
Amphenol ICC (FCI) | Slide Lock | Straight Tapered | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | 1.8 mm | 0.071 in | 20 | Contacts Top | 105 ░C | -55 °C | Phosphor Bronze | Black | 0.5 A | 0.5 mm | 0.02 in | FFC FPC | Tin | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Solder | 50 V | Black | 14 | 0.3 mm 0.33 mm | Solder Retention Zero Insertion Force (ZIF) | |
Amphenol ICC (FCI) | Slide Lock | Straight Tapered | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | 1.8 mm | 0.071 in | 20 | Contacts Bottom | 105 ░C | -55 °C | Phosphor Bronze | Black | 0.5 A | 0.5 mm | 0.02 in | FFC FPC | Tin | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | Solder | 50 V | Black | 14 | 0.3 mm 0.33 mm | Solder Retention Zero Insertion Force (ZIF) |
