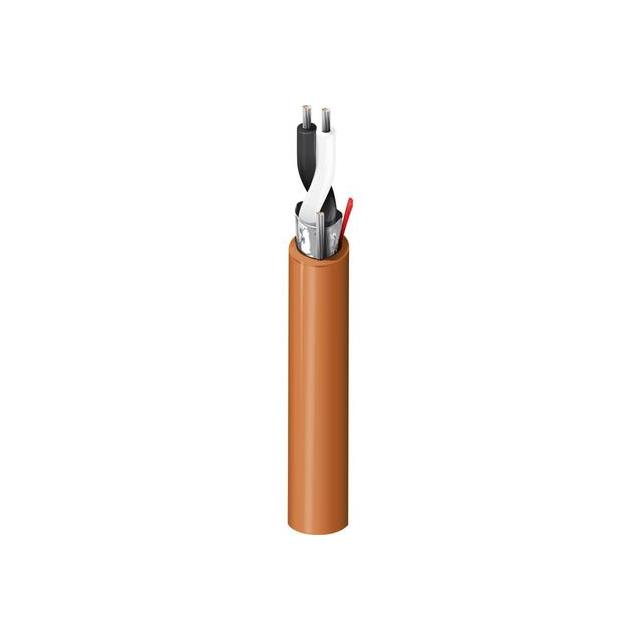

5660FT 0011000

Active

Belden Inc.

CABLE 2COND 24AWG BRN SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 24AWG BRN SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	5660FT 0011000

Cable Type	Multi-Conductor
Conductor Insulation	Foam High Density Polyethylene (FHDPE)
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.138 in
Jacket (Insulation) Diameter [diameter]	3.5 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket Color	Brown
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	24 AWG

Part	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Conductor Strand	Voltage	Length	Length	Features	Cable Type	Jacket Color	Wire Gauge	Conductor Material	Jacket (Insulation) Material	Shield Type	Conductor Insulation	Shield Material
Belden Inc. 5660FT 0011000	2	0.138 in	3.5 mm	100 %	Solid	300 V	1000 ft	304.8 m	Drain Wire	Multi-Conductor	Brown	24 AWG	Copper Tinned	Poly-Vinyl Chloride (PVC) Riser	Foil	Foam High Density Polyethylene (FHDPE)	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.17

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Brown 24 AWG Foil 1000.0' (304.8m)
