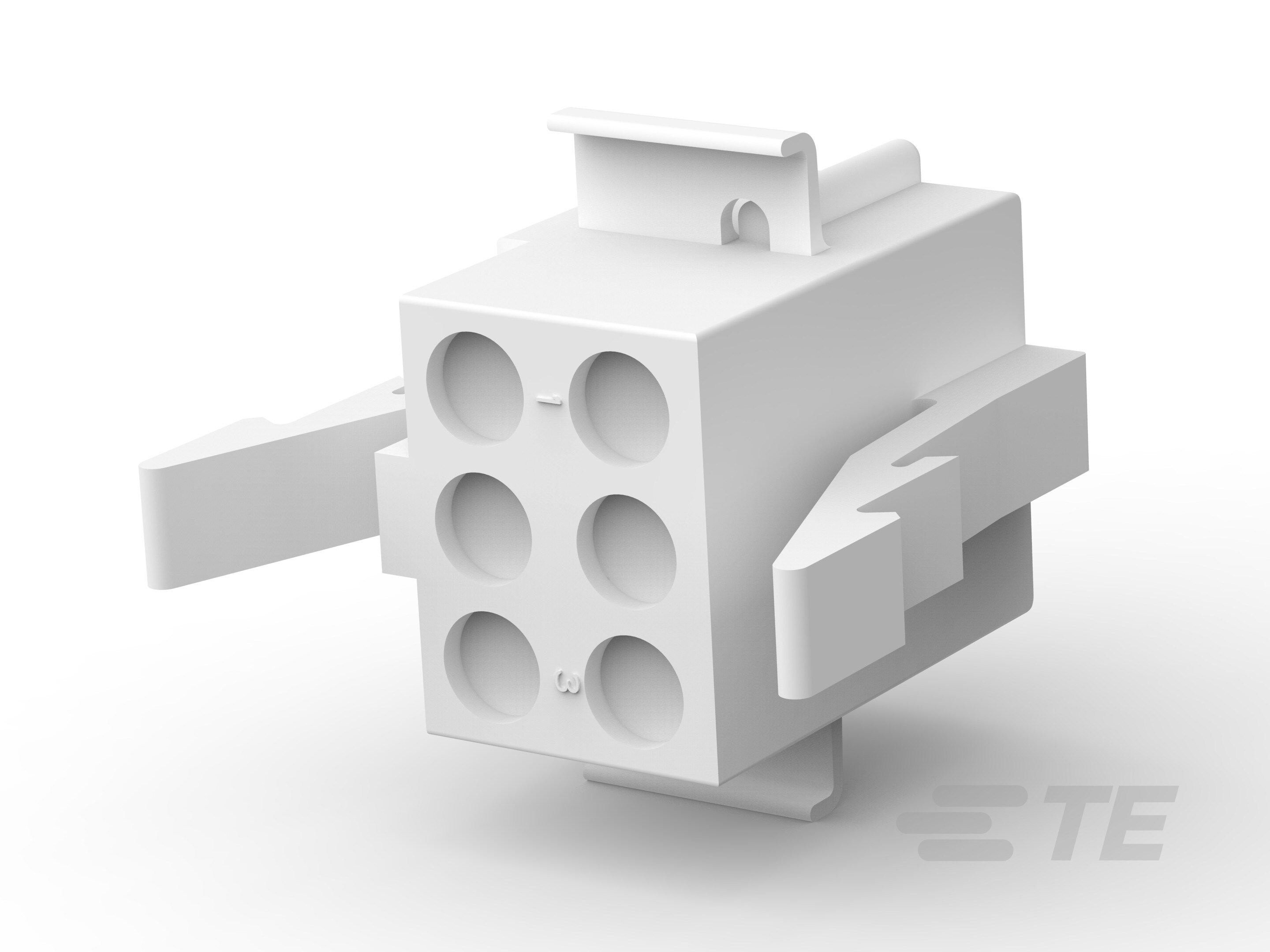

Specification	1-480273-0

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	6
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	0.202 in
Row Spacing	0.202 in

Commercial MATE-N-LOK Series

...
