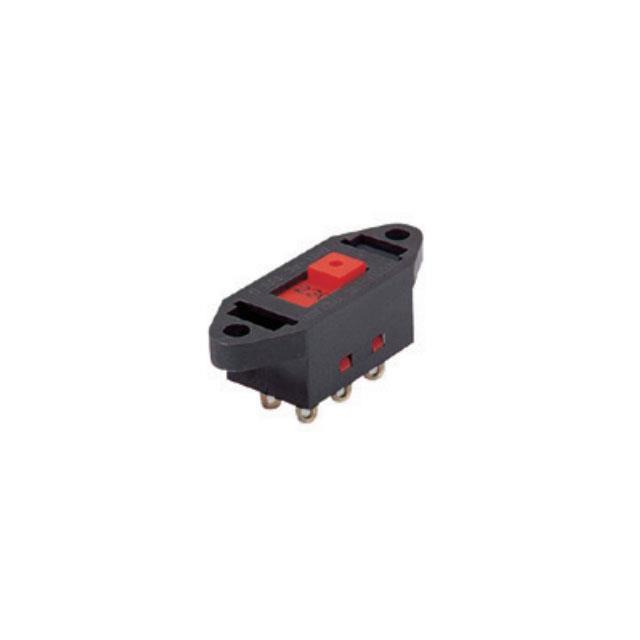

T22205BB-437W

Active

BULGIN LIMITED

SWITCH SLIDE DPDT 16A 250V

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH SLIDE DPDT 16A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SLIDE DPDT 16A 250V

Part	Switch Function	Contact Timing	Features	Circuit	Current Rating (Amps)	Actuator Length [x]	Actuator Material	Actuator Type	Termination Style	Voltage Rating - AC	Electrical Life	Features [Max]	Features [Min]
BULGIN LIMITED T22205BR	On-On (Line Voltage Selector)	Not Specified	No Marking	DPDT	16 A	1 mm	Nylon 6/6, Polyamide (PA66)	Standard	Solder Lug	250 V	10000 Cycles
BULGIN LIMITED T22205BB-437W	On-On (Line Voltage Selector)	Not Specified		DPDT	16 A	1 mm	Nylon 6/6, Polyamide (PA66)	Standard	Solder Lug	250 V	10000 Cycles	230 V	115 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.70

General part information

Slide Switch DPDT Panel Mount
