M2112LCFW03

Obsolete

NKK Switches

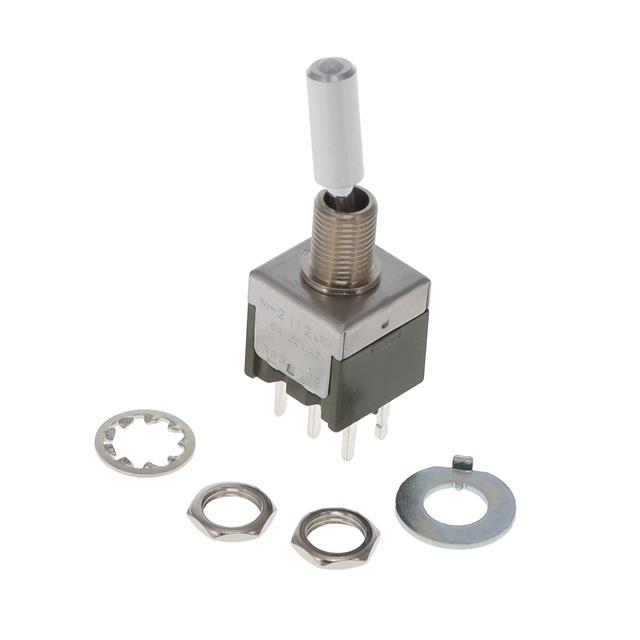

SWITCH TOGGLE SPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2112LCFW03

Actuator Length [x]	14.7 mm
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Illuminated
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	1.7 VDC, 2 VDC
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Switch Function	Voltage Rating - AC	Circuit	Termination Style	Illumination	Illumination Type, Color	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Illumination Voltage (Nominal)	Current Rating (Amps)	Bushing Thread	Electrical Life	Voltage Rating - DC	Actuator Type	Features	Mounting Type
NKK Switches M2112LCFW03	14.7 mm	6.5 mm	On-On	125 V	SPDT	PC Pin	Illuminated	Green/Red LED	55 °C	-10 °C	1.7 VDC 2 VDC	3 A 6 A	1/4-40	25000 Steps	30 V	Standard Round	Epoxy Sealed Terminals
NKK Switches M2112LCFW01	14.7 mm	6.5 mm	On-On	125 V	SPDT	Solder Lug	Illuminated	Green/Red LED	55 °C	-10 °C	1.7 VDC 2 VDC	3 A 6 A	1/4-40	25000 Steps	30 V	Standard Round	Epoxy Sealed Terminals
NKK Switches M2112LCW03	14.7 mm	6.5 mm	On-On	125 V	SPDT	PC Pin	Illuminated	LED Red	55 °C	-10 °C	2.2 VDC	3 A 6 A	1/4-40	25000 Steps	30 V	Standard Round	Epoxy Sealed Terminals	Through Hole
NKK Switches M2112LCFG03	14.7 mm	6.5 mm	On-On	28 V	SPDT	PC Pin	Illuminated	Green/Red LED	55 °C	-10 °C	1.7 VDC 2 VDC	0.4 VA	1/4-40	25000 Steps	28 V	Standard Round	Epoxy Sealed Terminals
