PIC32CM1216MC00032T-I/PT

Active

ARM CORTEX M0+,128K FLASH,16K SRAM,MOTOR CONTROL FEATURES IN 32 TQFP, I TEMP TNR 32 TQFP 7X7X1MM T/R ROHS COMPLIANT: YES

Find alt

Alpha

PIC32CM1216MC00032T-I/PT

Active

Microchip Technology

ARM CORTEX M0+,128K FLASH,16K SRAM,MOTOR CONTROL FEATURES IN 32 TQFP, I TEMP TNR 32 TQFP 7X7X1MM T/R ROHS COMPLIANT: YES

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

PIC32CM1216MC00032 Series

The Microchip PIC32CM series of 5V Cortex M0+ devices is designed for consumer, commercial, industrial and automotive applications in noisy environments. These products feature robust communications peripherals including the SERCOM module and LIN, along with advanced motor control peripherals.

These devices operate from a true 5V supply (2.7 to 5.5V) offering increased robustness in applications such as home appliance motor control by increasing the dynamic range of the ADC above the common noise floor. Application demo code including Sensorless FOC motor control is available via the Motor Control Library featured in HarmonyV3

Supported by MPLAB X IDE, and [MPLAB Harmony](https://www.microchip.com/en-us/product/MPLAB'%20originalAttribute=). In addition, external tools from vendors KEIL and IAR are also supported.

Technical Specifications

Parameters and characteristics for this part

Specification	PIC32CM1216MC00032T-I/PT

A/D Channels	1 count, 14 count
A/D Resolution (bits)	16 bit, 12 bit
Connectivity	USART, SMBus, LINbus, SPI, UART, IrDA, RS, SERCOM, I2C, 485
Converter Architecture	Sigma-Delta
Core Processor	ARM® Cortex®-M0+
Core Size (Bit Width)	32 Bit
D/A Channels	1 count
D/A Resolution (bits)	10 bit
EEPROM Size (Depth)	4 K
EEPROM Size (Width)	8 bit
Mounting Type	Surface Mount
Number of I/O	26
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	32-TQFP
Package Length	7 mm
Package Name	32-TQFP
Package Width	7 mm
Peripherals	POR, Brown-out Detect, Reset, DMA, WDT, PWM, Motor Control
Program Memory Depth (128KB)	128 K
Program Memory Size	128KB
Program Memory Type	FLASH
Program Memory Width (128KB)	8
RAM Size Depth	16 K
RAM Size Width	8 bit
Speed	48 MHz
Voltage - Supply (Vcc/Vdd) Maximum	5.5 V
Voltage - Supply (Vcc/Vdd) Minimum	2.7 V

PIC32CM1216MC00032 Series

5V Cortex ARM M0+ with 128K Flash and 16K RAM

Part	Core Size (Bit Width)	Converter Architecture	D/A Resolution (bits)	A/D Resolution (bits)	D/A Channels	A/D Channels	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Operating Temperature (Max)	Operating Temperature (Min)	Oscillator Type	Program Memory Type	Qualification	Number of I/O	Mounting Type	Package / Case	Program Memory Depth (128KB)	Program Memory Size	Program Memory Width (128KB)	Speed	Package Width	Package Name	Package Length	RAM Size Width	RAM Size Depth	Core Processor	Connectivity	EEPROM Size (Width)	EEPROM Size (Depth)	Peripherals	Grade	Core Configuration	Board Type	Suggested Programming Environment	Platform	Type	Utilized IC / Part	Contents
Microchip Technology PIC32CM1216MC00032-E/RTB	32 Bit	Sigma-Delta	10 bit	12 bit 16 bit	1 count	1 count 14 count	2.7 V	5.5 V	125 °C	-40 °C	Internal	FLASH	AEC-Q100	26	Surface Mount Wettable Flank	32-VFQFN Exposed Pad	128 K	128KB	8	48 MHz	5 mm	32-VQFN	5 mm	8 bit	16 K	ARM® Cortex®-M0+	485 I2C IrDA LINbus RS SERCOM SMBus SPI UART USART	8 bit	4 K	Brown-out Detect DMA Motor Control POR PWM Reset WDT	Automotive	Single-Core
Microchip Technology PIC32CM1216MC00032T-E/PT	32 Bit	Sigma-Delta	10 bit	12 bit 16 bit	1 count	1 count 14 count	2.7 V	5.5 V	125 °C	-40 °C	Internal	FLASH	AEC-Q100	26	Surface Mount	32-TQFP	128 K	128KB	8	48 MHz	7 mm	32-TQFP	7 mm	8 bit	16 K	ARM® Cortex®-M0+	485 I2C IrDA LINbus RS SERCOM SMBus SPI UART USART	8 bit	4 K	Brown-out Detect DMA Motor Control POR PWM Reset WDT	Automotive	Single-Core
Microchip Technology PIC32CM1216MC00032-E/PT	32 Bit	Sigma-Delta	10 bit	12 bit 16 bit	1 count	1 count 14 count	2.7 V	5.5 V	125 °C	-40 °C	Internal	FLASH	AEC-Q100	26	Surface Mount	32-TQFP	128 K	128KB	8	48 MHz	7 mm	32-TQFP	7 mm	8 bit	16 K	ARM® Cortex®-M0+	485 I2C IrDA LINbus RS SERCOM SMBus SPI UART USART	8 bit	4 K	Brown-out Detect DMA Motor Control POR PWM Reset WDT	Automotive	Single-Core

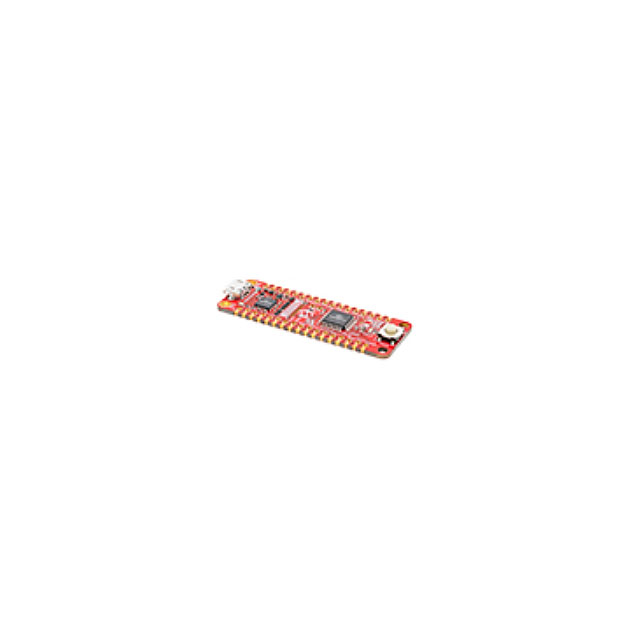

Microchip Technology EV10N93A															Fixed											PIC							Evaluation Platform	MPLAB X	Curiosity Nano	MCU 32-Bit	PIC32CM1216MC00032	Board
Microchip Technology PIC32CM1216MC00032T-I/PT	32 Bit	Sigma-Delta	10 bit	12 bit 16 bit	1 count	1 count 14 count	2.7 V	5.5 V	85 °C	-40 °C	Internal	FLASH		26	Surface Mount	32-TQFP	128 K	128KB	8	48 MHz	7 mm	32-TQFP	7 mm	8 bit	16 K	ARM® Cortex®-M0+	485 I2C IrDA LINbus RS SERCOM SMBus SPI UART USART	8 bit	4 K	Brown-out Detect DMA Motor Control POR PWM Reset WDT
Microchip Technology PIC32CM1216MC00032-I/RTB	32 Bit	Sigma-Delta	10 bit	12 bit 16 bit	1 count	1 count 14 count	2.7 V	5.5 V	85 °C	-40 °C	Internal	FLASH		26	Surface Mount Wettable Flank	32-VFQFN Exposed Pad	128 K	128KB	8	48 MHz	5 mm	32-VQFN	5 mm	8 bit	16 K	ARM® Cortex®-M0+	485 I2C IrDA LINbus RS SERCOM SMBus SPI UART USART	8 bit	4 K	Brown-out Detect DMA Motor Control POR PWM Reset WDT		Single-Core
Microchip Technology PIC32CM1216MC00032T-E/RTB	32 Bit	Sigma-Delta	10 bit	12 bit 16 bit	1 count	1 count 14 count	2.7 V	5.5 V	125 °C	-40 °C	Internal	FLASH	AEC-Q100	26	Surface Mount Wettable Flank	32-VFQFN Exposed Pad	128 K	128KB	8	48 MHz	5 mm	32-VQFN	5 mm	8 bit	16 K	ARM® Cortex®-M0+	485 I2C IrDA LINbus RS SERCOM SMBus SPI UART USART	8 bit	4 K	Brown-out Detect DMA Motor Control POR PWM Reset WDT	Automotive	Single-Core
Microchip Technology PIC32CM1216MC00032-I/PT	32 Bit	Sigma-Delta	10 bit	12 bit 16 bit	1 count	1 count 14 count	2.7 V	5.5 V	85 °C	-40 °C	Internal	FLASH		26	Surface Mount	32-TQFP	128 K	128KB	8	48 MHz	7 mm	32-TQFP	7 mm	8 bit	16 K	ARM® Cortex®-M0+	485 I2C IrDA LINbus RS SERCOM SMBus SPI UART USART	8 bit	4 K	Brown-out Detect DMA Motor Control POR PWM Reset WDT		Single-Core
Microchip Technology PIC32CM1216MC00032T-I/RTB	32 Bit	Sigma-Delta	10 bit	12 bit 16 bit	1 count	1 count 14 count	2.7 V	5.5 V	85 °C	-40 °C	Internal	FLASH		26	Surface Mount Wettable Flank	32-VFQFN Exposed Pad	128 K	128KB	8	48 MHz	5 mm	32-VQFN	5 mm	8 bit	16 K	ARM® Cortex®-M0+	485 I2C IrDA LINbus RS SERCOM SMBus SPI UART USART	8 bit	4 K	Brown-out Detect DMA Motor Control POR PWM Reset WDT
