9DBU0631AKILF

Active

Renesas Electronics Corporation

6-OUTPUT 1.5V PCIE ZERO-DELAY/FANOUT CLOCK BUFFER

Find alt

Alpha

9DBU0631AKILF

Active

Renesas Electronics Corporation

6-OUTPUT 1.5V PCIE ZERO-DELAY/FANOUT CLOCK BUFFER

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

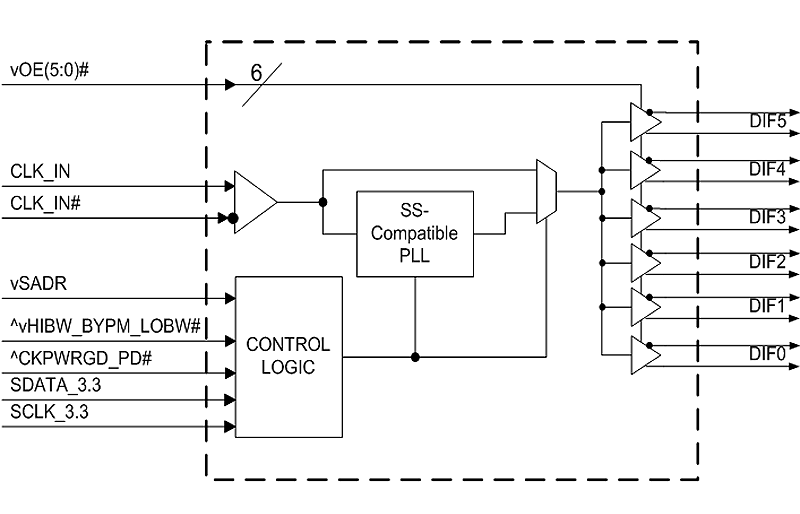

9DBU0631 Series

The 9DBU0631 is a member of IDT's 1.5 V Ultra-Low-Power (ULP) PCIe family. The device has 6 output enables for clock management and 3 selectable SMBus addresses.

Technical Specifications

Parameters and characteristics for this part

Specification	9DBU0631AKILF

Differential Input	Yes
Differential Output	Yes
Frequency - Max	167 MHz
Input	HCSL
Input Ratio	1
Main Purpose	PCI Express (PCIe)
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output	LP-HCSL
Output Ratio	6
Package / Case	40-VFQFN Exposed Pad
Package Length	5 mm
Package Name	40-VFQFPN
Package Width	5 mm
PLL	Yes
Voltage - Supply (Maximum)	1.575 V
Voltage - Supply (Minimum)	1.425 V

9DBU0631 Series

6-output 1.5V PCIe Zero-Delay/Fanout Clock Buffer

Part	Operating Temperature (Max)	Operating Temperature (Min)	Differential Input	Differential Output	Main Purpose	Number of Circuits	Package Length	Package Name	Package Width	Output	Output Ratio	Input Ratio	Mounting Type	PLL	Frequency - Max	Input	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package / Case
Renesas Electronics Corporation 9DBU0631AKLF	70 °C	0 °C	Yes	Yes	PCI Express (PCIe)	1	5 mm	40-VFQFPN	5 mm	LP-HCSL	6	1	Surface Mount	Yes	167 MHz	HCSL	1.575 V	1.425 V	40-VFQFN Exposed Pad
Renesas Electronics Corporation 9DBU0631AKLFT	70 °C	0 °C	Yes	Yes	PCI Express (PCIe)	1	5 mm	40-VFQFPN	5 mm	LP-HCSL	6	1	Surface Mount	Yes	167 MHz	HCSL	1.575 V	1.425 V	40-VFQFN Exposed Pad
Renesas Electronics Corporation 9DBU0631AKILF	85 °C	-40 °C	Yes	Yes	PCI Express (PCIe)	1	5 mm	40-VFQFPN	5 mm	LP-HCSL	6	1	Surface Mount	Yes	167 MHz	HCSL	1.575 V	1.425 V	40-VFQFN Exposed Pad
Renesas Electronics Corporation 9DBU0631AKILFT	85 °C	-40 °C	Yes	Yes	PCI Express (PCIe)	1	5 mm	40-VFQFPN	5 mm	LP-HCSL	6	1	Surface Mount	Yes	167 MHz	HCSL	1.575 V	1.425 V	40-VFQFN Exposed Pad

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

9DBU0631AKILF | Datasheet

9DBU0631 Datasheet
