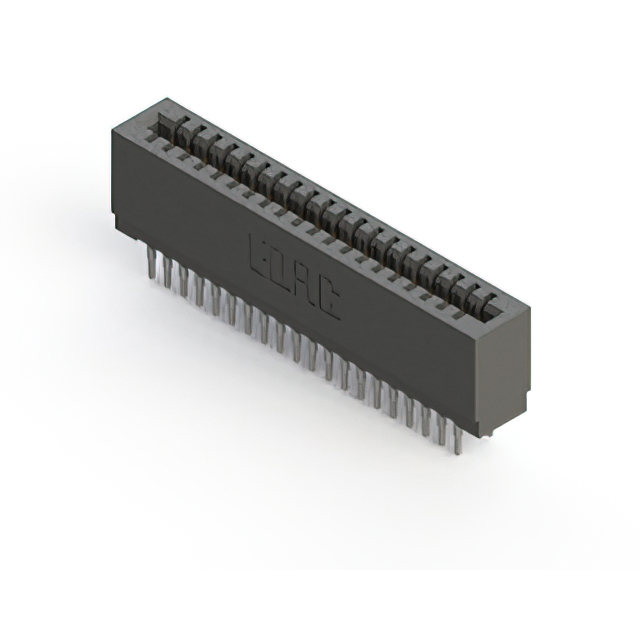

725-040-540-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 40POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

725-040-540-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 40POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	725-040-540-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	40
Number of Positions/Bay/Row [custom]	20
Number of Positions/Bay/Row [custom]	20
Number of Positions/Bay/Row [custom]	20
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap, Press-Fit
Termination Rows	2

725-040 Series

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Number of Rows	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Mounting Type	Read Out	Contact Finish	Termination Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Pitch [x]	Pitch [x]	Gender	Material - Insulation	Color	Number of Positions/Bay/Row [custom]
EDAC Inc. 725-040-545-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Press-Fit Wire Wrap	2	Copper Alloy	0.76 Ám	30 Áin	Cantilever	20	20	20	Through Hole	Dual	Gold	2	40	-40 °C	105 ░C	Non Specified - Dual Edge	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Black
EDAC Inc. 725-040-522-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Press-Fit	2	Copper Alloy	0.76 Ám	30 Áin	Cantilever	20	20	20	Through Hole	Dual	Gold	2	40	-40 °C	105 ░C	Non Specified - Dual Edge	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Black
EDAC Inc. 725-040-540-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Press-Fit Wire Wrap	2	Copper Alloy	0.76 Ám	30 Áin	Cantilever	20	20	20	Through Hole	Dual	Gold	2	40	-40 °C	105 ░C	Non Specified - Dual Edge	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Black
EDAC Inc. 725-040-525-101	1.37 mm	0.054 "	1.78 mm	0.07 in	Press-Fit	1	Copper Alloy	0.76 Ám	30 Áin	Cantilever				Through Hole	Single	Gold	1	40	-40 °C	105 ░C	Non Specified - Single Edge	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Black	40
EDAC Inc. 725-040-525-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Press-Fit	2	Copper Alloy	0.76 Ám	30 Áin	Cantilever	20	20	20	Through Hole	Dual	Gold	2	40	-40 °C	105 ░C	Non Specified - Dual Edge	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Black
EDAC Inc. 725-040-520-101	1.37 mm	0.054 "	1.78 mm	0.07 in	Press-Fit	1	Copper Alloy	0.76 Ám	30 Áin	Cantilever				Through Hole	Single	Gold	1	40	-40 °C	105 ░C	Non Specified - Single Edge	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Black	40
EDAC Inc. 725-040-541-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Press-Fit Wire Wrap	2	Copper Alloy	0.76 Ám	30 Áin	Cantilever	20	20	20	Through Hole	Dual	Gold	2	40	-40 °C	105 ░C	Non Specified - Dual Edge	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Black
EDAC Inc. 725-040-560-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Press-Fit	2	Copper Alloy	0.76 Ám	30 Áin	Cantilever Make Before Break	20	20	20	Through Hole	Dual	Gold	2	40	-40 °C	105 ░C	Non Specified - Dual Edge	2.54 mm	0.1 in	Female	Polyester Thermoplastic	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 6.29

Description

General part information

725-040 Series

40 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
