Q-1T0340003003i

Active

Amphenol Custom Cable

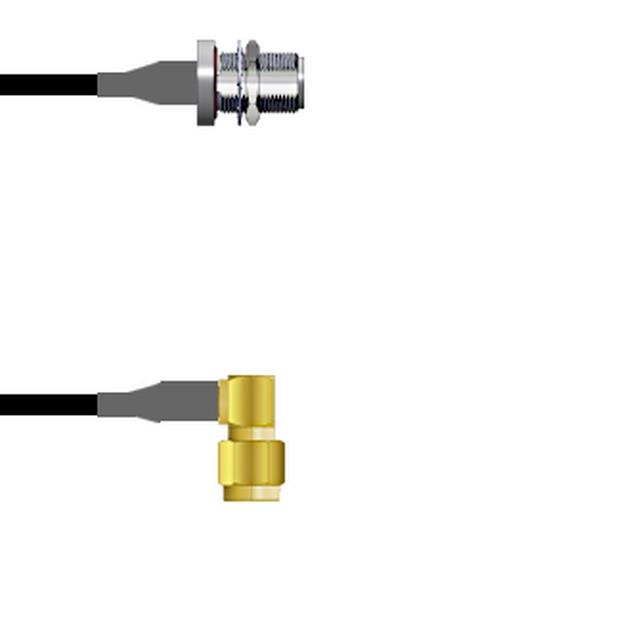

CBL ASSY SMA-NTYPE PLUG-JACK 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T0340003003i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PLUG-JACK 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T0340003003i

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-1T0340 Series

Part	1st Contact Gender	2nd Connector Mounting Type	1st Connector Mounting Type	Overall Impedance	Style	Features	Frequency - Max [Max]	Cable Type	1st Connector	Color	2nd Connector Mounting Feature	2nd Connector	Length	Length	2nd Contact Gender	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1T0340003006i	Male	Panel Mount	Free Hanging (In-Line)	50 Ohms	SMA to N-Type	Shielded	11 GHz	RG-174	Right Angle SMA Plug	Black	Bulkhead - Front Side Nut	N-Type Jack	152.4 mm	6 in	Female
Amphenol Custom Cable Q-1T03400052.5M	Male	Panel Mount	Free Hanging (In-Line)	50 Ohms	SMA to N-Type	Shielded	11 GHz	RG-316	Right Angle SMA Plug	Copper	Bulkhead - Front Side Nut	N-Type Jack	2.5 m	98.4 in	Female	8.2 '
Amphenol Custom Cable Q-1T0340005036i	Male	Panel Mount	Free Hanging (In-Line)	50 Ohms	SMA to N-Type	Shielded	11 GHz	RG-316	Right Angle SMA Plug	Copper	Bulkhead - Front Side Nut	N-Type Jack	91.44 cm	36 in	Female
Amphenol Custom Cable Q-1T0340003.25M	Male	Panel Mount	Free Hanging (In-Line)	50 Ohms	SMA to N-Type	Shielded	11 GHz	RG-174	Right Angle SMA Plug	Black	Bulkhead - Front Side Nut	N-Type Jack			Female		9.843 "	250 mm
Amphenol Custom Cable Q-1T0340003084i	Male	Panel Mount	Free Hanging (In-Line)	50 Ohms	SMA to N-Type	Shielded	11 GHz	RG-174	Right Angle SMA Plug	Black	Bulkhead - Front Side Nut	N-Type Jack	2.1 m	84 in	Female	7 ft
Amphenol Custom Cable Q-1T0340005012i	Male	Panel Mount	Free Hanging (In-Line)	50 Ohms	SMA to N-Type	Shielded	11 GHz	RG-316	Right Angle SMA Plug	Copper	Bulkhead - Front Side Nut	N-Type Jack	304.8 mm	12 "	Female
Amphenol Custom Cable Q-1T0340003009i	Male	Panel Mount	Free Hanging (In-Line)	50 Ohms	SMA to N-Type	Shielded	11 GHz	RG-174	Right Angle SMA Plug	Black	Bulkhead - Front Side Nut	N-Type Jack	228.6 mm	9 "	Female
Amphenol Custom Cable Q-1T0340003048i	Male	Panel Mount	Free Hanging (In-Line)	50 Ohms	SMA to N-Type	Shielded	11 GHz	RG-174	Right Angle SMA Plug	Black	Bulkhead - Front Side Nut	N-Type Jack	1200 mm	48 in	Female	4 ft
Amphenol Custom Cable Q-1T03400050.5M	Male	Panel Mount	Free Hanging (In-Line)	50 Ohms	SMA to N-Type	Shielded	11 GHz	RG-316	Right Angle SMA Plug	Copper	Bulkhead - Front Side Nut	N-Type Jack	50 cm	19.69 "	Female
Amphenol Custom Cable Q-1T0340003003i	Male	Panel Mount	Free Hanging (In-Line)	50 Ohms	SMA to N-Type	Shielded	11 GHz	RG-174	Right Angle SMA Plug	Black	Bulkhead - Front Side Nut	N-Type Jack	76.2 mm	3 in	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 100.13
		25	$ 98.19
		50	$ 96.25
		100	$ 94.31
		250	$ 92.37

Description

General part information

Q-1T0340 Series

Cable Assembly Coaxial SMA to N-Type RG-174 3.000" (76.20mm)

Documents

Technical documentation and resources

No documents available
