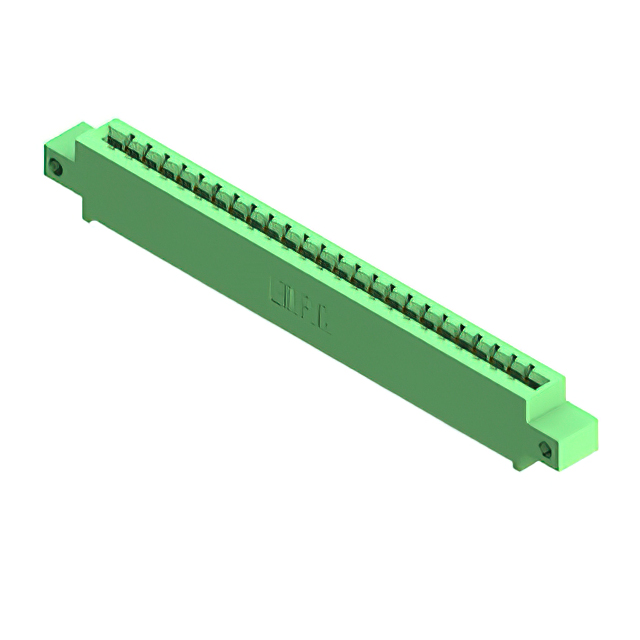

837-024-523-612
ActiveEDAC Inc.
CONN EDGE SGL FMALE 24POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-024-523-612
ActiveEDAC Inc.
CONN EDGE SGL FMALE 24POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-024-523-612 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 24 |
| Number of Positions/Bay/Row [custom] | 24 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
837-024 Series
...
| Part | Gender | Contact Finish | Contact Type | Mounting Type | Card Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Pitch [x] | Pitch [x] | Number of Rows | Read Out | Color | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Termination Rows | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 2 | Dual | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Copper Alloy | 125 °C | -40 °C | Wire Wrap | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | ||
EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 2 | Dual | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Copper Alloy | 125 °C | -40 °C | Solder | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | ||
EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 2 | Dual | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Copper Alloy | 125 °C | -40 °C | Solder | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | ||
EDAC Inc. | Female | Gold | Cantilever | Through Hole Right Angle | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 2 | Dual | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Copper Alloy | 125 °C | -40 °C | Solder | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | ||
EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 2 | Dual | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Copper Alloy | 125 °C | -40 °C | Solder | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 1 | Single | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 1 | Copper Alloy | 125 °C | -40 °C | Wire Wrap | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | ||
EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 2 | Dual | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 12 | 2 | Copper Alloy | 125 °C | -40 °C | Solder | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | ||
EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 1 | Single | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 1 | Copper Alloy | 125 °C | -40 °C | Solder Eyelet(s) | |||||
EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 1 | Single | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 1 | Copper Alloy | 125 °C | -40 °C | Solder | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | ||
EDAC Inc. | Female | Gold | Cantilever | Through Hole | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 24 | 0.156 in | 3.96 mm | 1 | Single | Green | Diallyl Phthalate (DAP) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | 1 | Copper Alloy | 125 °C | -40 °C | Solder | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
837-024 Series
24 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
