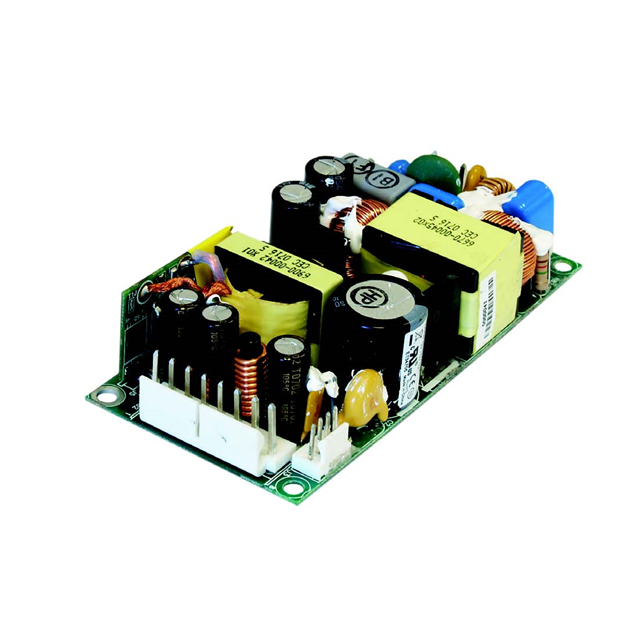

HD160-112

Obsolete

Digital Power Corporation

AC/DC CONVERTER 12V 160W

Search across all available documentation for this part.

Obsolete

Digital Power Corporation

AC/DC CONVERTER 12V 160W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HD160-112	HD160 Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Approval Agency	CSA, NEMKO, CE	CSA, NEMKO, CE
Current - Output 1	13.3 A	3.33 - 20 A
Efficiency	90 %	90 %
Features	Universal Input, Adjustable Output, PFC, Standby Output	Universal Input, Adjustable Output, PFC, Standby Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	160 W	100 - 160 W
Size / Dimension [x]	4 in	4 in
Size / Dimension [x]	101.6 mm	101.6 mm
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [y]	2 in	2 in
Size / Dimension [z]	26.9 mm	26.9 mm
Size / Dimension [z]	1.06 in	1.06 in
Standard Number	60950-1, 60601-1	60950-1, 60601-1
Type	Open Frame	Open Frame
Voltage - Output 1	12 V	5 - 48 V

AC/DC CONVERTER 12V 160W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Voltage - Output 1	Type	Number of Outputs	Standard Number	Applications	Mounting Type	Efficiency	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output 1	Power (Watts)
Digital Power Corporation HD160-112	-20 °C	70 °C	CE, CSA, NEMKO	12 V	Open Frame	1	60601-1, 60950-1	ITE (Commercial), Medical	Chassis Mount	90 %	Adjustable Output, PFC, Standby Output, Universal Input	26.9 mm	4 in	50.8 mm	2 in	1.06 in	101.6 mm	13.3 A	160 W
Digital Power Corporation HD160-105	-20 °C	70 °C	CE, CSA, NEMKO	5 V	Open Frame	1	60601-1, 60950-1	ITE (Commercial), Medical	Chassis Mount	90 %	Adjustable Output, PFC, Standby Output, Universal Input	26.9 mm	4 in	50.8 mm	2 in	1.06 in	101.6 mm	20 A	100 W
Digital Power Corporation HD160-148	-20 °C	70 °C	CE, CSA, NEMKO	48 V	Open Frame	1	60601-1, 60950-1	ITE (Commercial), Medical	Chassis Mount	90 %	Adjustable Output, PFC, Standby Output, Universal Input	26.9 mm	4 in	50.8 mm	2 in	1.06 in	101.6 mm	3.33 A	160 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC, 170 ~ 370 VDC Input
