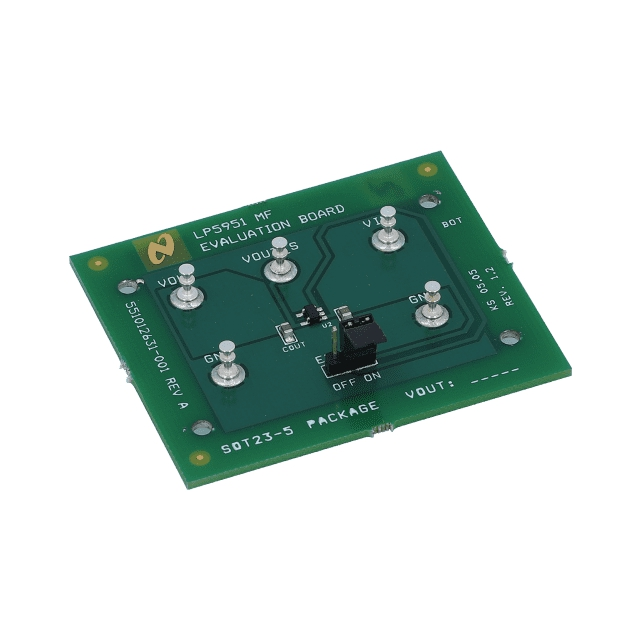

Specification	LP5951MF-1.8EV

Board Type	Fully Populated
Channels per IC (Count)	1
Channels per IC (Single)	1
Channels per IC (Type)	Single
Contents	Board
Current - Output	150 mA
Regulator Type	Positive Fixed
Supplied Contents	Board(s)
Utilized IC / Part	LP5951
Voltage - Input (Maximum)	5.5 V
Voltage - Input (Minimum)	1.8 V
Voltage - Output	1.8 V

LP5951 Series

Part	PSRR (Maximum)	PSRR (Minimum)	Current - Quiescent (Iq)	Output Type	Voltage Dropout (Max)	Number of Regulators	Voltage - Output (Min/Fixed)	Output Configuration	Package Name	Mounting Type	Voltage - Input (Max)	Control Features	Protection Features	Current - Output	Current - Supply (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case
Texas Instruments LP5951MF-2.8	60 dB	50 dB	55 µA	Fixed	0.35 V	1	2.8 V	Positive	SOT-23-5	Surface Mount	5.5 V	Enable	Over Current Over Temperature Short Circuit	150 mA	70 µA	125 °C	-40 °C
Texas Instruments LP5951MG-2.5/NOPB	60 dB	50 dB	55 µA	Fixed	0.35 V	1	2.5 V	Positive	SC-70-5	Surface Mount	5.5 V	Enable	Over Current Over Temperature Short Circuit	150 mA	70 µA	125 °C	-40 °C	5-TSSOP SC-70-5 SOT-353
Texas Instruments LP5951MG-3.0	60 dB	50 dB	55 µA	Fixed	0.35 V	1	3 V	Positive	SC-70-5	Surface Mount	5.5 V	Enable	Over Current Over Temperature Short Circuit	150 mA	70 µA	125 °C	-40 °C	5-TSSOP SC-70-5 SOT-353
Texas Instruments LP5951MG-1.5	60 dB	50 dB	55 µA	Fixed	0.35 V	1	1.5 V	Positive	SC-70-5	Surface Mount	5.5 V	Enable	Over Current Over Temperature Short Circuit	150 mA	70 µA	125 °C	-40 °C	5-TSSOP SC-70-5 SOT-353
Texas Instruments LP5951MG-1.3	60 dB	50 dB	55 µA	Fixed	0.35 V	1	1.3 V	Positive	SC-70-5	Surface Mount	5.5 V	Enable	Over Current Over Temperature Short Circuit	150 mA	70 µA	125 °C	-40 °C	5-TSSOP SC-70-5 SOT-353
Texas Instruments LP5951MG-1.8/NOPB	60 dB	50 dB	55 µA	Fixed	0.35 V	1	1.8 V	Positive	SC-70-5	Surface Mount	5.5 V	Enable	Over Current Over Temperature Short Circuit	150 mA	70 µA	125 °C	-40 °C	5-TSSOP SC-70-5 SOT-353
Texas Instruments LP5951MGX-3.3	60 dB	50 dB	55 µA	Fixed	0.35 V	1	3.3 V	Positive	SC-70-5	Surface Mount	5.5 V	Enable	Over Current Over Temperature Short Circuit	150 mA	70 µA	125 °C	-40 °C	5-TSSOP SC-70-5 SOT-353
Texas Instruments LP5951MF-3.0/NOPB	60 dB	50 dB	55 µA	Fixed	0.35 V	1	3 V	Positive	SOT-23-5	Surface Mount	5.5 V	Enable	Over Current Over Temperature Short Circuit	150 mA	70 µA	125 °C	-40 °C
Texas Instruments LP5951MG-3.3	60 dB	50 dB	55 µA	Fixed	0.35 V	1	3.3 V	Positive	SC-70-5	Surface Mount	5.5 V	Enable	Over Current Over Temperature Short Circuit	150 mA	70 µA	125 °C	-40 °C	5-TSSOP SC-70-5 SOT-353
Texas Instruments LP5951MG-3.3/NOPB	60 dB	50 dB	55 µA	Fixed	0.35 V	1	3.3 V	Positive	SC-70-5	Surface Mount	5.5 V	Enable	Over Current Over Temperature Short Circuit	150 mA	70 µA	125 °C	-40 °C	5-TSSOP SC-70-5 SOT-353

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
