Specification	43-01181

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating	4 A
Fastening Type	Threaded
Features	Board Guide
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Polyamide, Nylon 6/6, PA66
Material Flammability Rating	UL94
Mounting Feature	Bulkhead
Mounting Type	Panel Mount, Through Hole
Number of Positions	5
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Solder
Voltage Rating	60 V

43-0118 Series

Part	Features	Connector Type	Shell Size - Insert	Mounting Type	Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Shell Finish	Current Rating	Material Flammability Rating	Primary Material	Contact Finish - Mating	Shell Material	Shielding	Mounting Feature	Voltage Rating	Contact Material	Color	Fastening Type	Ingress Protection Description	Ingress Protection IP Rating	Termination	Insert Material	Number of Positions
McGill Microwave Systems 43-01185	Board Guide	Male Pins Receptacle	M12-5	Panel Mount Through Hole	A	85 °C	-30 °C	Nickel	4 A	UL94	Metal	Gold	Copper Zinc	Shielded	Bulkhead	60 V	Copper Zinc	Silver	Threaded	Dust Tight Waterproof	IP67	Solder	Nylon 6/6 PA66 Polyamide	5
McGill Microwave Systems 43-01186	Board Guide	Female Sockets Plug	M12-4	Panel Mount Through Hole	A	85 °C	-30 °C	Nickel	4 A	UL94 V-0	Metal	Gold	Copper Zinc	Unshielded	Bulkhead	250 V	Copper Zinc	Silver	Threaded	Dust Tight Waterproof	IP67	Solder	Glass Filled Nylon PA Polyamide	4
McGill Microwave Systems 43-01184	Board Guide	Male Pins Receptacle	M12-5	Panel Mount Through Hole	A	85 °C	-30 °C	Nickel	4 A	UL94	Metal	Gold	Copper Zinc	Unshielded	Bulkhead	60 V	Copper Zinc	Silver	Threaded	Dust Tight Waterproof	IP67	Solder	Nylon 6/6 PA66 Polyamide	5
McGill Microwave Systems 43-01189	Board Guide	Female Sockets Plug	M12-5	Panel Mount Through Hole	A	85 °C	-30 °C	Nickel	4 A	UL94 V-0	Metal	Gold	Copper Zinc	Shielded	Bulkhead	60 V	Copper Zinc	Silver	Threaded	Dust Tight Waterproof	IP67	Solder	Glass Filled Nylon PA Polyamide	5
McGill Microwave Systems 43-01180	Board Guide	Female Sockets Plug	M12-5	Panel Mount Through Hole	A	85 °C	-30 °C	Nickel	4 A	UL94	Metal	Gold	Copper Zinc	Unshielded	Bulkhead	60 V	Copper Zinc	Silver	Threaded	Dust Tight Waterproof	IP67	Solder	Nylon 6/6 PA66 Polyamide	5
McGill Microwave Systems 43-01181	Board Guide	Female Sockets Plug	M12-5	Panel Mount Through Hole	A	85 °C	-30 °C	Nickel	4 A	UL94	Metal	Gold	Copper Zinc	Shielded	Bulkhead	60 V	Copper Zinc	Silver	Threaded	Dust Tight Waterproof	IP67	Solder	Nylon 6/6 PA66 Polyamide	5
McGill Microwave Systems 43-01183	Board Guide	Male Pins Receptacle	M12-4	Panel Mount Through Hole	A	85 °C	-30 °C	Nickel	4 A	UL94	Metal	Gold	Copper Zinc	Shielded	Bulkhead	250 V	Copper Zinc	Silver	Threaded	Dust Tight Waterproof	IP67	Solder	Nylon 6/6 PA66 Polyamide	4

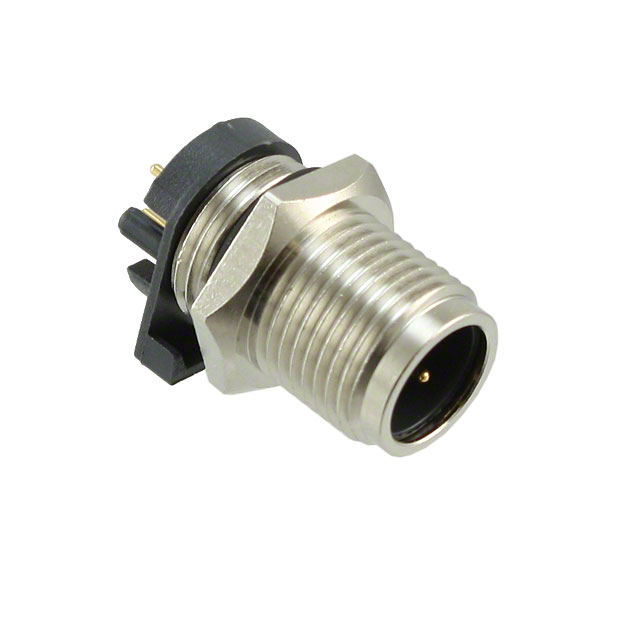

McGill Microwave Systems 43-01182	Board Guide	Male Pins Receptacle	M12-4	Panel Mount Through Hole	A	85 °C	-30 °C	Nickel	4 A	UL94	Metal	Gold	Copper Zinc	Unshielded	Bulkhead	250 V	Copper Zinc	Silver	Threaded	Dust Tight Waterproof	IP67	Solder	Nylon 6/6 PA66 Polyamide	4
McGill Microwave Systems 43-01187	Board Guide	Female Sockets Plug	M12-4	Panel Mount Through Hole	A	85 °C	-30 °C	Nickel	4 A	UL94 V-0	Metal	Gold	Copper Zinc	Shielded	Bulkhead	250 V	Copper Zinc	Silver	Threaded	Dust Tight Waterproof	IP67	Solder	Glass Filled Nylon PA Polyamide	4
