Specification	T2007-11TM

Actuator Type	Panel Disconnect
Approval Agency	cULus, CE
Circuit	DPST-NO/NC
Conduit Thread Size	M16
Current Rating	5 A, 2 A
Holding Force	612 gf
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-20 °C
Termination Style	Screw Terminal
Type	Non-Locking
Voltage Rating (AC)	100 VAC
Voltage Rating (DC)	24 VDC

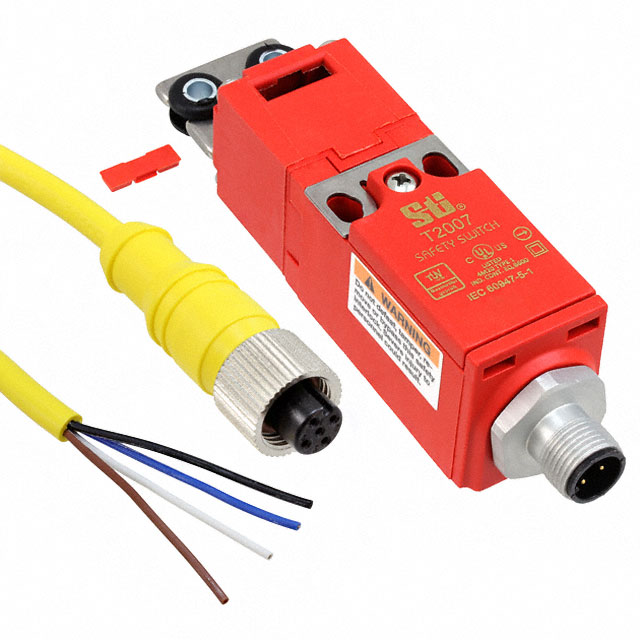

T2007 Series

Part	Current Rating	Conduit Thread Size	Termination Style	Approval Agency	Type	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Actuator Type	Circuit	Holding Force	Voltage Rating (AC)	Voltage Rating (DC)
Omron Automation and Safety T2007-11TM	2 A 5 A	M16	Screw Terminal	CE cULus	Non-Locking	-20 °C	80 °C	Dust Tight Waterproof	IP67	Panel Disconnect	DPST-NO/NC	612 gf	100 VAC	24 VDC
Omron Automation and Safety T2007-11F1	2 A 5 A	M16	Screw Terminal	CE cULus	Non-Locking	-20 °C	80 °C	Dust Tight Waterproof	IP67	Panel Disconnect	DPST-NO/NC	612 gf	100 VAC	24 VDC
Omron Automation and Safety T2007-02TM	2 A 5 A	M16	Screw Terminal	CE cULus	Non-Locking	-20 °C	80 °C	Dust Tight Waterproof	IP67	Panel Disconnect	DPST-NC	612 gf	100 VAC	24 VDC
Omron Automation and Safety T2007-02SM	2 A 5 A	M16	Screw Terminal	CE cULus	Non-Locking	-20 °C	80 °C	Dust Tight Waterproof	IP67	Panel Disconnect	DPST-NC	612 gf	100 VAC	24 VDC
Omron Automation and Safety T2007-11SCC0
Omron Automation and Safety T2007-11TCC5	2 A 5 A		Cable with Connector (M12)	CE cULus	Non-Locking	-20 °C	80 °C	Dust Tight Waterproof	IP67	Panel Disconnect	DPST-NO/NC	612 gf	100 VAC	24 VDC
Omron Automation and Safety T2007-02TCC0
Omron Automation and Safety T2007-11TCC0
Omron Automation and Safety T2007-02SCG
Omron Automation and Safety T2007-02TCC5	2 A 5 A		Cable with Connector (M12)	CE cULus	Non-Locking	-20 °C	80 °C	Dust Tight Waterproof	IP67	Panel Disconnect	DPST-NC	612 gf	100 VAC	24 VDC
