Q-1S06900081.5M

Active

Amphenol Custom Cable

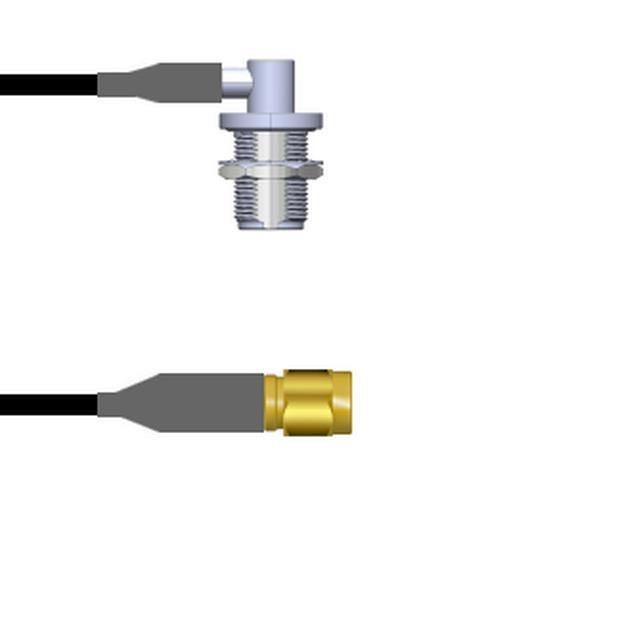

CBL ASSY RPSMA-NTYPE PL-JK 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1S06900081.5M

Active

Amphenol Custom Cable

CBL ASSY RPSMA-NTYPE PL-JK 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1S06900081.5M

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	RP-SMA to N-Type

Q-1S0690 Series

Part	Overall Impedance	Color	2nd Connector Mounting Type	1st Contact Gender	Features	2nd Contact Gender	1st Connector	Frequency - Max [Max]	1st Connector Mounting Type	2nd Connector Mounting Feature	Cable Type	Length	Length	Length	Style	2nd Connector	Length [x]	Length [x]
Amphenol Custom Cable Q-1S0690008072i	50 Ohms	Black	Panel Mount	Female	Shielded	Female	RP-SMA Plug	6000 MHz	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-58	6 ft	72 in	1.8 m	RP-SMA to N-Type	N-Type Jack Right Angle
Amphenol Custom Cable Q-1S0690008.25M	50 Ohms	Black	Panel Mount	Female	Shielded	Female	RP-SMA Plug	6000 MHz	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-58				RP-SMA to N-Type	N-Type Jack Right Angle	9.843 "	250 mm
Amphenol Custom Cable Q-1S0690008002M	50 Ohms	Black	Panel Mount	Female	Shielded	Female	RP-SMA Plug	6000 MHz	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-58	6.6 ft	78.7 in	2 m	RP-SMA to N-Type	N-Type Jack Right Angle
Amphenol Custom Cable Q-1S0690008001M	50 Ohms	Black	Panel Mount	Female	Shielded	Female	RP-SMA Plug	6000 MHz	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-58	3.3 ft	39.4 in	1 m	RP-SMA to N-Type	N-Type Jack Right Angle
Amphenol Custom Cable Q-1S06900081.5M	50 Ohms	Black	Panel Mount	Female	Shielded	Female	RP-SMA Plug	6000 MHz	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-58	4.9 ft	59.1 in	1.5 m	RP-SMA to N-Type	N-Type Jack Right Angle
Amphenol Custom Cable Q-1S0690008.75M	50 Ohms	Black	Panel Mount	Female	Shielded	Female	RP-SMA Plug	6000 MHz	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-58		29.53 "	750 mm	RP-SMA to N-Type	N-Type Jack Right Angle
Amphenol Custom Cable Q-1S0690008036i	50 Ohms	Black	Panel Mount	Female	Shielded	Female	RP-SMA Plug	6000 MHz	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-58		36 in	91.44 cm	RP-SMA to N-Type	N-Type Jack Right Angle
Amphenol Custom Cable Q-1S06900082.5M	50 Ohms	Black	Panel Mount	Female	Shielded	Female	RP-SMA Plug	6000 MHz	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-58	8.2 '	98.4 in	2.5 m	RP-SMA to N-Type	N-Type Jack Right Angle
Amphenol Custom Cable Q-1S0690008003M	50 Ohms	Black	Panel Mount	Female	Shielded	Female	RP-SMA Plug	6000 MHz	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-58	9.8 '	118.1 in	3 m	RP-SMA to N-Type	N-Type Jack Right Angle
Amphenol Custom Cable Q-1S0690008009i	50 Ohms	Black	Panel Mount	Female	Shielded	Female	RP-SMA Plug	6000 MHz	Free Hanging (In-Line)	Bulkhead - Front Side Nut	RG-58		9 "	228.6 mm	RP-SMA to N-Type	N-Type Jack Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 97.12
		25	$ 91.69
		50	$ 86.26
		100	$ 81.61
		250	$ 77.73

Description

General part information

Q-1S0690 Series

Cable Assembly Coaxial RP-SMA to N-Type RG-58 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
