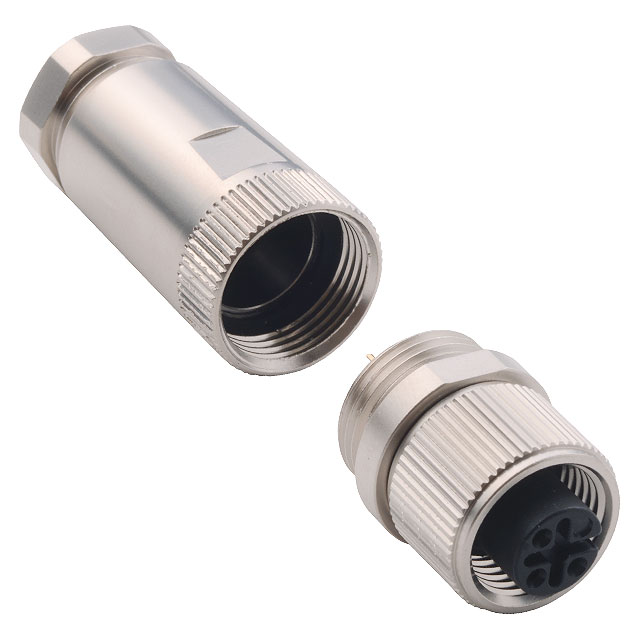

858-L03-203RKT4

Active

MH Connectors

CONN PLUG FMALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

MH Connectors

CONN PLUG FMALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	858-L03-203RKT4

Backshell Material, Plating	Aluminum Alloy, Nickel
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Brass
Current Rating (Amps)	4 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	M12-3
Voltage Rating	250 VDC

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Voltage Rating	Primary Material	Material Flammability Rating	Shell Material	Backshell Material, Plating	Color	Shell Finish	Current Rating (Amps)	Contact Material	Ingress Protection	Mounting Type	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Shell Size - Insert
MH Connectors 858-L03-203RKT4	Female Sockets Plug	85 °C	-40 °C	Polybutylene Terephthalate (PBT)	250 VDC	Metal	UL94 V-0	Aluminum Alloy	Aluminum Alloy Nickel	Silver	Nickel	4 A	Brass	IP67 - Dust Tight Waterproof	Free Hanging (In-Line)	A	10 çin	0.25 çm	Gold	M12-3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 25.27

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup
