Specification	SF1521-60107

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Plug Diameter	2.92 mm
Connector Type	Jack, Female Socket
Contact Termination	Compression
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Features	Mounting Hardware
Frequency - Max	40 Gbps
Housing Color	Silver
Impedance	50 Ohm
Includes	Screws, Connector
Includes Total Count	3 pcs
Mating Cycles	500 cycles
Mounting Type	End Launch, Board Edge
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Screw

SF1521 Series

Part	Body Material	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Mating Cycles	Impedance	Center Contact Material	Connector Type	Mounting Type	Contact Termination	Housing Color	Connector Plug Diameter	Mounting Feature	Fastening Type	Shield Termination	Number of Ports	Frequency - Max	Dielectric Material	Includes	Includes Total Count	Features	Cable Group	Cable Group Diameter (Default)	Insertion Loss

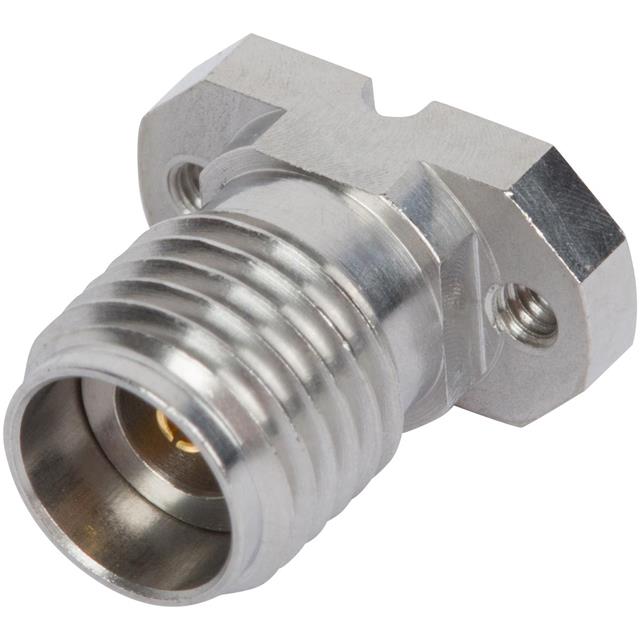

McGill Microwave Systems SF1521-60115	Stainless Steel	-65 °C	165 °C	Gold	500 cycles	50 Ohm	Beryllium Copper	Female Socket Jack	Surface Mount	Compression	Silver	2.92 mm	Flange	Threaded	Screw	1	40 Gbps
McGill Microwave Systems SF1521-60107	Stainless Steel	-65 °C	165 °C	Gold	500 cycles	50 Ohm	Beryllium Copper	Female Socket Jack	Board Edge End Launch	Compression	Silver	2.92 mm		Threaded	Screw		40 Gbps	Polytetrafluoroethylene (PTFE)	Connector Screws	3 pcs	Mounting Hardware

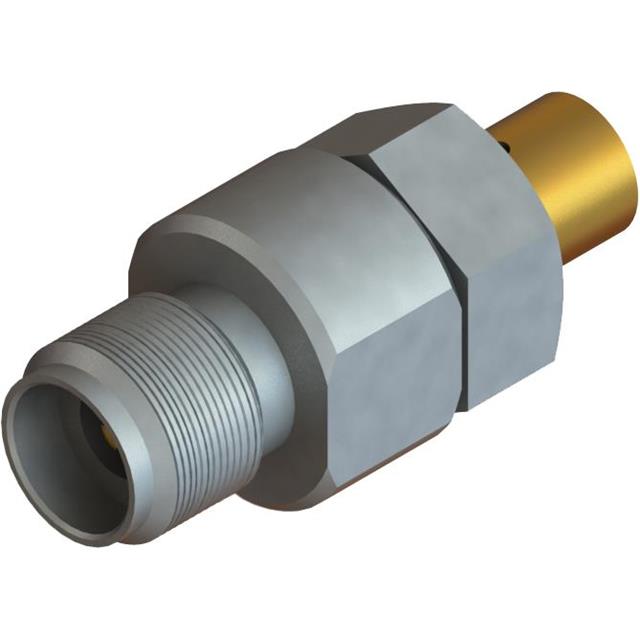

McGill Microwave Systems SF1521-60042	Stainless Steel			Gold	500 cycles	50 Ohm	Beryllium Copper	Female Socket Jack	Free Hanging (In-Line)	Solder	Silver	2.92 mm		Threaded	Solder	1	34 GHz	Polyetherimide (PEI)				RG-402	0.141 in

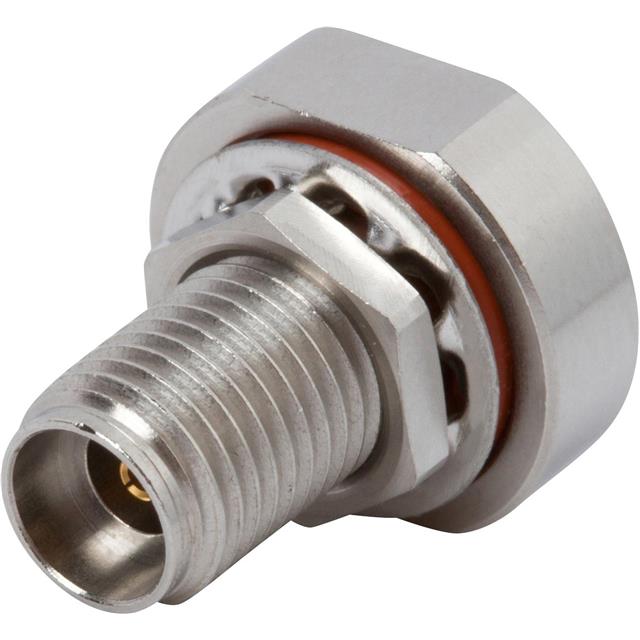

McGill Microwave Systems SF1521-60025	Stainless Steel			Gold	500 cycles	50 Ohm	Beryllium Copper	Female Socket Jack	Free Hanging (In-Line)	Solder	Silver	2.92 mm		Threaded	Solder	1	40 Gbps	Polyetherimide (PEI)				RG-405	0.085 in

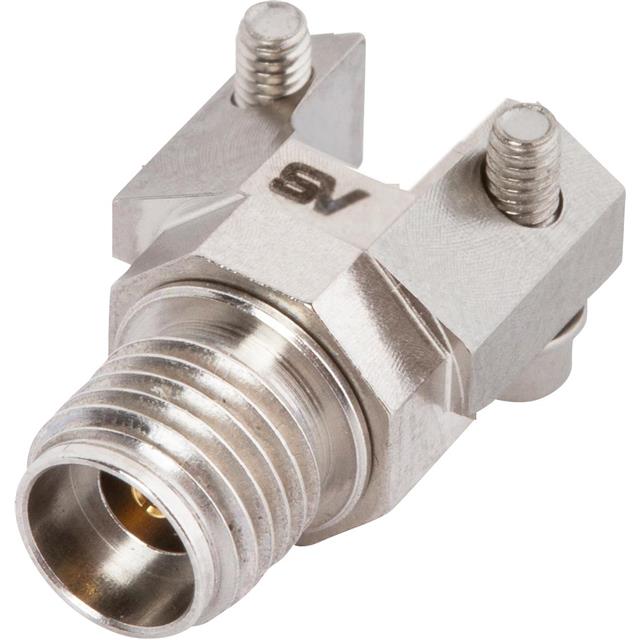

McGill Microwave Systems SF1521-60150	Stainless Steel	-65 °C	165 °C	Gold	500 cycles	50 Ohm	Beryllium Copper	Female Socket Jack	Board Edge End Launch	Compression	Silver	2.92 mm		Threaded	Screw	1	40 Gbps		Connector Screws	3 pcs	Mounting Hardware			0.253 dB
McGill Microwave Systems SF1521-60124	Stainless Steel	-65 °C	165 °C	Gold	500 cycles	50 Ohm	Beryllium Copper	Female Socket Jack	Surface Mount	Compression	Silver	2.92 mm	Flange	Threaded	Screw	1	40 Gbps
McGill Microwave Systems SF1521-60061-1S	Stainless Steel	-65 °C	165 °C	Gold	500 cycles	50 Ohm	Beryllium Copper	Female Socket Jack	Surface Mount	Compression	Silver	2.92 mm	Flange	Threaded	Screw	1	40 Gbps	Polyetherimide (PEI)	Connector Screws	3 pcs	Mounting Hardware
McGill Microwave Systems SF1521-60124-1S	Stainless Steel	-65 °C	165 °C	Gold	500 cycles	50 Ohm	Beryllium Copper	Female Socket Jack	Surface Mount	Compression	Silver	2.92 mm	Flange	Threaded	Screw	1	40 Gbps		Connector Screws	3 pcs	Mounting Hardware
