796271-1
ActiveCIRCULAR SHELL, CPC SERIES 1, SOLID SHELL STRAIGHT PLUG, AMP CPC SERIES CIRCULAR CONNECTORS
796271-1
ActiveCIRCULAR SHELL, CPC SERIES 1, SOLID SHELL STRAIGHT PLUG, AMP CPC SERIES CIRCULAR CONNECTORS
Description
General part information
Circular Plastic Connectors Series 1 Series

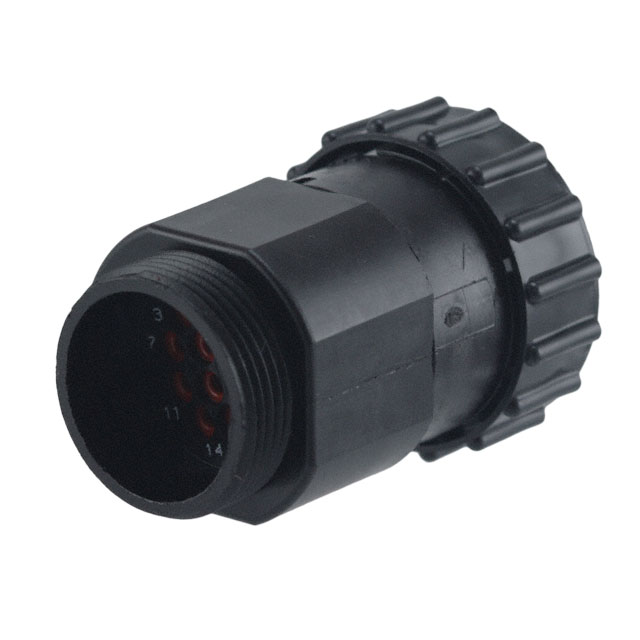

The 796271-1 is a 14-position straight Free-hanging Plug Assembly with pin type contacts, UL94V-0-rated black glass-filled nylon housing and 17-14 insert arrangement. The reverse sex sealed circular plastic connector has keyed mating alignment, threaded coupling mating retention and peripheral/wire entry seal. The new sealed one-piece circular plastic connector is the latest product innovation to the sealed CPC product family. This design allows for easy assembly. The housing and the seal is attached. A newly designed wire entry seal protects the rear of the connector and a peripheral seal protects the connector interface. Simply crimp the contact onto a wire and insert the crimped wire contact through the seal and into the housing cavity.
Technical Specifications
Parameters and characteristics for this part
| Specification | 796271-1 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 16 S |
| Contact Type | Crimp |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Housing Color | Black |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 14 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | A, Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Polyamide (PA) |
| Shell Size - Insert Length | 17 mm |
| Shell Size - Insert Width | 14 mm |
| Shielding | Unshielded |
| Type | For Male Pins |
