Specification	QRM8-052-05.0-L-D-A-GP

Connector Type	Array, Male Pins
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Ground Bus (Plane), Board Guide
Height Above Board	0.307 in
Mated Stacking Height Options	12mm, 10mm
Mounting Type	Surface Mount
Number of Positions	104
Number of Rows	2
Pitch	0.031 in

QRM8 Series

Part	Connector Type	Pitch	Number of Rows	Contact Finish	Number of Positions	Contact Finish Thickness	Mounting Type	Features	Mated Stacking Height Options	Height Above Board
Samtec Inc. QRM8-026-01-L-RA-GP	Array Male Pins	0.031 in	2	Gold	52	10 Ąin	Right Angle Surface Mount	Board Guide Ground Bus (Plane)
Samtec Inc. QRM8-052-05.0-L-D-A	Array Male Pins	0.031 in	2	Gold	104	10 Ąin	Surface Mount	Board Guide Ground Bus (Plane)	10mm 12mm	0.307 in
Samtec Inc. QRM8-026-07.0-L-D-A-K-TR	Array Male Pins	0.031 in	2	Gold	52	10 Ąin	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	12mm 14mm	0.385 in
Samtec Inc. QRM8-052-05.0-L-D-A-GP-K	Array Male Pins	0.031 in	2	Gold	104	10 Ąin	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	10mm 12mm	0.307 in
Samtec Inc. QRM8-052-05.0-L-D-A-GP	Array Male Pins	0.031 in	2	Gold	104	10 Ąin	Surface Mount	Board Guide Ground Bus (Plane)	10mm 12mm	0.307 in
Samtec Inc. QRM8-052-01-S-RA-GP	Array Male Pins	0.031 in	2	Gold	104		Right Angle Surface Mount	Board Guide Ground Bus (Plane)
Samtec Inc. QRM8-026-07.0-L-D-A-K	Array Male Pins	0.031 in	2	Gold	52	10 Ąin	Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	12mm 14mm	0.385 in
Samtec Inc. QRM8-026-07.0-L-D-A-GP-TR	Array Male Pins	0.031 in	2	Gold	52	10 Ąin	Surface Mount	Board Guide Ground Bus (Plane)	12mm 14mm	0.385 in

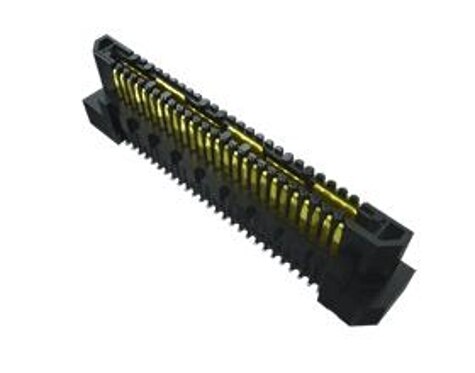

Samtec Inc. QRM8-018-5.0-S-D-DP-A-GP-K-TR	Differential Pair Array MALE	0.031 in	2	Gold	36		Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	10mm 12mm	0.307 in
Samtec Inc. QRM8-018-05.0-S-D-DP-A-GP-K	Differential Pair Array MALE	0.031 in	2	Gold	36		Surface Mount	Board Guide Ground Bus (Plane) Pick and Place	10mm 12mm	0.307 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

QRM8-052-05.0-L-D-A-GP | Datasheet
