216400 Series

Mega-Fit Female-to-Mega-Fit Female Off-the-Shelf (OTS) Cable Assembly, Single Row, 150.00mm Length, Tin Plated, 3 Circuits, Black

Part	Cable Termination	Number of Rows	Connector Type	Contact Finish Thickness	Color	Length	Number of Positions	Contact Finish	Shielding	Pitch - Connector	Features
Molex 2164001041	Crimp	1	Socket to Socket	40 µin	Black Individual	0.492 ft	4	Tin	Unshielded	0.224 in	Latch Lock
Molex 2164001023	Crimp	1	Socket to Socket	40 µin	Black Individual	1.97 ft	2	Tin	Unshielded	0.224 in	Latch Lock
Molex 2164001042	Crimp	1	Socket to Socket	40 µin	Black Individual	0.984 ft	4	Tin	Unshielded	0.224 in	Latch Lock
Molex 2164001021	Crimp	1	Socket to Socket	40 µin	Black Individual	0.492 ft	2	Tin	Unshielded	0.224 in	Latch Lock
Molex 2164001033	Crimp	1	Socket to Socket	40 µin	Black Individual	1.97 ft	3	Tin	Unshielded	0.224 in	Latch Lock
Molex 2164001063	Crimp	1	Socket to Socket	40 µin	Black Individual	1.97 ft	6	Tin	Unshielded	0.224 in	Latch Lock

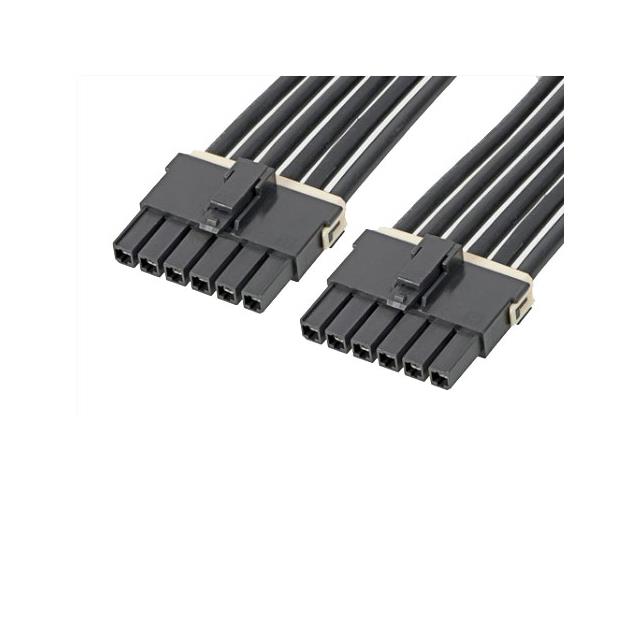

Molex 2164001062	Crimp	1	Socket to Socket	40 µin	Black Individual	0.984 ft	6	Tin	Unshielded	0.224 in	Latch Lock
Molex 2164001061	Crimp	1	Socket to Socket	40 µin	Black Individual	0.492 ft	6	Tin	Unshielded	0.224 in	Latch Lock
Molex 2164001022	Crimp	1	Socket to Socket	40 µin	Black Individual	0.984 ft	2	Tin	Unshielded	0.224 in	Latch Lock
Molex 2164001031	Crimp	1	Socket to Socket	40 µin	Black Individual	0.492 ft	3	Tin	Unshielded	0.224 in	Latch Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
