M1YXK-6036R
Active3M (TC)
IDC CABLE - MPD60K/MC60M/X
Deep-Dive with AI
Search across all available documentation for this part.
M1YXK-6036R
Active3M (TC)
IDC CABLE - MPD60K/MC60M/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M1YXK-6036R |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Plug to Cable |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Polarizing Key, Strain Relief, Flange |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 42.36 | |
| 10 | $ 32.77 | |||
| 25 | $ 29.72 | |||
| 50 | $ 27.67 | |||
| 100 | $ 25.80 | |||
| 250 | $ 23.61 | |||
Description
General part information
M1YXK Series

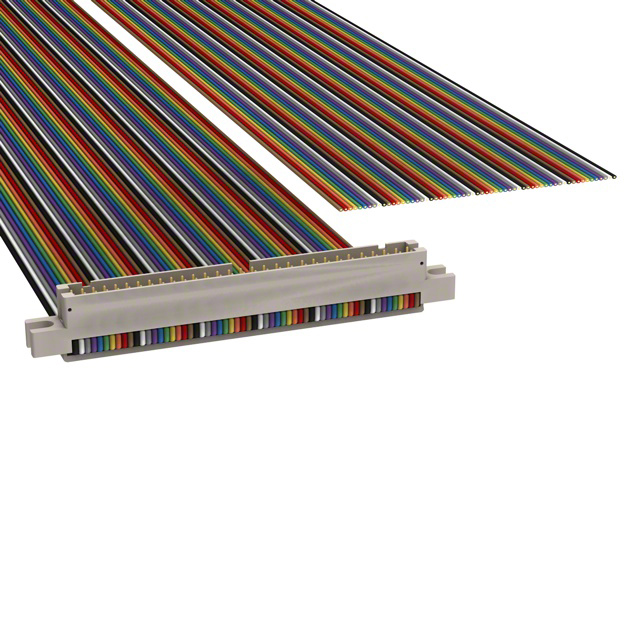

60 Position Cable Assembly Rectangular Plug to Cable 3.00' (914.40mm)
