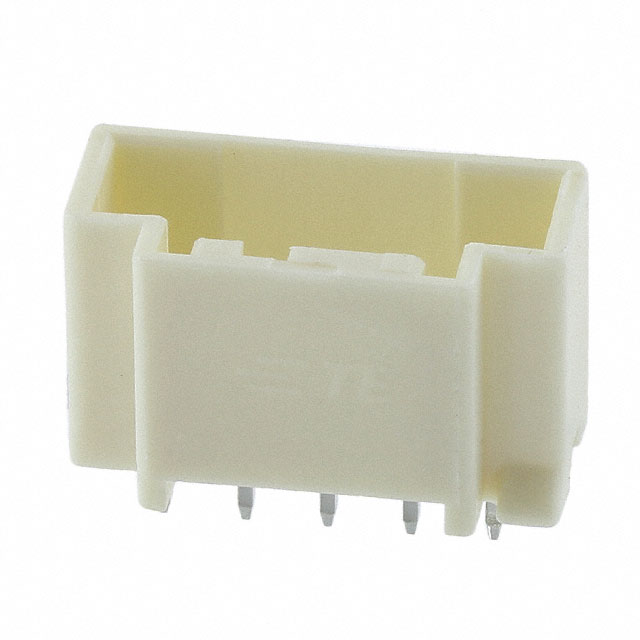

5-1971798-1

Active

TE Connectivity Raychem Cable Protection

CONN SHROUDED HEADER (4 SIDES) HDR 5 POS 2.5MM SOLDER ST TOP ENTRY THRU-HOLE BAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Retention force between header assembly & PCB of Grace Inertia Connector 2.5 Mark II +4

5-1971798-1

Active

TE Connectivity Raychem Cable Protection

CONN SHROUDED HEADER (4 SIDES) HDR 5 POS 2.5MM SOLDER ST TOP ENTRY THRU-HOLE BAG

Deep-Dive with AI

DocumentsDatasheet Retention force between header assembly & PCB of Grace Inertia Connector 2.5 Mark II +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5-1971798-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Height [z]	0.346 in
Insulation Height [z]	8.8 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	50 V

GRACE INERTIA 2.5 Series

Headers & Wire Housings GI2.5 HDR ASS 6P RED NO BOSS TAPE

Part	Contact Finish	Contact Termination	Wire Gauge [Max]	Wire Gauge [Min]	Pin or Socket	Fastening Type	Contact Type	Insulation Color	Mounting Type	Number of Rows	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Termination	Number of Positions Loaded	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Applications	Contact Shape	Insulation Material	Style	Connector Type	Voltage Rating	Features	Material Flammability Rating	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Insulation Height	Insulation Height	Color	Note	Pitch [x]	Pitch [x]
TE Connectivity Raychem Cable Protection 1871859-1	Tin	Crimp	28 AWG	22 AWG	Socket
TE Connectivity Raychem Cable Protection 5-1971798-1						Latch Holder	Male Pin	Natural	Through Hole	1	Varies by Wire Gauge	0.346 in	8.8 mm	Kinked Pin Solder	All	Shrouded - 4 Wall	-30 ░C	105 ░C	Copper Alloy	Tin	2.5 mm	0.098 in	General Purpose	Square	Thermoplastic	Board to Cable/Wire	Header	50 V	Board Guide	UL94 V-0
TE Connectivity Raychem Cable Protection 2-1747067-4						Latch Holder	Tab	Blue	Through Hole	1	Varies by Wire Gauge			Kinked Pin Solder	All	Shrouded - 4 Wall	-30 ░C	105 ░C	Brass	Tin	2.5 mm	0.098 in	General Purpose Industrial	Rectangular	Polyamide (PA66) Nylon 6/6 Glass Filled	Board to Cable/Wire	Header	50 V	Board Guide	UL94 V-0	4	0.118 in	3 mm	Gold	11.3 mm	0.445 in
TE Connectivity Raychem Cable Protection 1747063-1	Gold	Crimp	28 AWG	22 AWG	Socket
TE Connectivity Raychem Cable Protection 5-1971800-2						Latch Holder	Male Pin	Blue	Through Hole	1	Varies by Wire Gauge	0.346 in	8.8 mm	Kinked Pin Solder	All	Shrouded - 4 Wall	-30 ░C	105 ░C	Copper Alloy	Tin	2.5 mm	0.098 in	General Purpose	Square	Thermoplastic	Board to Cable/Wire	Header	50 V	Board Guide	UL94 V-0
TE Connectivity Raychem Cable Protection 5-1971793-4		Crimp				Latch Lock	Female Socket		Free Hanging (In-Line)	1							-30 ░C	105 ░C							Polyamide (PA66) Nylon 6/6		Plug										Yellow	Contacts Not Included	0.098 in	2.5 mm
TE Connectivity Raychem Cable Protection 5-1971793-2		Crimp				Latch Lock	Female Socket		Free Hanging (In-Line)	1							-30 ░C	105 ░C							Polyamide (PA66) Nylon 6/6		Plug										Blue	Contacts Not Included	0.098 in	2.5 mm
TE Connectivity Raychem Cable Protection 6-1971800-4						Latch Holder	Male Pin	Yellow	Through Hole	1	Varies by Wire Gauge	0.346 in	8.8 mm	Kinked Pin Solder	All	Shrouded - 4 Wall	-30 ░C	105 ░C	Copper Alloy	Tin	2.5 mm	0.098 in	General Purpose	Square	Thermoplastic	Board to Cable/Wire	Header	50 V	Board Guide	UL94 V-0	6
TE Connectivity Raychem Cable Protection 3-1971800-1						Latch Holder	Male Pin	Natural	Through Hole	1	Varies by Wire Gauge	0.346 in	8.8 mm	Kinked Pin Solder	All	Shrouded - 4 Wall	-30 ░C	105 ░C	Copper Alloy	Tin	2.5 mm	0.098 in	General Purpose	Square	Thermoplastic	Board to Cable/Wire	Header	50 V	Board Guide	UL94 V-0
TE Connectivity Raychem Cable Protection 3-1747066-3		Crimp				Latch Lock	Female Socket		Free Hanging (In-Line)	1							-30 ░C	105 ░C							Polyamide (PA66) Nylon 6/6 Glass Filled		Plug										Yellow	Contacts Not Included	0.098 in	2.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.31
		10	$ 0.27
		100	$ 0.24
		900	$ 0.19
		1800	$ 0.17
		5400	$ 0.15
		10800	$ 0.14
Newark	Each	5000	$ 0.15

Description

General part information

GRACE INERTIA 2.5 Series

Headers & Wire Housings GI2.5 HDR ASS 6P RED NO BOSS TAPE

Documents

Technical documentation and resources

Datasheet

Retention force between header assembly & PCB of Grace Inertia Connector 2.5 Mark II

Product And Material Test Reports
