Specification	EX-L262-J

Adjustment Type	Adjustable
Cable Length	9.13 in
Connection Method	Cable
Ingress Protection	IP67
Light Source	Red Laser Diode
Light Source Wavelength (Red Laser Diode)	650 nm
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-10 °C
Output Configuration	NPN - Open Collector
Response Time	500 µs
Sensing Distance Maximum	2.756 "
Sensing Distance Minimum	0.787 "
Sensing Method	Convergent, Reflective
Voltage - Supply (Maximum)	24 VAC
Voltage - Supply (Minimum)	12 VDC

EX-L262 Series

Part	Sensing Method	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Connection Method	Response Time	Cable Length	Operating Temperature (Min)	Operating Temperature (Max)	Light Source Wavelength (Red Laser Diode)	Light Source	Adjustment Type	Sensing Distance Maximum	Sensing Distance Minimum	Ingress Protection	Output Configuration
Panasonic Industrial Automation Sales EX-L262-P	Convergent Reflective	12 VDC	24 VAC	Cable	500 µs	78.74 in	-10 °C	55 °C	650 nm	Red Laser Diode	Adjustable	2.756 "	0.787 "	IP67	PNP - Open Collector
Panasonic Industrial Automation Sales EX-L262-J	Convergent Reflective	12 VDC	24 VAC	Cable	500 µs	9.13 in	-10 °C	55 °C	650 nm	Red Laser Diode	Adjustable	2.756 "	0.787 "	IP67	NPN - Open Collector

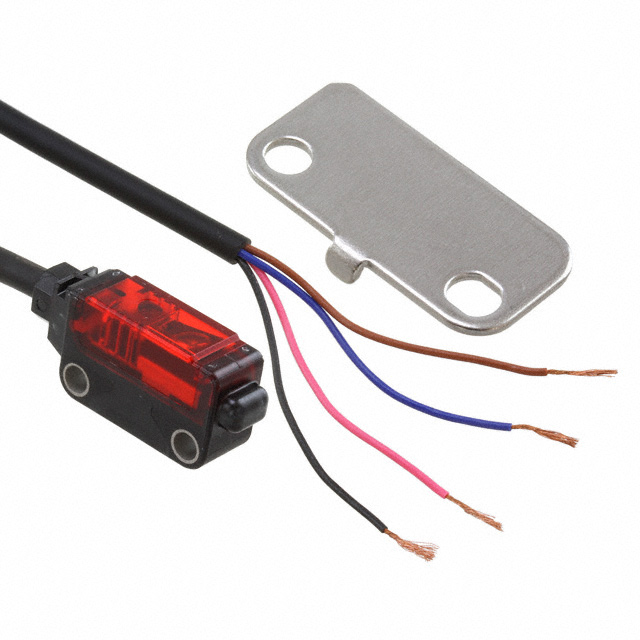

Panasonic Industrial Automation Sales EX-L262-P-C5	Convergent Reflective	12 VDC	24 VAC	Cable	500 µs	78.74 in	-10 °C	55 °C	650 nm	Red Laser Diode	Adjustable	2.756 "	0.787 "	IP67	PNP - Open Collector
Panasonic Industrial Automation Sales EX-L262-C5	Convergent Reflective	12 VDC	24 VAC	Cable	500 µs	78.74 in	-10 °C	55 °C	650 nm	Red Laser Diode	Adjustable	2.756 "	0.787 "	IP67	NPN - Open Collector
Panasonic Industrial Automation Sales EX-L262-P-J	Convergent Reflective	12 VDC	24 VAC	Cable	500 µs	9.13 in	-10 °C	55 °C	650 nm	Red Laser Diode	Adjustable	2.756 "	0.787 "	IP67	PNP - Open Collector
