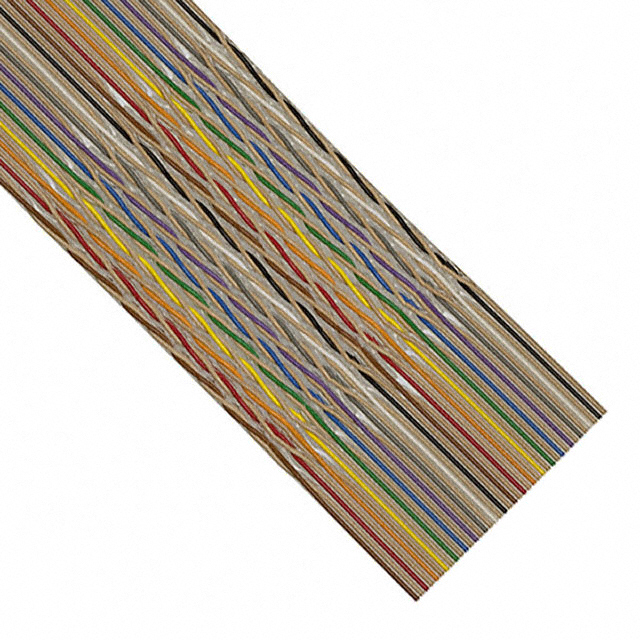

C1700/40 100

Active

3M (TC)

CBL RIBN 40COND TWIST-PAIR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cables & Accessories Selection Guide

C1700/40 100

Active

3M (TC)

CBL RIBN 40COND TWIST-PAIR

Deep-Dive with AI

DocumentsDatasheet Cables & Accessories Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C1700/40 100

Cable Type	Flat Twisted Pair
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable
Insulation Resistance	1 GOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Multiple
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	40
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 20462
Ribbon Thickness	0.08 in
Ribbon Thickness	2.03 mm
Ribbon Width [y]	50.8 mm
Ribbon Width [y]	2 in
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

C1700 Series

Part	Pitch [x]	Pitch [x]	Number of Conductors	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Features	Cable Type	Jacket Color	Ratings	Ribbon Thickness	Ribbon Thickness	Jacket (Insulation) Material	Length [x]	Length [x]	Insulation Resistance	Voltage	Ribbon Width [custom]	Ribbon Width [custom]	Wire Gauge	Conductor Material	Ribbon Width	Ribbon Width	Ribbon Width [y]	Ribbon Width [y]
3M (TC) C1700/10 315	0.05 in	1.27 mm	10	Unshielded	-20 C	105 ░C	7	36 AWG	Zippable	Flat Twisted Pair	Multiple	UL Style 20462	0.08 in	2.03 mm	Poly-Vinyl Chloride (PVC)	315 ft	96.01 m	1 GOhms	300 V	0.5 "	12.7 mm	28 AWG	Copper Tinned
3M (TC) C1700/20 100	0.05 in	1.27 mm	20	Unshielded	-20 C	105 ░C	7	36 AWG	Zippable	Flat Twisted Pair	Multiple	UL Style 20462	0.08 in	2.03 mm	Poly-Vinyl Chloride (PVC)	100 ft	30.48 m	1 GOhms	300 V			28 AWG	Copper Tinned	1 in	25.4 mm
3M (TC) C1700/40 100	0.05 in	1.27 mm	40	Unshielded	-20 C	105 ░C	7	36 AWG	Zippable	Flat Twisted Pair	Multiple	UL Style 20462	0.08 in	2.03 mm	Poly-Vinyl Chloride (PVC)	100 ft	30.48 m	1 GOhms	300 V			28 AWG	Copper Tinned			50.8 mm	2 in
3M (TC) C1700/10 100SF	0.05 in	1.27 mm	10	Unshielded	-20 C	105 ░C	7	36 AWG	Splice Free Zippable	Flat Twisted Pair	Multiple	UL Style 20462	0.08 in	2.03 mm	Poly-Vinyl Chloride (PVC)	100 ft	30.48 m	1 GOhms	300 V	0.5 "	12.7 mm	28 AWG	Copper Tinned
3M (TC) C1700/20 100SF	0.05 in	1.27 mm	20	Unshielded	-20 C	105 ░C	7	36 AWG	Splice Free Zippable	Flat Twisted Pair	Multiple	UL Style 20462	0.08 in	2.03 mm	Poly-Vinyl Chloride (PVC)	100 ft	30.48 m	1 GOhms	300 V			28 AWG	Copper Tinned	1 in	25.4 mm
3M (TC) C1700/10 100	0.05 in	1.27 mm	10	Unshielded	-20 C	105 ░C	7	36 AWG		Flat Twisted Pair	Multiple	UL Style 20462	0.08 in	2.03 mm	Poly-Vinyl Chloride (PVC)	100 ft	30.48 m	1 GOhms	300 V	0.5 "	12.7 mm	28 AWG	Copper Tinned
3M (TC) C1700/48TN 100	0.05 in	1.27 mm	48	Unshielded	-20 C	105 ░C	7	36 AWG	Zippable	Flat Twisted Pair	Multiple	UL Style 20462	0.08 in	2.03 mm	Poly-Vinyl Chloride (PVC)	100 ft	30.48 m	1 GOhms	300 V			28 AWG	Copper Tinned
3M (TC) C1700/40TB 100	0.05 in	1.27 mm	40	Unshielded	-20 C	105 ░C	7	36 AWG	Zippable	Flat Twisted Pair	Multiple	UL Style 20462	0.08 in	2.03 mm	Poly-Vinyl Chloride (PVC)	100 ft	30.48 m	1 GOhms	300 V			28 AWG	Copper Tinned			50.8 mm	2 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	300	$ 2.80

Description

General part information

C1700 Series

Flat Ribbon Cable Multiple 40 (20 Pair Twisted) Conductors 0.050" (1.27mm) Flat Twisted Pair 100.0' (30.48m)
