STM32F429I-DISC1
ActiveDISCOVERY KIT WITH STM32F429ZI MCU * NEW ORDER CODE STM32F429I-DISC1 (REPLACES STM32F429I-DISCO)
Deep-Dive with AI
Search across all available documentation for this part.
STM32F429I-DISC1
ActiveDISCOVERY KIT WITH STM32F429ZI MCU * NEW ORDER CODE STM32F429I-DISC1 (REPLACES STM32F429I-DISCO)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STM32F429I-DISC1 | 32F429IDISCOVERY Series |
|---|---|---|
| - | - | |
| Board Type | Evaluation Platform | Evaluation Platform |
| Contents | Board(s), LCD | Board(s), LCD |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| Mounting Type | Fixed | Fixed |
| Platform | Discovery | Discovery |
| Suggested Programming Environment | Mbed-Enabled, STM32Cube | Mbed-Enabled, STM32Cube |
| Type | MCU 32-Bit | MCU 32-Bit |
| Utilized IC / Part | STM32F429 | STM32F429 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
32F429IDISCOVERY Series
Discovery kit with STM32F429ZI MCU * New order code STM32F429I-DISC1 (replaces STM32F429I-DISCO)
| Part | Platform | Board Type | Suggested Programming Environment | Contents | Core Processor | Mounting Type | Utilized IC / Part | Type |
|---|---|---|---|---|---|---|---|---|
STMicroelectronics STM32F429I-DISC1 | Discovery | Evaluation Platform | Mbed-Enabled, STM32Cube | Board(s), LCD | ARM® Cortex®-M4 | Fixed | STM32F429 | MCU 32-Bit |
STMicroelectronics STM32F429I-DISC1 | ||||||||
STMicroelectronics STM32F429I-DISC1 | ||||||||
STMicroelectronics STM32F429I-DISC1 |
Description
General part information
32F429IDISCOVERY Series

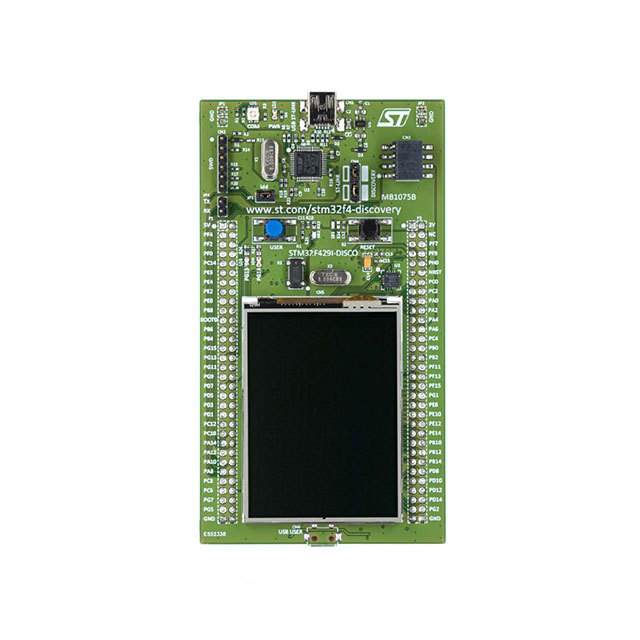

With the STM32F429 Discovery kit (32F429IDISCOVERY), users develop applications easily on the STM32F429 high-performance MCUs with Arm®Cortex®‑M4 core. The Discovery kit includes a 2.4" QVGA TFT LCD, an external 64-Mbit SDRAM, an ST‑MEMS gyroscope, a USB OTG Micro-AB connector, LEDs, and push-buttons.
An embedded ST-LINK/V2-B debugger/programmer is included. The board comes with the STM32 comprehensive free software libraries and examples available with the STM32CubeF4 MCU Package.
