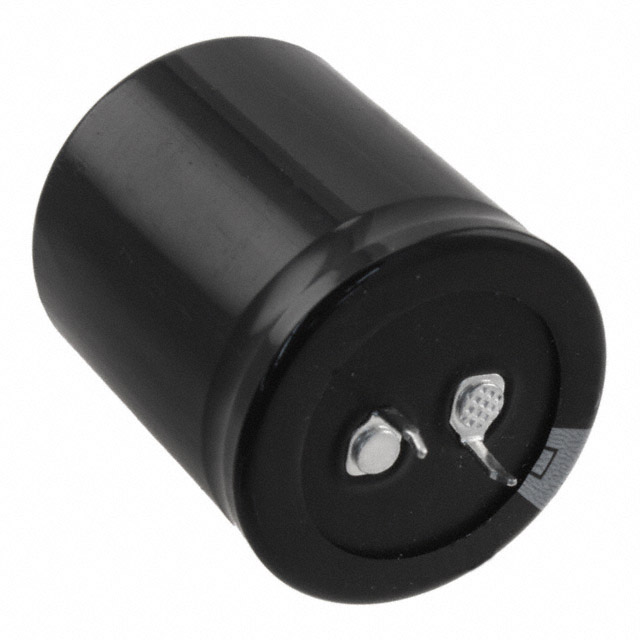

ELH109M050AS5AA

Active

KEMET

CAP, 10000ΜF, 50V, ALU ELEC, SNAP-IN

Search across all available documentation for this part.

Active

KEMET

CAP, 10000ΜF, 50V, ALU ELEC, SNAP-IN

Technical Specifications

Parameters and characteristics for this part

Specification	ELH109M050AS5AA

Applications	General Purpose
Capacitance	10000 µF
Height - Seated (Max) [Max] [z]	1.85 in
Height - Seated (Max) [Max] [z]	47 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	5.8 A
Ripple Current @ Low Frequency	5 A
Size / Dimension [diameter]	30 mm
Size / Dimension [diameter]	1.181 inches
Tolerance	20 %
Voltage - Rated	50 VDC

Part	Applications	Capacitance	Tolerance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Voltage - Rated	Polarization	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ELH109M050AS5AA	General Purpose	10000 µF	20 %	Radial Can - Snap-In	1.85 in	47 mm	2000 Hrs	50 VDC	Polar	5.8 A	30 mm	1.181 inches	5 A	0.394 in	10 mm	Through Hole	85 °C	-40 °C
KEMET ELH109M035AR4AA	General Purpose	10000 µF	20 %	Radial Can - Snap-In			2000 Hrs	35 V	Polar		25 mm	0.984 "	3.5 A	0.394 in	10 mm	Through Hole	85 °C	-40 °C	42 mm	1.654 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C
