6733-2

Active

Pomona Electronics

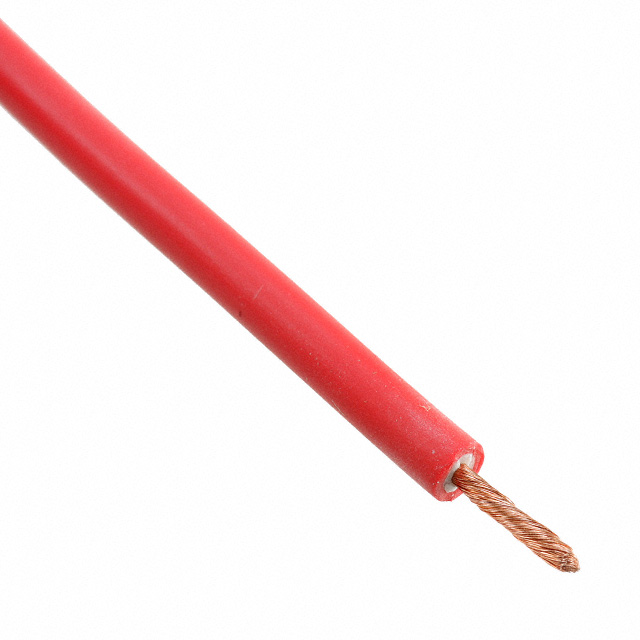

TEST LEAD 18AWG 10KV RED 50'

Search across all available documentation for this part.

Active

Pomona Electronics

TEST LEAD 18AWG 10KV RED 50'

Technical Specifications

Parameters and characteristics for this part

Specification	6733-2

Conductor Material	Copper, Bare
Conductor Strand [custom]	41 AWG
Conductor Strand [custom]	192
Jacket (Insulation) Diameter [diameter]	0.144 in
Jacket (Insulation) Diameter [diameter]	3.66 mm
Jacket Color	Red
Length	15.24 m
Length [x]	50 ft
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Voltage	10 kV
Wire Gauge	18 AWG

Part	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Length	Length [x]
Pomona Electronics 6733-2	Red	41 AWG	192	18 AWG	Copper Bare	0.144 in	3.66 mm	150 °C	-50 °C	10 kV	15.24 m	50 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 AWG Test Lead Wire 192/41 Red 10kV 50.00' (15.24m)
