Q-0D02W0003009i

Active

Amphenol Custom Cable

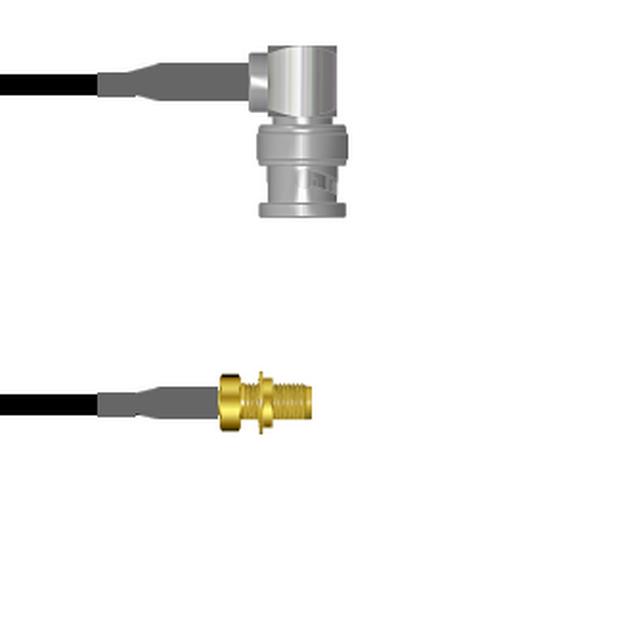

COAX CABLE BNC TO SMA 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D02W0003009i

Active

Amphenol Custom Cable

COAX CABLE BNC TO SMA 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D02W0003009i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0D02W0 Series

Part	1st Connector	Overall Impedance	Length	Length	Features	Cable Type	Style	1st Connector Mounting Type	2nd Connector Mounting Type	2nd Connector	Color	Frequency - Max [Max]	2nd Contact Gender	1st Contact Gender	2nd Connector Mounting Feature	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0D02W0005012i	BNC Plug Right Angle	50 Ohms	12 "	304.8 mm	Shielded	RG-316	BNC to SMA	Free Hanging (In-Line)	Panel Mount	SMA Jack	Copper	4 GHz	Female	Male	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0D02W0003009i	BNC Plug Right Angle	50 Ohms	9 "	228.6 mm	Shielded	RG-174	BNC to SMA	Free Hanging (In-Line)	Panel Mount	SMA Jack	Black	4 GHz	Female	Male	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0D02W0005036i	BNC Plug Right Angle	50 Ohms	36 in	91.44 cm	Shielded	RG-316	BNC to SMA	Free Hanging (In-Line)	Panel Mount	SMA Jack	Copper	4 GHz	Female	Male	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0D02W0005002M	BNC Plug Right Angle	50 Ohms	78.7 in	2 m	Shielded	RG-316	BNC to SMA	Free Hanging (In-Line)	Panel Mount	SMA Jack	Copper	4 GHz	Female	Male	Bulkhead - Front Side Nut	6.6 ft
Amphenol Custom Cable Q-0D02W0005001M	BNC Plug Right Angle	50 Ohms	39.4 in	1 m	Shielded	RG-316	BNC to SMA	Free Hanging (In-Line)	Panel Mount	SMA Jack	Copper	4 GHz	Female	Male	Bulkhead - Front Side Nut	3.3 ft
Amphenol Custom Cable Q-0D02W0005108i	BNC Plug Right Angle	50 Ohms	108 in	2.7 m	Shielded	RG-316	BNC to SMA	Free Hanging (In-Line)	Panel Mount	SMA Jack	Copper	4 GHz	Female	Male	Bulkhead - Front Side Nut	9 ft
Amphenol Custom Cable Q-0D02W0005018i	BNC Plug Right Angle	50 Ohms			Shielded	RG-316	BNC to SMA	Free Hanging (In-Line)	Panel Mount	SMA Jack	Copper	4 GHz	Female	Male	Bulkhead - Front Side Nut		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0D02W0005024i	BNC Plug Right Angle	50 Ohms	24 "	609.6 mm	Shielded	RG-316	BNC to SMA	Free Hanging (In-Line)	Panel Mount	SMA Jack	Copper	4 GHz	Female	Male	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0D02W0005009i	BNC Plug Right Angle	50 Ohms	9 "	228.6 mm	Shielded	RG-316	BNC to SMA	Free Hanging (In-Line)	Panel Mount	SMA Jack	Copper	4 GHz	Female	Male	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0D02W0005084i	BNC Plug Right Angle	50 Ohms	84 in	2.1 m	Shielded	RG-316	BNC to SMA	Free Hanging (In-Line)	Panel Mount	SMA Jack	Copper	4 GHz	Female	Male	Bulkhead - Front Side Nut	7 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 84.67
		25	$ 83.02
		50	$ 81.36
		100	$ 79.71
		250	$ 78.05

Description

General part information

Q-0D02W0 Series

Cable Assembly Coaxial BNC to SMA RG-174 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
