T38313-14-0
ActiveCurtis Industries

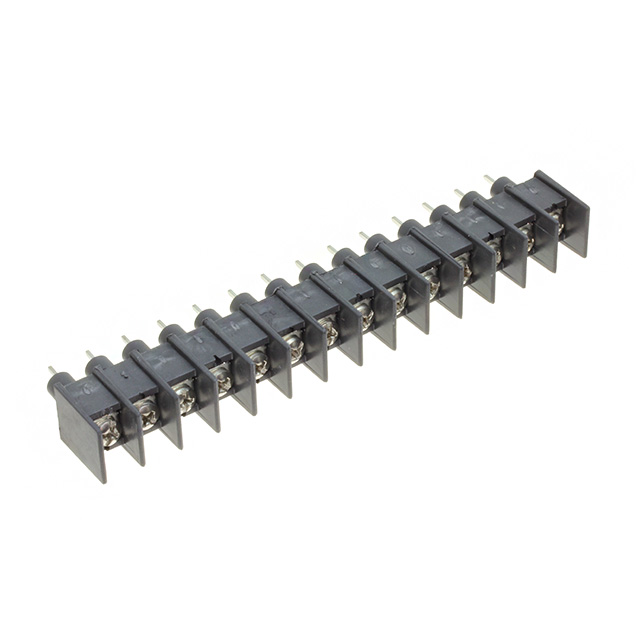

CONN BARRIER STRP 14CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
T38313-14-0
ActiveCurtis Industries
CONN BARRIER STRP 14CIRC 0.375"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T38313-14-0 | T38313 Series |
|---|---|---|
| - | - | |
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin, Insulated | PC Pin, Insulated |
| Current Rating (Amps) | 20 A | 20 A |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole | Chassis, Panel, Through Hole |
| Number of Circuits | 14 | 1 - 20 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 14 | 2 - 20 |
| Number of Wire Entries | - | 1 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 9.53 mm | 9.53 mm |
| Pitch [x] | 0.375 in | 0.375 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Material | Steel, Stainless | Steel, Stainless |
| Top Termination | Screws | Screws |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.61 | |
| 10 | $ 6.70 | |||
T38313 Series
CONN BARRIER STRP 20CIRC 0.375"
| Part | Pitch [x] | Pitch [x] | Operating Temperature | Number of Rows | Terminal Screw Material | Barrier Type | Top Termination | Number of Wire Entries | Bottom Termination | Material Flammability Rating | Wire Gauge [Min] | Wire Gauge [Max] | Material - Insulation | Terminal Block Type | Number of Circuits | Current Rating (Amps) | Voltage Rating | Mounting Type | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries T38313-20-0 | |||||||||||||||||||
Curtis Industries T38313-15-0 | 9.53 mm | 0.375 in | 105 C | 1 | Stainless, Steel | 2 Wall (Dual) | Screws | 15 | PC Pin, Insulated | UL94 V-0 | 12 AWG | 22 AWG | Polypropylene (PP) | Barrier Block | 15 | 20 A | 300 VDC | Chassis, Panel, Through Hole | |
Curtis Industries T38313-02-0 | 9.53 mm | 0.375 in | 105 C | 1 | Stainless, Steel | 2 Wall (Dual) | Screws | 2 | PC Pin, Insulated | UL94 V-0 | 12 AWG | 22 AWG | Polypropylene (PP) | Barrier Block | 2 | 20 A | 300 VDC | Chassis, Panel, Through Hole | |
Curtis Industries T38313-06-0 | 9.53 mm | 0.375 in | 105 C | 1 | Stainless, Steel | 2 Wall (Dual) | Screws | 6 | PC Pin, Insulated | UL94 V-0 | 12 AWG | 22 AWG | Polypropylene (PP) | Barrier Block | 6 | 20 A | 300 VDC | Chassis, Panel, Through Hole | |
Curtis Industries T38313-14-0 | 9.53 mm | 0.375 in | 105 C | 1 | Stainless, Steel | 2 Wall (Dual) | Screws | 14 | PC Pin, Insulated | UL94 V-0 | 12 AWG | 22 AWG | Polypropylene (PP) | Barrier Block | 14 | 20 A | 300 VDC | Chassis, Panel, Through Hole | |
Curtis Industries T38313-01-0 | 105 C | 1 | Stainless, Steel | 2 Wall (Dual) | Screws | PC Pin, Insulated | UL94 V-0 | 12 AWG | 22 AWG | Polypropylene (PP) | Barrier Block | 1 | 20 A | 300 VDC | Chassis, Panel, Through Hole | 1 | |||
Curtis Industries T38313-10-0 | 9.53 mm | 0.375 in | 105 C | 1 | Stainless, Steel | 2 Wall (Dual) | Screws | 10 | PC Pin, Insulated | UL94 V-0 | 12 AWG | 22 AWG | Polypropylene (PP) | Barrier Block | 10 | 20 A | 300 VDC | Chassis, Panel, Through Hole | |
Curtis Industries T38313-06-0 | |||||||||||||||||||
Curtis Industries T38313-20-0 | 9.53 mm | 0.375 in | 105 C | 1 | Stainless, Steel | 2 Wall (Dual) | Screws | 20 | PC Pin, Insulated | UL94 V-0 | 12 AWG | 22 AWG | Polypropylene (PP) | Barrier Block | 20 | 20 A | 300 VDC | Chassis, Panel, Through Hole | |
Curtis Industries T38313-07-0 | 9.53 mm | 0.375 in | 105 C | 1 | Stainless, Steel | 2 Wall (Dual) | Screws | 7 | PC Pin, Insulated | UL94 V-0 | 12 AWG | 22 AWG | Polypropylene (PP) | Barrier Block | 7 | 20 A | 300 VDC | Chassis, Panel, Through Hole |
Description
General part information
T38313 Series
14 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
Documents
Technical documentation and resources
No documents available
