EXC902SM
ActiveTE Connectivity Raychem Cable Protection

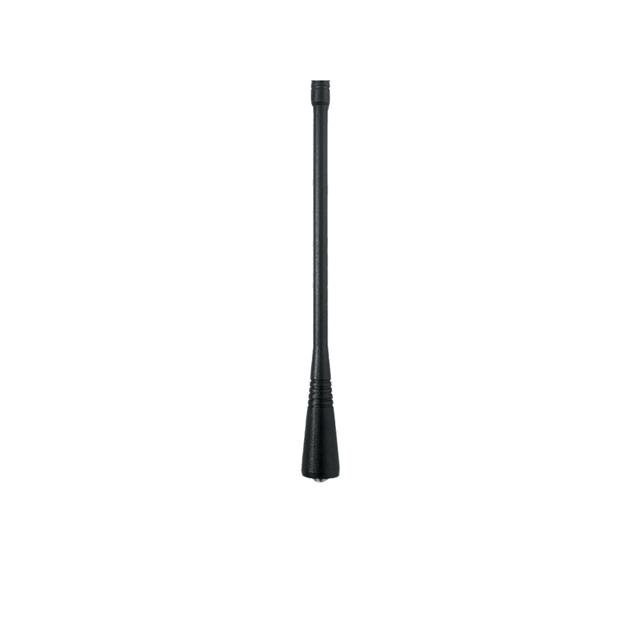

RF ANT 931MHZ WHIP STR SMA MALE
Deep-Dive with AI
Search across all available documentation for this part.
EXC902SM
ActiveTE Connectivity Raychem Cable Protection
RF ANT 931MHZ WHIP STR SMA MALE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EXC902SM |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | Bluetooth, Wi-Fi |
| Frequency (Center/Band) | 931 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 960 MHz |
| Frequency Range [Min] | 902 MHz |
| Height (Max) [Max] | 3.65 in |
| Height (Max) [Max] | 92.71 mm |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 50 W |
| RF Family/Standard | WiFi, Bluetooth |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.45 | |
| 10 | $ 11.81 | |||
| 25 | $ 10.62 | |||
| 100 | $ 9.29 | |||
| 250 | $ 8.64 | |||
| 500 | $ 8.27 | |||
Description
General part information
EXC902 Series
RF ANTENNA Bluetooth, Wi-Fi Whip, Straight SMA Male Connector Mount
