A-1PA-113-125W2
ActiveMcGill Microwave Systems

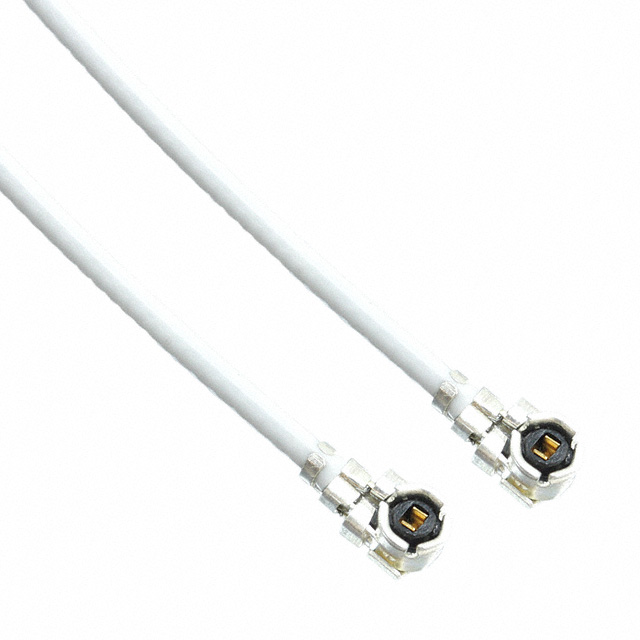

CABLE ASSEMBLY 1.13MM CABLE 0.125M 32AWG AMC TO AMC M-M
A-1PA-113-125W2
ActiveMcGill Microwave Systems
CABLE ASSEMBLY 1.13MM CABLE 0.125M 32AWG AMC TO AMC M-M
Description
General part information
A-1PA-113 Series
Cable Assembly Coaxial U.FL (UMCC), AMC to U.FL (UMCC), AMC 1.13mm OD Coaxial Cable 4.902" (124.50mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | A-1PA-113-125W2 |
|---|---|
| 1st Connector | AMC Plug, Right Angle, U.FL (UMCC) |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | U.FL (UMCC), AMC Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Outer Diameter | 1.13 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable, 1.13mm OD Coaxial Cable |
| Cable Type Size | 1.13 |
| Color | White |
| Features | Shielded |
| Frequency - Max | 6000 MHz |
| Length | 4.902 in |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | AMC, AMC to U.FL (UMCC), U.FL (UMCC) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
