A-1PA-113-085B2
ActiveMcGill Microwave Systems
CBL ASSY U.FL UMCC PLG-PLG 3.35"
A-1PA-113-085B2
ActiveMcGill Microwave Systems
CBL ASSY U.FL UMCC PLG-PLG 3.35"
Description
General part information
A-1PA-113 Series

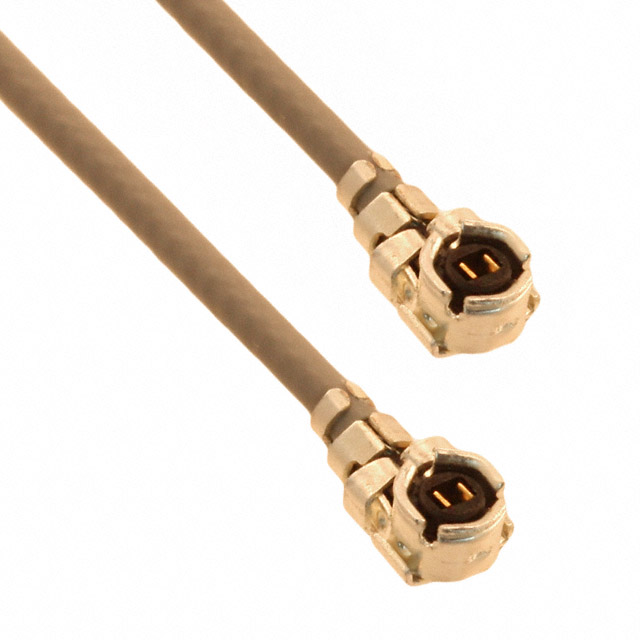

Cable Assembly Coaxial U.FL (UMCC), AMC to U.FL (UMCC), AMC 1.13mm OD Coaxial Cable 3.350" (85.09mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | A-1PA-113-085B2 |
|---|---|
| 1st Connector | AMC Plug, Right Angle, U.FL (UMCC) |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | U.FL (UMCC), AMC Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Outer Diameter | 1.13 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable, 1.13mm OD Coaxial Cable |
| Cable Type Size | 1.13 |
| Color | Black |
| Features | Shielded |
| Frequency - Max | 6000 MHz |
| Length | 3.35 in |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | AMC, AMC to U.FL (UMCC), U.FL (UMCC) |
