2291283-2
NRNDTE Connectivity AMP Connectors
0.5MM FPH BTB, 4H/30POS/15U/TR/WOB/B
2291283-2
NRNDTE Connectivity AMP Connectors
0.5MM FPH BTB, 4H/30POS/15U/TR/WOB/B
Description
General part information
2291283 Series

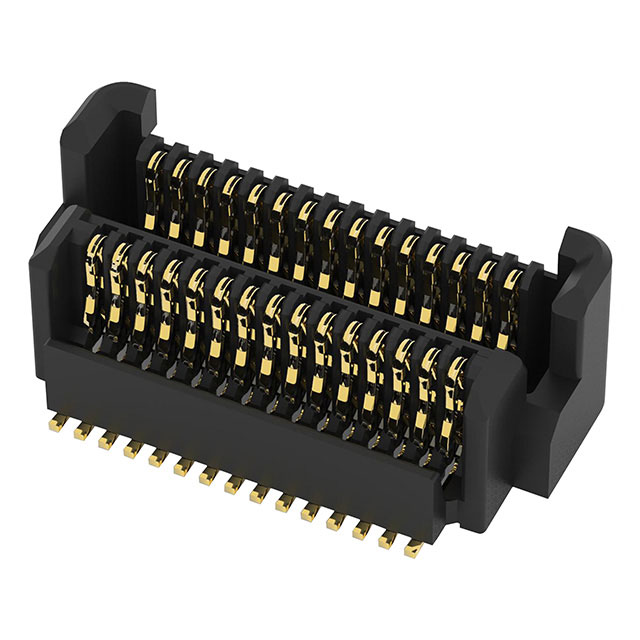

PCB Mount Hermaphroditic Connector, Vertical, Board-to-Board, 30 Position, .5 mm [.02 in] Centerline, Gold (Au), Surface Mount, Signal, Black
Technical Specifications
Parameters and characteristics for this part
| Specification | 2291283-2 |
|---|---|
| Connector Type | Non-Gendered, Hermaphroditic, Self Mating |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Rows | 1 |
| Pitch | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
