PT06A14-12P-023
ActiveAmphenol Industrial Operations

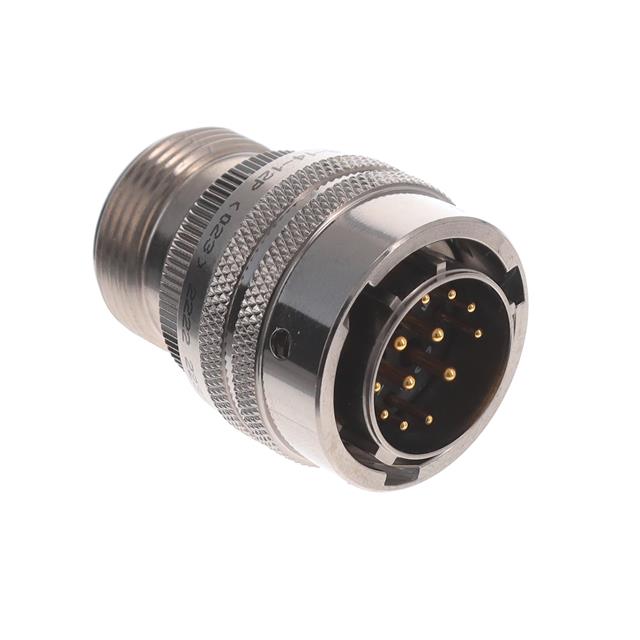

PT 12C 4#16,8#20 PIN PLUG
Deep-Dive with AI
Search across all available documentation for this part.
PT06A14-12P-023
ActiveAmphenol Industrial Operations
PT 12C 4#16,8#20 PIN PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT06A14-12P-023 | PT06A Series |
|---|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems |
| Backshell Material, Plating | Electroless Nickel, Aluminum | Black Zinc Cobalt, Aluminum, Olive Drab Cadmium, Electroless Nickel |
| Cable Opening | - | 15.88 mm |
| Cable Opening | - | 0.625 in |
| Color | Silver | Black, Olive Drab, Silver |
| Connector Type | Plug, Male Pins | Female Sockets, Plug, Male Pins, Plug Housing |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | - | Circular |
| Contact Size | - | 20 |
| Contact Type | - | Crimp |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Backshell | Coupling Nut, Backshell, Strain Relief, Cable Clamp |
| Housing Color | - | Olive Drab |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | - | Contacts Not Included |
| Number of Positions | 12 | 2 - 61 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W, Z, X, Y |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Electroless Nickel | Black Zinc Cobalt, Olive Drab Chromate over Cadmium, Chromate over Cadmium, Electroless Nickel |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 14-12 | 12-3, 8-3, 12-4, 10-6, 10-5, 10-2, 14-12, 14-5, 8-2, 18-11, 22-7, 12-8, 8-4 |
| Shell Size - Insert | - | 10 - 24 |
| Shell Size - Insert | - | 14 - 98 |
| Shell Size - Insert | - | 19 |
| Shell Size - Insert | - | 14 |
| Shell Size - Insert | - | 20 |
| Shell Size - Insert | - | 16 |
| Shielding | Unshielded | Unshielded |
| Type | - | For Male Pins |
| Voltage Rating | - | 600 - 1000 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 30.35 | |
| 10 | $ 28.89 | |||
PT06A Series
CONN PLUG FMALE 3P GOLD SLDR CUP
| Part | Fastening Type | Mounting Type | Connector Type | Color | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Finish - Mating | Orientation | Shielding | Applications | Insert Material | Shell Material | Primary Material | Qualification | Shell Size - Insert | Contact Material | Backshell Material, Plating | Number of Positions | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] | Housing Color | Type | Contact Size | Contact Shape | Contact Type | Note | Shell Size - Insert [Max] [diameter] | Shell Size - Insert [Min] [diameter] | Number of Positions | Voltage Rating | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations PT06A-12-3S(025) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 12-3 | Copper Alloy | Aluminum, Black Zinc Cobalt | |||||||||||||||||
Amphenol Industrial Operations PT06A-14-18P(SR) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 18 | 14 | 18 | |||||||||||||||
Amphenol Industrial Operations PT06A-8-3P | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 8-3 | Copper Alloy | Aluminum, Olive Drab Cadmium | |||||||||||||||||
Amphenol Industrial Operations PT06A12-4P-470 | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 12-4 | Copper Alloy | Aluminum, Black Zinc Cobalt | 4 | ||||||||||||||||
Amphenol Industrial Operations PT06A-10-6P | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 10-6 | Copper Alloy | Aluminum, Olive Drab Cadmium | 6 | ||||||||||||||||
Amphenol Industrial Operations PT06A-14-19S(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 19 | 19 | 14 | |||||||||||||||
Amphenol Industrial Operations PT06A-10-5P(SR) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 10-5 | Copper Alloy | Aluminum, Olive Drab Cadmium | |||||||||||||||||
Amphenol Industrial Operations PT06A-18-32P | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 18 | 32 | ||||||||||||||||
Amphenol Industrial Operations PT06A-16-26SW | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | W | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 26 | 16 | 26 | |||||||||||||||
Amphenol Industrial Operations PT06A-22-55P(SR) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 55 positions | 22 | 55 | |||||||||||||||
Amphenol Industrial Operations PT06A10-6P-SR-LC | Bayonet Lock | Free Hanging (In-Line) | Plug Housing | Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | N | Unshielded | Neoprene | Aluminum | MIL-DTL-26482 Series I | 10-6 | 6 | Olive Drab | For Male Pins | 20 | Circular | Crimp | Contacts Not Included | ||||||||||||||||
Amphenol Industrial Operations PT06A20-16P-SR | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 20 | 16 | 16 | |||||||||||||||
Amphenol Industrial Operations PT06A20-16PW-SR | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | W | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 20 | 16 | 16 | |||||||||||||||
Amphenol Industrial Operations PT06A20-27P-SR | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 27 | 20 | 27 | |||||||||||||||
Amphenol Industrial Operations PT06A-10-6P(470) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Backshell, Cable Clamp, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 10-6 | Copper Alloy | Aluminum, Black Zinc Cobalt | 6 | ||||||||||||||||
Amphenol Industrial Operations PT06A-14-18PZ(SR) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | Z | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 18 | 14 | 18 | |||||||||||||||
Amphenol Industrial Operations PT06A10-2P-SR | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 10-2 | Copper Alloy | Aluminum, Olive Drab Cadmium | 2 | ||||||||||||||||
Amphenol Industrial Operations PT06A12-14P-SR | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 14 | 12 | 14 | |||||||||||||||
Amphenol Industrial Operations PT06A14-12P-023 | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Silver | Electroless Nickel | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 14-12 | Copper Alloy | Aluminum, Electroless Nickel | 12 | ||||||||||||||||
Amphenol Industrial Operations PT06A-14-18P | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 18 | 14 | 18 | |||||||||||||||
Amphenol Industrial Operations PT06A-12-3S(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 12-3 | Copper Alloy | Aluminum, Olive Drab Cadmium | |||||||||||||||||
Amphenol Industrial Operations PT06A-20-16P | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 20 | 16 | 16 | |||||||||||||||
Amphenol Industrial Operations PT06A-20-41PW(SR) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | W | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 41 | 20 | 41 | |||||||||||||||
Amphenol Industrial Operations PT06A12-4P-SR | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 12-4 | Copper Alloy | Aluminum, Olive Drab Cadmium | 4 | ||||||||||||||||
Amphenol Industrial Operations PT06A-14-15P | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 15 | 14 | 15 | |||||||||||||||
Amphenol Industrial Operations PT06A-8-3S(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 8-3 | Copper Alloy | Aluminum, Olive Drab Cadmium | |||||||||||||||||
Amphenol Industrial Operations PT06A-18-32SW | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | W | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 18 | 32 | ||||||||||||||||
Amphenol Industrial Operations PT06A-18-32SX(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | X | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 18 | 32 | ||||||||||||||||
Amphenol Industrial Operations PT06A-14-15SY(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | Y | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 15 | 14 | 15 | |||||||||||||||
Amphenol Industrial Operations PT06A-14-5P(SR) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 14-5 | Copper Alloy | Aluminum, Olive Drab Cadmium | |||||||||||||||||
Amphenol Industrial Operations PT06A18-32PX-SR | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | X | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 18 | 32 | ||||||||||||||||
Amphenol Industrial Operations PT06A14-12SW-027 | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Gold | W | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 14-12 | Copper Alloy | Aluminum, Black Zinc Cobalt | 12 | |||||||||||||||||
Amphenol Industrial Operations PT06A18-32PY | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Gold | Y | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 18 | 32 | |||||||||||||||||
Amphenol Industrial Operations PT06A-12-10PW | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | W | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 10 | |||||||||||||||||
Amphenol Industrial Operations PT06A8-3PX-SR | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | X | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 8-3 | Copper Alloy | Aluminum, Olive Drab Cadmium | |||||||||||||||||
Amphenol Industrial Operations PT06A-12-4P | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 12-4 | Copper Alloy | Aluminum, Olive Drab Cadmium | 4 | ||||||||||||||||
Amphenol Industrial Operations PT06A18-32PZ-SR | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | Z | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 18 | 32 | ||||||||||||||||
Amphenol Industrial Operations PT06A20-24S | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 24 | 20 | 24 | ||||||||||||||||
Amphenol Industrial Operations PT06A-8-2S(470) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Backshell, Cable Clamp, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 8-2 | Copper Alloy | Aluminum, Black Zinc Cobalt | 2 | ||||||||||||||||
Amphenol Industrial Operations PT06A-24-61P(025) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Black Zinc Cobalt | 61 | 24 | 61 | |||||||||||||||
Amphenol Industrial Operations PT06A-12-4S(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 12-4 | Copper Alloy | Aluminum, Olive Drab Cadmium | 4 | ||||||||||||||||
Amphenol Industrial Operations PT06A-14-15P(470) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Backshell, Cable Clamp, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Black Zinc Cobalt | 15 | 14 | 15 | |||||||||||||||
Amphenol Industrial Operations PT06A-12-14S(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 14 | 12 | 14 | |||||||||||||||
Amphenol Industrial Operations PT06A-20-41SW | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | W | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 41 | 20 | 41 | |||||||||||||||
Amphenol Industrial Operations PT06A18-11PW | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Gold | W | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 18-11 | Copper Alloy | Aluminum, Olive Drab Cadmium | 11 | |||||||||||||||||
Amphenol Industrial Operations PT06A20-39SZ | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Gold | Z | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 39 | 20 | 39 | ||||||||||||||||
Amphenol Industrial Operations PT06A-16-26S(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 26 | 16 | 26 | |||||||||||||||
Amphenol Industrial Operations PT06A-14-18S(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 18 | 14 | 18 | |||||||||||||||
Amphenol Industrial Operations PT06A10-5SW-SR | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | W | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 10-5 | Copper Alloy | Aluminum, Olive Drab Cadmium | |||||||||||||||||
Amphenol Industrial Operations PT06A-12-14P(SR) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 14 | 12 | 14 | |||||||||||||||
Amphenol Industrial Operations PT06A-14-18P(025) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Black Zinc Cobalt | 18 | 14 | 18 | |||||||||||||||
Amphenol Industrial Operations PT06A12-10P-SR | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 10 | |||||||||||||||||
Amphenol Industrial Operations PT06A-20-16PW | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | W | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 20 | 16 | 16 | |||||||||||||||
Amphenol Industrial Operations PT06A-24-61SY(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | Y | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 61 | 24 | 61 | |||||||||||||||
Amphenol Industrial Operations PT06A12-10P-027 | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Black Zinc Cobalt | 10 | |||||||||||||||||
Amphenol Industrial Operations PT06A22-21PX-SR | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | X | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 21 | 22 | 21 | |||||||||||||||
Amphenol Industrial Operations PT06A-14-12S(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 14-12 | Copper Alloy | Aluminum, Olive Drab Cadmium | 12 | ||||||||||||||||
Amphenol Industrial Operations PT06A-10-98P | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 6 | 10 | 98 | |||||||||||||||
Amphenol Industrial Operations PT06A-18-11S(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 18-11 | Copper Alloy | Aluminum, Olive Drab Cadmium | 11 | ||||||||||||||||
Amphenol Industrial Operations PT06A-12-10P(470) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Backshell, Cable Clamp, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Black Zinc Cobalt | 10 | |||||||||||||||||
Amphenol Industrial Operations PT06A-14-12P | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 14-12 | Copper Alloy | Aluminum, Olive Drab Cadmium | 12 | ||||||||||||||||
Amphenol Industrial Operations PT06A-24-61S | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 61 | 24 | 61 | |||||||||||||||
Amphenol Industrial Operations PT06A12-14P-023 | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Silver | Electroless Nickel | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Electroless Nickel | 14 | 12 | 14 | |||||||||||||||
Amphenol Industrial Operations PT06A20-16S-SR | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 20 | 16 | 16 | |||||||||||||||
Amphenol Industrial Operations PT06A-14-12S | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 14-12 | Copper Alloy | Aluminum, Olive Drab Cadmium | 12 | ||||||||||||||||
Amphenol Industrial Operations PT06A20-16PX-SR | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | X | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 20 | 16 | 16 | |||||||||||||||
Amphenol Industrial Operations PT06A22-55PX-SR | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | X | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 55 positions | 22 | 55 | |||||||||||||||
Amphenol Industrial Operations PT06A-22-7P | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 22-7 | Copper Alloy | Aluminum, Olive Drab Cadmium | 7 | ||||||||||||||||
Amphenol Industrial Operations PT06A-18-32S(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 18 | 32 | ||||||||||||||||
Amphenol Industrial Operations PT06A-16-8P(SR) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 8 | |||||||||||||||||
Amphenol Industrial Operations PT06A-22-55S(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 55 positions | 22 | 55 | |||||||||||||||
Amphenol Industrial Operations PT06A-12-3P(SR) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 12-3 | Copper Alloy | Aluminum, Olive Drab Cadmium | |||||||||||||||||
Amphenol Industrial Operations PT06A10-98S-SR | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 6 | 10 | 98 | |||||||||||||||
Amphenol Industrial Operations PT06A-12-10PY | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | Y | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 10 | |||||||||||||||||
Amphenol Industrial Operations PT06A18-32SW-027 | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Gold | W | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Black Zinc Cobalt | 18 | 32 | |||||||||||||||||
Amphenol Industrial Operations PT06A16-23P-470 | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Gold | N | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Black Zinc Cobalt | 23 | 16 | 23 | 600 VAC | |||||||||||||||
Amphenol Industrial Operations PT06A-16-23S(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 23 | 16 | 23 | |||||||||||||||
Amphenol Industrial Operations PT06A-16-26P | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 26 | 16 | 26 | |||||||||||||||
Amphenol Industrial Operations PT06A12-3S-025 | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 12-3 | Copper Alloy | Aluminum, Black Zinc Cobalt | 1000 VAC | ||||||||||||||||
Amphenol Industrial Operations PT06A-20-41S(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 41 | 20 | 41 | |||||||||||||||
Amphenol Industrial Operations PT06A-8-2S | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 8-2 | Copper Alloy | Aluminum, Olive Drab Cadmium | 2 | ||||||||||||||||
Amphenol Industrial Operations PT06A-20-16SX | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | X | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 20 | 16 | 16 | |||||||||||||||
Amphenol Industrial Operations PT06A-12-8S | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 12-8 | Copper Alloy | Aluminum, Olive Drab Cadmium | 8 | ||||||||||||||||
Amphenol Industrial Operations PT06A-12-4P(SR) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 12-4 | Copper Alloy | Aluminum, Olive Drab Cadmium | 4 | ||||||||||||||||
Amphenol Industrial Operations PT06A-14-18PW(SR) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | W | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 18 | 14 | 18 | |||||||||||||||
Amphenol Industrial Operations PT06A-14-15S | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 15 | 14 | 15 | |||||||||||||||
Amphenol Industrial Operations PT06A20-16PW-027 | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Gold | W | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Black Zinc Cobalt | 20 | 16 | 16 | ||||||||||||||||
Amphenol Industrial Operations PT06A-20-16S(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 20 | 16 | 16 | |||||||||||||||
Amphenol Industrial Operations PT06A-14-15S(470) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Backshell, Cable Clamp, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Black Zinc Cobalt | 15 | 14 | 15 | |||||||||||||||
Amphenol Industrial Operations PT06A-12-10S(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 10 | |||||||||||||||||
Amphenol Industrial Operations PT06A20-16SY | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Gold | Y | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 20 | 16 | 16 | ||||||||||||||||
Amphenol Industrial Operations PT06A-8-2P | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 8-2 | Copper Alloy | Aluminum, Olive Drab Cadmium | 2 | ||||||||||||||||
Amphenol Industrial Operations PT06A-14-19P | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 19 | 19 | 14 | |||||||||||||||
Amphenol Industrial Operations PT06A-16-8S | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 8 | |||||||||||||||||
Amphenol Industrial Operations PT06A14-5P-023 | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Silver | Electroless Nickel | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 14-5 | Copper Alloy | Aluminum, Electroless Nickel | |||||||||||||||||
Amphenol Industrial Operations PT06A-14-18SW(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | W | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 18 | 14 | 18 | |||||||||||||||
Amphenol Industrial Operations PT06A-14-19P(SR) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 19 | 19 | 14 | |||||||||||||||
Amphenol Industrial Operations PT06A8-4S-SR | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 8-4 | Copper Alloy | Aluminum, Olive Drab Cadmium | 4 | ||||||||||||||||
Amphenol Industrial Operations PT06A-10-6S(470) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Backshell, Cable Clamp, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 10-6 | Copper Alloy | Aluminum, Black Zinc Cobalt | 6 | ||||||||||||||||
Amphenol Industrial Operations PT06A-14-12P(470) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Backshell, Cable Clamp, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 14-12 | Copper Alloy | Aluminum, Black Zinc Cobalt | 12 | ||||||||||||||||
Amphenol Industrial Operations PT06A12-3S-470 | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 12-3 | Copper Alloy | Aluminum, Black Zinc Cobalt | ||||||||||||||||||
Amphenol Industrial Operations PT06A-14-19P(470) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Backshell, Cable Clamp, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Black Zinc Cobalt | 19 | 19 | 14 | |||||||||||||||
Amphenol Industrial Operations PT06A12-8P-SR | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 12-8 | Copper Alloy | Aluminum, Olive Drab Cadmium | 8 | ||||||||||||||||
Amphenol Industrial Operations PT06A-12-10S(470) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Backshell, Cable Clamp, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Black Zinc Cobalt | 10 | |||||||||||||||||
Amphenol Industrial Operations PT06A-20-41S | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 41 | 20 | 41 | |||||||||||||||
Amphenol Industrial Operations PT06A-10-6S | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 10-6 | Copper Alloy | Aluminum, Olive Drab Cadmium | 6 | ||||||||||||||||
Amphenol Industrial Operations PT06A-12-3S | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 12-3 | Copper Alloy | Aluminum, Olive Drab Cadmium | |||||||||||||||||
Amphenol Industrial Operations PT06A-12-3S(470) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Backshell, Cable Clamp, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 12-3 | Copper Alloy | Aluminum, Black Zinc Cobalt | |||||||||||||||||
Amphenol Industrial Operations PT06A-24-61S(025) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Black | Black Zinc Cobalt | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Black Zinc Cobalt | 61 | 24 | 61 | |||||||||||||||
Amphenol Industrial Operations PT06A-12-8S(SR) | Bayonet Lock | Free Hanging (In-Line) | Female Sockets, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 12-8 | Copper Alloy | Aluminum, Olive Drab Cadmium | 8 | ||||||||||||||||
Amphenol Industrial Operations PT06A18-32PY-SR | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | Y | Unshielded | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Olive Drab Cadmium | 18 | 32 | 600 VAC | 15.88 mm | 0.625 in | |||||||||||||
Amphenol Industrial Operations PT06A-12-8P(SR) | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Olive Drab | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Strain Relief | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | 12-8 | Copper Alloy | Aluminum, Olive Drab Cadmium | 8 | ||||||||||||||||
Amphenol Industrial Operations PT06A14-18P-023 | Bayonet Lock | Free Hanging (In-Line) | Male Pins, Plug | Silver | Electroless Nickel | -55 °C | 125 °C | Backshell, Coupling Nut | Gold | N | Unshielded | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Neoprene | Aluminum | Metal | MIL-DTL-26482 Series I | Copper Alloy | Aluminum, Electroless Nickel | 18 | 14 | 18 |
Description
General part information
PT06A Series
12 Position Circular Connector Plug, Male Pins Solder Cup
