Specification	2170057-1

Connector Pin Configuration (Columns)	6 pins
Connector Pin Configuration (Rows)	1 pins
Connector Style	Cage, Ganged
Connector Type	SFP+
Features	EMI Shielded
Mounting Type	Through Hole, Right Angle
Termination	Press-Fit

SFP+ Series

Part	Contact Finish	Number of Positions (Total)	Number of Positions (Columns)	Number of Positions (Rows)	Mounting Type	Connector Pin Configuration (Rows)	Connector Style	Connector Pin Configuration (Columns)	Connector Type	Termination	Features	Accessory Type	For Use With/Related Products
TE Connectivity AMP Connectors 2007492-5
TE Connectivity AMP Connectors 2007492-5	Gold	40	20	2	Right Angle Through Hole	2 pins	Ganged Receptacle with Cage	1 pins	SFP+	Press-Fit	Board Guide EMI Shielded Light Pipe
TE Connectivity AMP Connectors 2007567-5	Gold	240	20	12	Right Angle Through Hole	2 pins	Ganged Receptacle with Cage	6 pins	SFP+	Press-Fit	Board Guide EMI Shielded Light Pipe

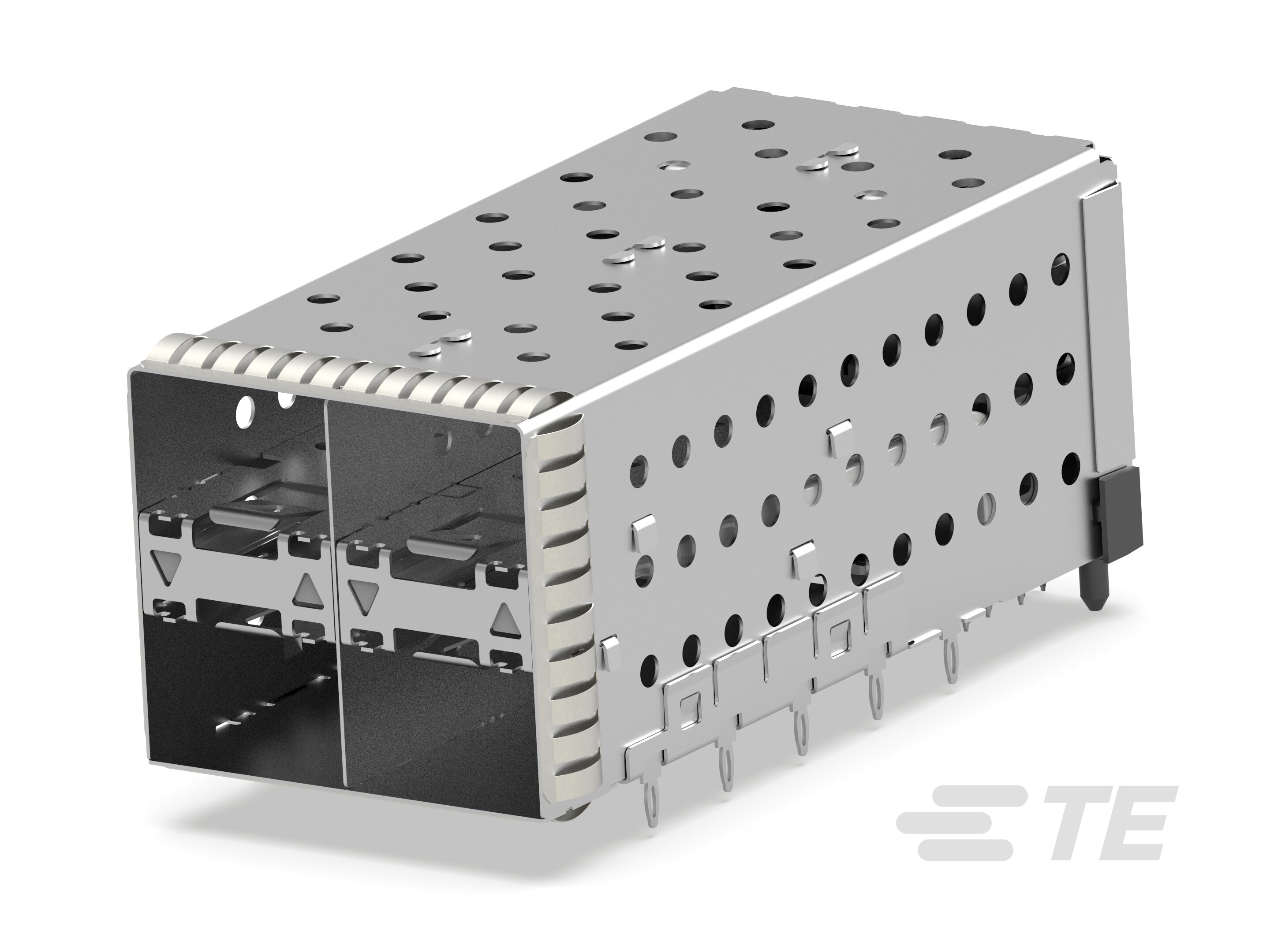

TE Connectivity AMP Connectors 1-2007637-7		80	20	4	Right Angle Through Hole	2 pins	Ganged Receptacle with Cage	2 pins	SFP+	Press-Fit	Board Guide EMI Shielded Light Pipe
TE Connectivity AMP Connectors 2007170-1					Right Angle Through Hole	1 pins	Cage Ganged	6 pins	SFP+	Press-Fit	EMI Shielded
TE Connectivity AMP Connectors 2170057-1					Right Angle Through Hole	1 pins	Cage Ganged	6 pins	SFP+	Press-Fit	EMI Shielded
TE Connectivity AMP Connectors 2007099-2												Light Pipes Set	SFP+ Cage
