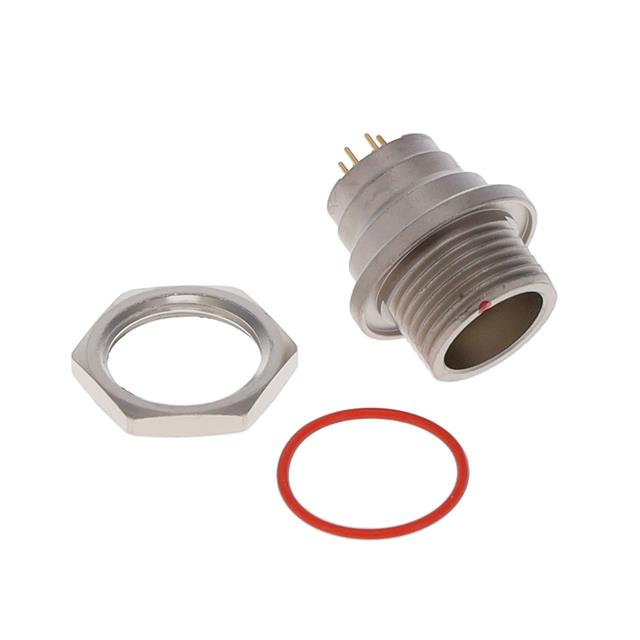

HS2P6F26-BPE

Active

Switchcraft Inc.

CONN RCPT FMALE 6POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 6POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HS2P6F26-BPE	HS2P6F Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	6	6
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Solder
Voltage Rating	30 VAC	30 VAC

CONN RCPT FMALE 6POS GOLD SOLDER

Part	Contact Finish - Mating	Fastening Type	Termination	Voltage Rating	Primary Material	Connector Type	Mounting Type	Contact Material	Insert Material	Mounting Feature	Orientation	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Color	Number of Positions	Ingress Protection	Applications	Shielding
Switchcraft Inc. HS2P6F26-BPE	Gold	Push-Pull	Solder	30 VAC	Metal	Receptacle, Female Sockets	Panel Mount, Through Hole	Copper Alloy	Liquid Crystal Polymer (LCP)	Bulkhead - Front Side Nut	Keyed	Copper Alloy	135 °C	-40 °C	Electroless Nickel	Silver	6	IP66, IP67, IP68	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Shielded
Switchcraft Inc. HS2P6F26-BP	Gold	Push-Pull	Solder	30 VAC	Metal	Receptacle, Female Sockets	Panel Mount, Through Hole	Copper Alloy	Liquid Crystal Polymer (LCP)	Bulkhead - Front Side Nut	Keyed	Copper Alloy	135 °C	-40 °C	Electroless Nickel	Silver	6	IP66, IP67, IP68	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder
