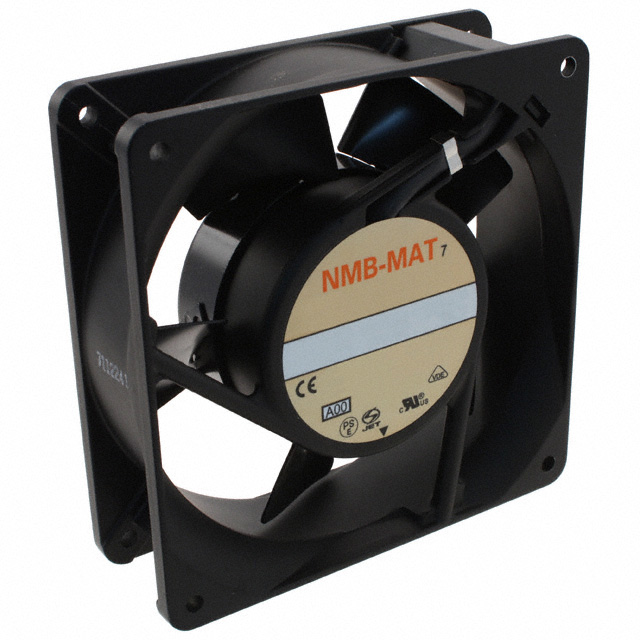

4715TS-23T-B5A-A00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 119X38MM 230VAC TERM
Deep-Dive with AI
Search across all available documentation for this part.
4715TS-23T-B5A-A00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 119X38MM 230VAC TERM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4715TS-23T-B5A-A00 |
|---|---|
| Air Flow | 3.26 m³/min |
| Air Flow | 116.5 CFM |
| Approval Agency | UL, VDE, CE |
| Bearing Type | Ball |
| Current Rating (Amps) | 140 mA |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 50000 Hrs |
| Material - Blade | Steel |
| Material - Frame | Aluminum |
| Noise | 50 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 17 W |
| RPM | 3100 RPM |
| Size / Dimension [x] | 119 mm |
| Size / Dimension [y] | 119 mm |
| Static Pressure | 0.4 in H2O |
| Static Pressure | 99.6 Pa |
| Termination | 2 Terminals |
| Voltage - Rated | 230 VAC |
| Weight | 589.7 g |
| Weight | 1.3 lbs |
| Width [y] | 38 mm |
4715TS Series
| Part | Voltage - Rated | Bearing Type | Material - Frame | Power (Watts) | Weight | Weight | Material - Blade | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Lifetime @ Temp. | Static Pressure | Static Pressure | Current Rating (Amps) | Approval Agency | Termination | Fan Type | RPM | Noise | Width [y] | Air Flow | Air Flow | Air Flow | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NMB TECHNOLOGIES | 200 VAC | Ball | Aluminum | 17 W | 1.4 lbs | 635 g | Steel | 119 mm | 119 mm | -10 °C | -10 °C | 60 °C | 60 °C | 50000 Hrs | 0.4 in H2O | 99.6 Pa | 0.17 A | CE UL VDE | 2 Terminals | Tubeaxial | 3100 RPM | 50 dB(A) | 38 mm | 116.5 CFM | 3.26 m³/min | ||
NMB TECHNOLOGIES | 200 VAC | Ball | Aluminum | 17 W | 1.3 lbs | 589.7 g | Steel | 119 mm | 119 mm | -10 °C | -10 °C | 65 °C | 65 °C | 50000 Hrs | 0.4 in H2O | 99.6 Pa | 0.17 A | CE UL VDE | 2 Terminals | Tubeaxial | 3100 RPM | 50 dB(A) | 38 mm | 3.26 m³/min | 116.5 CFM | ||
NMB TECHNOLOGIES | 230 VAC | Ball | Aluminum | 17 W | 1.3 lbs | 589.7 g | Steel | 119 mm | 119 mm | -10 °C | -10 °C | 60 °C | 60 °C | 50000 Hrs | 0.4 in H2O | 99.6 Pa | 140 mA | CE UL VDE | 2 Terminals | Tubeaxial | 3100 RPM | 50 dB(A) | 38 mm | 3.26 m³/min | 116.5 CFM | ||
NMB TECHNOLOGIES | 100 VAC | Ball | Aluminum | 17 W | 1.3 lbs | 589.7 g | Steel | 119 mm | 119 mm | -10 °C | -10 °C | 65 °C | 65 °C | 50000 Hrs | 0.4 in H2O | 99.6 Pa | 0.34 A | CE UL VDE | 2 Terminals | Tubeaxial | 3100 RPM | 50 dB(A) | 38 mm | 116.5 CFM | 3.26 m³/min | ||
NMB TECHNOLOGIES | 115 VAC | Ball | Aluminum | 17 W | 1.3 lbs | 589.7 g | Steel | 119 mm | 119 mm | -10 °C | -10 °C | 60 °C | 60 °C | 50000 Hrs | 0.4 in H2O | 99.6 Pa | CE UL VDE | 2 Terminals | Tubeaxial | 3100 RPM | 50 dB(A) | 38 mm | 3.26 m³/min | 116.5 CFM | |||
NMB TECHNOLOGIES | 100 VAC | Ball | Aluminum | 17 W | 1.4 lbs | 635 g | Steel | 119 mm | 119 mm | -10 °C | -10 °C | 60 °C | 60 °C | 50000 Hrs | 0.4 in H2O | 99.6 Pa | 0.34 A | CE UL VDE | 2 Terminals | Tubeaxial | 3100 RPM | 50 dB(A) | 38 mm | 116.5 CFM | 3.26 m³/min | ||
NMB TECHNOLOGIES | 220 VAC | Ball | Aluminum | 17 W | 1.3 lbs | 589.7 g | Steel | 119 mm | 119 mm | -10 °C | -10 °C | 65 °C | 65 °C | 50000 Hrs | 0.4 in H2O | 99.6 Pa | 150 mA | CE UL VDE | 2 Terminals | Tubeaxial | 3100 RPM | 50 dB(A) | 38 mm | 116.5 CFM | 3.26 m³/min | ||
NMB TECHNOLOGIES | 230 VAC | Ball | Aluminum | 17 W | 1.4 lbs | 635 g | Steel | 119 mm | 119 mm | -10 °C | -10 °C | 60 °C | 60 °C | 50000 Hrs | 0.4 in H2O | 99.6 Pa | 140 mA | CE UL VDE | 2 Terminals | Tubeaxial | 3100 RPM | 50 dB(A) | 38 mm | 3.26 m³/min | 116.5 CFM | IP54 - Dust Protected Water Resistant | |
NMB TECHNOLOGIES | 115 VAC | Ball | Aluminum | 17 W | 1.4 lbs | 635 g | Steel | 119 mm | 119 mm | -10 °C | -10 °C | 60 °C | 60 °C | 50000 Hrs | 0.4 in H2O | 99.6 Pa | CE UL VDE | 2 Terminals | Tubeaxial | 3100 RPM | 50 dB(A) | 38 mm | 3.26 m³/min | 116.5 CFM | IP54 - Dust Protected Water Resistant |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 28.48 | |
| 20 | $ 26.01 | |||
| 40 | $ 25.02 | |||
| 60 | $ 23.38 | |||
Description
General part information
4715TS Series
Fan Tubeaxial 230VAC Square - 119mm L x 119mm H Ball 116.5 CFM (3.26mł/min) 2 Terminals
