746-084-560-206

Active

EDAC Inc.

CONN EDGE DUAL FMALE 84POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

746-084-560-206

Active

EDAC Inc.

CONN EDGE DUAL FMALE 84POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	746-084-560-206

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever, Make Before Break
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	84
Number of Positions/Bay/Row [custom]	42
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

746-084 Series

Part	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Color	Termination Rows	Read Out	Number of Positions/Bay/Row [custom]	Contact Material	Contact Type	Gender	Termination	Contact Finish	Number of Positions	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Card Type
EDAC Inc. 746-084-520-201	Polyester Thermoplastic	0.76 Ám	30 Áin	Black	2	Dual	42	Copper Alloy	Cantilever	Female	Press-Fit	Gold	84	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	0.125 in	3.18 mm	-40 °C	105 ░C	Non Specified - Dual Edge
EDAC Inc. 746-084-520-601	Polyester Thermoplastic	0.76 Ám	30 Áin	Black	2	Dual	42	Copper Alloy	Cantilever	Female	Press-Fit	Gold	84	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	0.125 in	3.18 mm	-40 °C	105 ░C	Non Specified - Dual Edge
EDAC Inc. 746-084-540-206	Polyester Thermoplastic	0.76 Ám	30 Áin	Black	2	Dual	42	Copper Alloy	Cantilever	Female	Press-Fit Wire Wrap	Gold	84	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	0.125 in	3.18 mm	-40 °C	105 ░C	Non Specified - Dual Edge
EDAC Inc. 746-084-527-206	Polyester Thermoplastic	0.76 Ám	30 Áin	Black	2	Dual	42	Copper Alloy	Cantilever	Female	Press-Fit	Gold	84	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	0.125 in	3.18 mm	-40 °C	105 ░C	Non Specified - Dual Edge
EDAC Inc. 746-084-527-201	Polyester Thermoplastic	0.76 Ám	30 Áin	Black	2	Dual	42	Copper Alloy	Cantilever	Female	Press-Fit	Gold	84	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	0.125 in	3.18 mm	-40 °C	105 ░C	Non Specified - Dual Edge
EDAC Inc. 746-084-525-206	Polyester Thermoplastic	0.76 Ám	30 Áin	Black	2	Dual	42	Copper Alloy	Cantilever	Female	Press-Fit	Gold	84	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	0.125 in	3.18 mm	-40 °C	105 ░C	Non Specified - Dual Edge
EDAC Inc. 746-084-560-206	Polyester Thermoplastic	0.76 Ám	30 Áin	Black	2	Dual	42	Copper Alloy	Cantilever Make Before Break	Female	Press-Fit	Gold	84	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	0.125 in	3.18 mm	-40 °C	105 ░C	Non Specified - Dual Edge
EDAC Inc. 746-084-545-201	Polyester Thermoplastic	0.76 Ám	30 Áin	Black	2	Dual	42	Copper Alloy	Cantilever	Female	Press-Fit Wire Wrap	Gold	84	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	0.125 in	3.18 mm	-40 °C	105 ░C	Non Specified - Dual Edge
EDAC Inc. 746-084-520-206	Polyester Thermoplastic	0.76 Ám	30 Áin	Black	2	Dual	42	Copper Alloy	Cantilever	Female	Press-Fit	Gold	84	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	0.125 in	3.18 mm	-40 °C	105 ░C	Non Specified - Dual Edge
EDAC Inc. 746-084-525-201	Polyester Thermoplastic	0.76 Ám	30 Áin	Black	2	Dual	42	Copper Alloy	Cantilever	Female	Press-Fit	Gold	84	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	2	0.125 in	3.18 mm	-40 °C	105 ░C	Non Specified - Dual Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 13.47

Description

General part information

746-084 Series

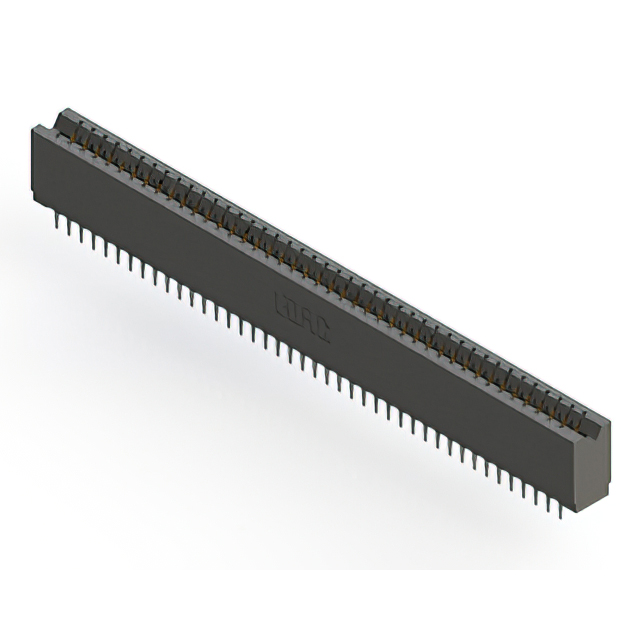

84 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
