FN3270H-80-35

Active

TE Connectivity Raychem Cable Protection

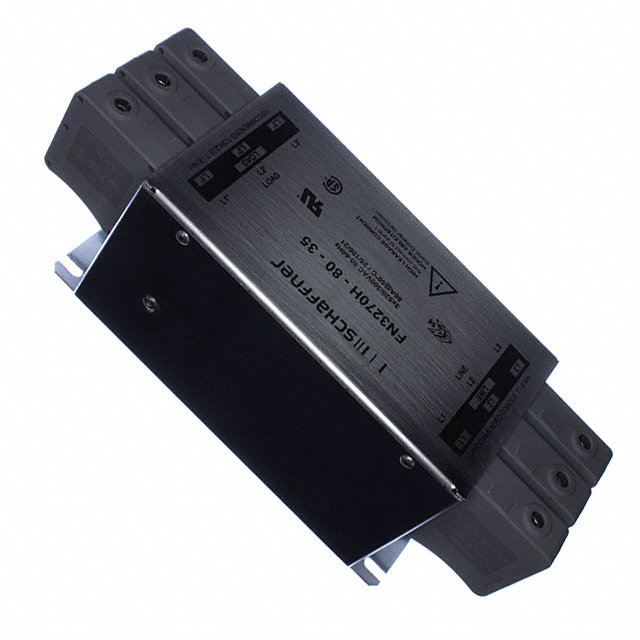

LINE FILTER 480VAC 80A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN3270H-80-35

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 480VAC 80A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN3270H-80-35

Applications	Power Drive Systems, Inverters
Approval Agency	CSA, ENEC, UR
Configuration	Single Stage
Current	80 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	DC
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC	480 V
Voltage - Rated AC (Phase to Ground/Neutral)	300 V
Voltage - Rated AC (Phase to Phase)	520 V

Schaffner FN3270 Series

Part	Operating Temperature [custom]	Approval Agency	Voltage - Rated AC (Phase to Phase)	Termination Style	Frequency - Operating [Max]	Frequency - Operating [Min]	Configuration	Applications	Current	Voltage - Rated AC (Phase to Ground/Neutral)	Mounting Type	Voltage - Rated AC	Filter Type
TE Connectivity Raychem Cable Protection FN3270H-50-34	-25 °C 100 °C	CSA ENEC UR	520 V	Terminal Block	60 Hz	DC	Single Stage	Inverters Power Drive Systems	50 A	300 V	Chassis Mount	480 V	Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN3270H-65-34	-25 °C 100 °C	CSA ENEC UR	520 V	Terminal Block	60 Hz	DC	Single Stage	Inverters Power Drive Systems	65 A	300 V	Chassis Mount	480 V	Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN3270H-80-35	-25 °C 100 °C	CSA ENEC UR	520 V	Terminal Block	60 Hz	DC	Single Stage	Inverters Power Drive Systems	80 A	300 V	Chassis Mount	480 V	Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN3270H-100-35	-25 °C 100 °C	CSA ENEC UR	520 V	Terminal Block	60 Hz	DC	Three Stage	Inverters Power Drive Systems	100 A	300 V	Chassis Mount		Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN3270H-200-99	-25 °C 100 °C	CSA ENEC UR	520 V	Terminal Post	60 Hz	DC	Three Stage	Inverters Power Drive Systems	200 A	300 V	Chassis Mount		Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN3270H-600-99	-25 °C 100 °C	CSA ENEC UR	520 V	Terminal Post	60 Hz	DC	Three Stage	Inverters Power Drive Systems	600 A	300 V	Chassis Mount		Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN3270H-10-44	-25 °C 100 °C	CSA ENEC UR	520 V	Terminal Block	60 Hz	DC	Single Stage	Inverters Power Drive Systems	10 A	300 V	Chassis Mount	480 V	Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN3270H-250-99	-25 °C 100 °C	CSA ENEC UR	520 V	Terminal Post	60 Hz	DC	Three Stage	Inverters Power Drive Systems	250 A	300 V	Chassis Mount		Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN3270H-400-99	-25 °C 100 °C	CSA ENEC UR	520 V	Terminal Post	60 Hz	DC	Three Stage	Inverters Power Drive Systems	400 A	300 V	Chassis Mount		Three Phase (Delta)
TE Connectivity Raychem Cable Protection FN3270H-320-99	-25 °C 100 °C	CSA ENEC UR	520 V	Terminal Post	60 Hz	DC	Three Stage	Inverters Power Drive Systems	320 A	300 V	Chassis Mount		Three Phase (Delta)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 344.09
		12	$ 332.22
		30	$ 320.36

Description

General part information

Schaffner FN3270 Series

Three Phase (Delta) EMC/EMI Line Filter 80 A 480V DC ~ 60Hz Single Stage Terminal Block
