KSW30R-0100

Obsolete

OK INDUSTRIES

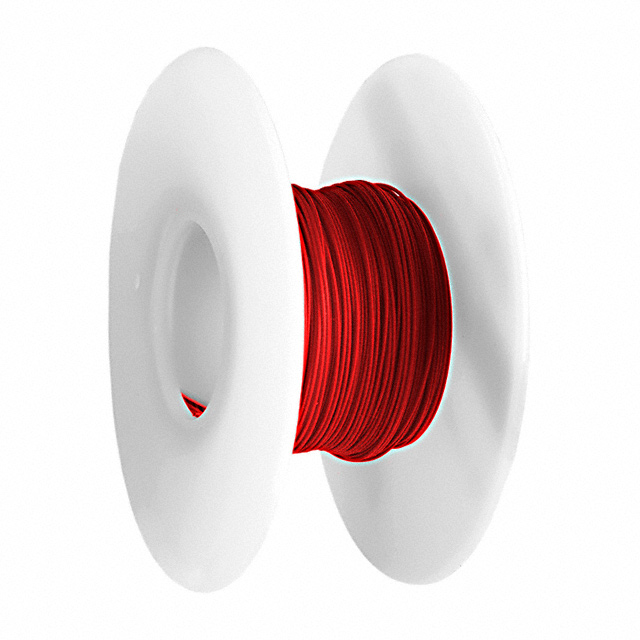

WIRE, WRAPPING WIRE, PVDF, RED, 30 AWG, 100 FT

Search across all available documentation for this part.

Obsolete

OK INDUSTRIES

WIRE, WRAPPING WIRE, PVDF, RED, 30 AWG, 100 FT

Technical Specifications

Parameters and characteristics for this part

Specification	KSW30R-0100

Conductor Diameter [diameter]	0.25 mm
Conductor Diameter [diameter]	0.01 in
Conductor Material	Copper, Bare
Conductor Plating	Silver
Jacket (Insulation) Diameter [diameter]	0.019 in
Jacket (Insulation) Diameter [diameter]	0.5 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)
Jacket (Insulation) Thickness	0.004 in
Jacket (Insulation) Thickness	0.09 mm
Jacket Color	Red
Length	30.5 m
Length [x]	100 ft
Ratings	UL Style 1423
Wire Gauge	30 AWG

Part	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Jacket (Insulation) Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Diameter [diameter]	Conductor Diameter [diameter]	Conductor Material	Length [x]	Length	Conductor Plating
OK INDUSTRIES KSW30R-0100	30 AWG	0.004 in	0.09 mm	UL Style 1423	Polyvinylidene Fluoride (PVDF)	Red	0.019 in	0.5 mm	0.25 mm	0.01 in	Copper Bare	100 ft	30.5 m	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wire Wrap 30 AWG Red Polyvinylidene Fluoride (PVDF) 100' (30.5m)
