TB67H451AFNG,EL
ActiveToshiba Semiconductor and Storage
BRUSHED MOTOR DRIVER IC, 50V, 3.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TB67H451AFNG,EL |
|---|---|
| Applications | General Purpose |
| Current - Output | 3.5 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | PWM |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0.154 in |
| Package / Case | 8-SOIC |
| Package / Case | 3.9 mm |

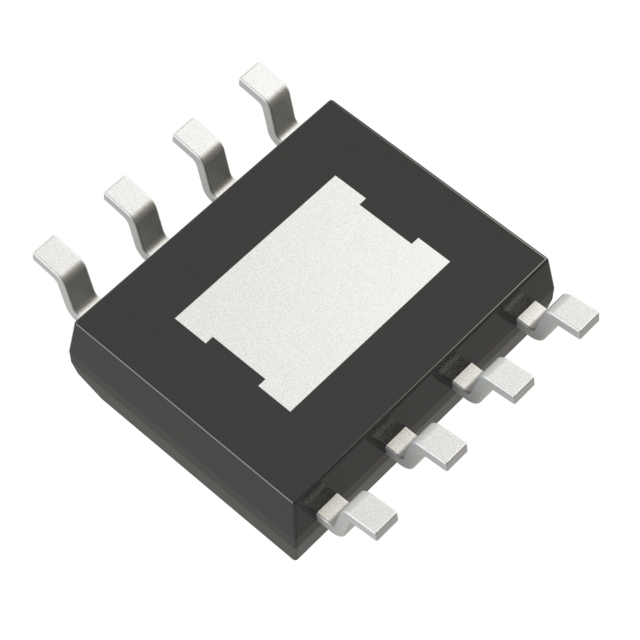

| Supplier Device Package | 8-HSOP |
| Technology | BiCDMOS |
| Voltage - Load [Max] | 44 V |
| Voltage - Load [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.19 | |
| 10 | $ 1.40 | |||
| 25 | $ 1.19 | |||
| 100 | $ 0.96 | |||
| 250 | $ 0.85 | |||
| 500 | $ 0.78 | |||
| 1000 | $ 0.72 | |||
| Digi-Reel® | 1 | $ 2.19 | ||
| 10 | $ 1.40 | |||
| 25 | $ 1.19 | |||
| 100 | $ 0.96 | |||
| 250 | $ 0.85 | |||
| 500 | $ 0.78 | |||
| 1000 | $ 0.72 | |||
| Tape & Reel (TR) | 3500 | $ 0.64 | ||
| 7000 | $ 0.60 | |||
| 10500 | $ 0.59 | |||
| 17500 | $ 0.57 | |||
Description
General part information
TB67H451 Series
Bipolar Motor Driver BiCDMOS PWM 8-HSOP
