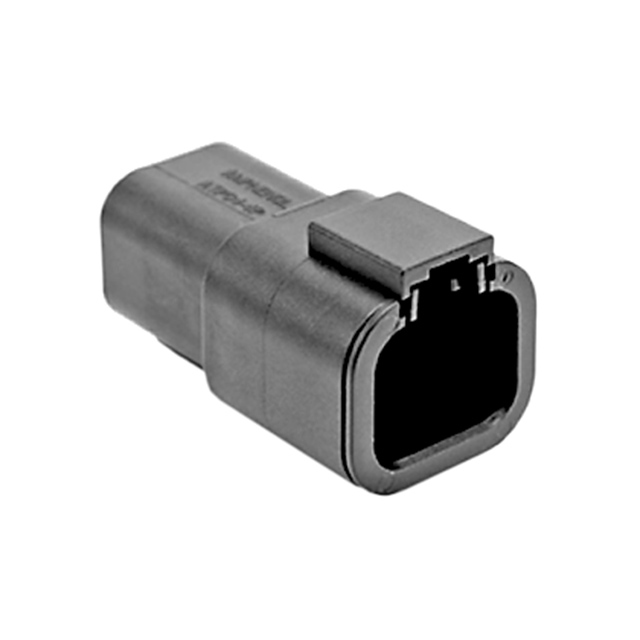

Specification	ATP04-4P-BLK

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Sealed
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

ATP04-4P Series

Part	Connector Type	Contact Type	Fastening Type	Number of Positions Loaded	Row Spacing - Mating	Termination	Contact Finish - Mating	Insulation Height	Contact Material	Insulation Color	Ingress Protection Description	Ingress Protection IP Rating	Features	Number of Positions	Contact Finish - Post	Style	Pitch - Mating	Insulation Material	Operating Temperature (Max)	Operating Temperature (Min)	Shrouding	Contact Length - Post	Current Rating	Contact Shape	Mounting Type	Number of Rows	Note	Color	Contact Termination
McGill Microwave Systems ATP04-4P-BM02	Receptacle	Male Pin	Latch Holder	All	0.4 in	Solder	Gold	1.126 in	Copper Alloy	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	Board Guide Board Lock Potting Wall Sealed	4	Gold	Board Cable/Wire	0.264 in	Thermoplastic	125 °C	-55 °C	Shrouded - 4 Wall	0.146 in	25 A	Circular	Through Hole	2
McGill Microwave Systems ATP04-4P-BM11	Receptacle	Male Pin	Latch Holder	All	0.4 in	Solder	Gold	1.126 in	Copper Alloy	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	Board Guide Sealed	4	Gold	Board Cable/Wire	0.264 in	Thermoplastic	125 °C	-55 °C	Shrouded - 4 Wall	0.146 in	25 A	Circular	Through Hole	2
McGill Microwave Systems ATP04-4P-BM13	Receptacle	Male Pin	Latch Holder	All	0.4 in	Solder	Tin	1.126 in	Copper Alloy	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	Board Guide Sealed	4	Tin	Board Cable/Wire	0.264 in	Thermoplastic	125 °C	-55 °C	Shrouded - 4 Wall	0.146 in	25 A	Circular	Through Hole	2
McGill Microwave Systems ATP04-4P-RD01	Receptacle	Male Pin	Latch Holder										Sealed	4				Thermoplastic	125 °C	-55 °C					Free Hanging (In-Line)	2	Contacts Not Included	Gray	Crimp
McGill Microwave Systems ATP04-4P-SR02BK	Receptacle	Male Pin	Latch Holder										Cap (Cover) IP68 IP69K Reduced Wire Seals Strain Relief	4				Thermoplastic	125 °C	-55 °C					Free Hanging (In-Line)	2		Black	Crimp
McGill Microwave Systems ATP04-4P-BM14	Receptacle	Male Pin	Latch Holder	All	0.4 in	Solder	Tin	1.126 in	Copper Alloy	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	Board Guide Potting Wall Sealed	4	Tin	Board Cable/Wire	0.264 in	Thermoplastic	125 °C	-55 °C	Shrouded - 4 Wall	0.146 in	25 A	Circular	Through Hole	2
McGill Microwave Systems ATP04-4P-MM01BLK	Receptacle	Male Pin	Latch Holder										Cap (Cover) IP68 IP69K Reduced Wire Seals	4				Thermoplastic	125 °C	-55 °C					Free Hanging (In-Line)	2		Black	Crimp
McGill Microwave Systems ATP04-4P-MM01	Receptacle	Male Pin	Latch Holder										Cap (Cover) IP68 IP69K Reduced Wire Seals	4				Thermoplastic	125 °C	-55 °C					Free Hanging (In-Line)	2		Gray	Crimp
McGill Microwave Systems ATP04-4P-PM07GEC	Receptacle	Male Pin	Latch Holder										Cap (Cover) Sealed	4				Thermoplastic	125 °C	-55 °C					Panel Mount	2	Contacts Not Included	Black	Crimp
McGill Microwave Systems ATP04-4P-BM12	Receptacle	Male Pin	Latch Holder	All	0.4 in	Solder	Gold	1.126 in	Copper Alloy	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	Board Guide Potting Wall Sealed	4	Gold	Board Cable/Wire	0.264 in	Thermoplastic	125 °C	-55 °C	Shrouded - 4 Wall	0.146 in	25 A	Circular	Through Hole	2
