Specification	ATP04-4P-SR02BK

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	IP68, Strain Relief, Reduced Wire Seals, IP69K, Cap (Cover)
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

ATP04-4P Series

Part	Connector Type	Contact Type	Fastening Type	Number of Positions Loaded	Row Spacing - Mating	Termination	Contact Finish - Mating	Insulation Height	Contact Material	Insulation Color	Ingress Protection Description	Ingress Protection IP Rating	Features	Number of Positions	Contact Finish - Post	Style	Pitch - Mating	Insulation Material	Operating Temperature (Max)	Operating Temperature (Min)	Shrouding	Contact Length - Post	Current Rating	Contact Shape	Mounting Type	Number of Rows	Note	Color	Contact Termination
McGill Microwave Systems ATP04-4P-BM02	Receptacle	Male Pin	Latch Holder	All	0.4 in	Solder	Gold	1.126 in	Copper Alloy	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	Board Guide Board Lock Potting Wall Sealed	4	Gold	Board Cable/Wire	0.264 in	Thermoplastic	125 °C	-55 °C	Shrouded - 4 Wall	0.146 in	25 A	Circular	Through Hole	2
McGill Microwave Systems ATP04-4P-BM11	Receptacle	Male Pin	Latch Holder	All	0.4 in	Solder	Gold	1.126 in	Copper Alloy	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	Board Guide Sealed	4	Gold	Board Cable/Wire	0.264 in	Thermoplastic	125 °C	-55 °C	Shrouded - 4 Wall	0.146 in	25 A	Circular	Through Hole	2
McGill Microwave Systems ATP04-4P-BM13	Receptacle	Male Pin	Latch Holder	All	0.4 in	Solder	Tin	1.126 in	Copper Alloy	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	Board Guide Sealed	4	Tin	Board Cable/Wire	0.264 in	Thermoplastic	125 °C	-55 °C	Shrouded - 4 Wall	0.146 in	25 A	Circular	Through Hole	2
McGill Microwave Systems ATP04-4P-RD01	Receptacle	Male Pin	Latch Holder										Sealed	4				Thermoplastic	125 °C	-55 °C					Free Hanging (In-Line)	2	Contacts Not Included	Gray	Crimp
McGill Microwave Systems ATP04-4P-SR02BK	Receptacle	Male Pin	Latch Holder										Cap (Cover) IP68 IP69K Reduced Wire Seals Strain Relief	4				Thermoplastic	125 °C	-55 °C					Free Hanging (In-Line)	2		Black	Crimp
McGill Microwave Systems ATP04-4P-BM14	Receptacle	Male Pin	Latch Holder	All	0.4 in	Solder	Tin	1.126 in	Copper Alloy	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	Board Guide Potting Wall Sealed	4	Tin	Board Cable/Wire	0.264 in	Thermoplastic	125 °C	-55 °C	Shrouded - 4 Wall	0.146 in	25 A	Circular	Through Hole	2
McGill Microwave Systems ATP04-4P-MM01BLK	Receptacle	Male Pin	Latch Holder										Cap (Cover) IP68 IP69K Reduced Wire Seals	4				Thermoplastic	125 °C	-55 °C					Free Hanging (In-Line)	2		Black	Crimp

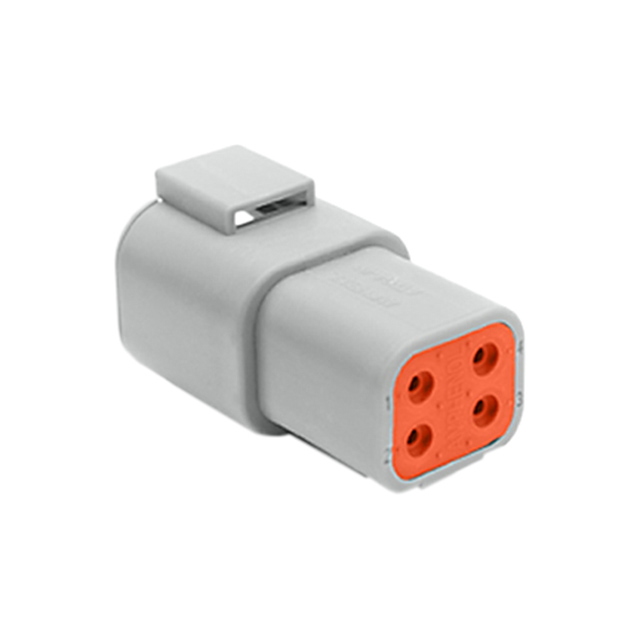

McGill Microwave Systems ATP04-4P-MM01	Receptacle	Male Pin	Latch Holder										Cap (Cover) IP68 IP69K Reduced Wire Seals	4				Thermoplastic	125 °C	-55 °C					Free Hanging (In-Line)	2		Gray	Crimp

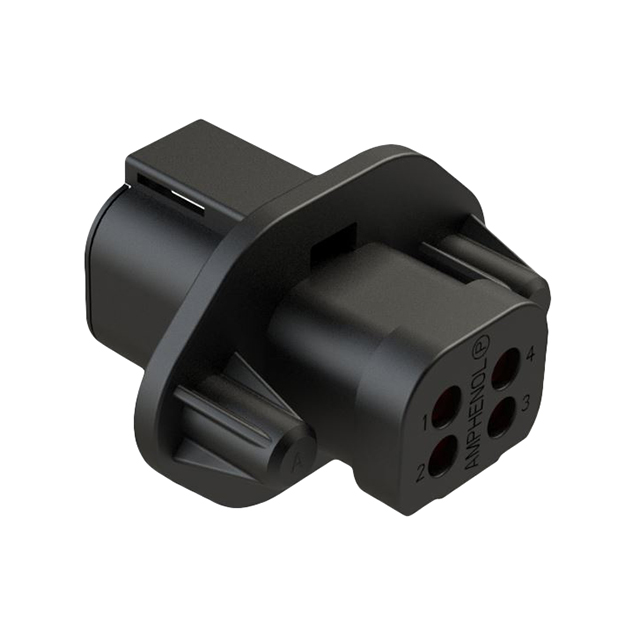

McGill Microwave Systems ATP04-4P-PM07GEC	Receptacle	Male Pin	Latch Holder										Cap (Cover) Sealed	4				Thermoplastic	125 °C	-55 °C					Panel Mount	2	Contacts Not Included	Black	Crimp
McGill Microwave Systems ATP04-4P-BM12	Receptacle	Male Pin	Latch Holder	All	0.4 in	Solder	Gold	1.126 in	Copper Alloy	Black	Dust Tight Water Resistant Waterproof	IP68 IP69K	Board Guide Potting Wall Sealed	4	Gold	Board Cable/Wire	0.264 in	Thermoplastic	125 °C	-55 °C	Shrouded - 4 Wall	0.146 in	25 A	Circular	Through Hole	2
