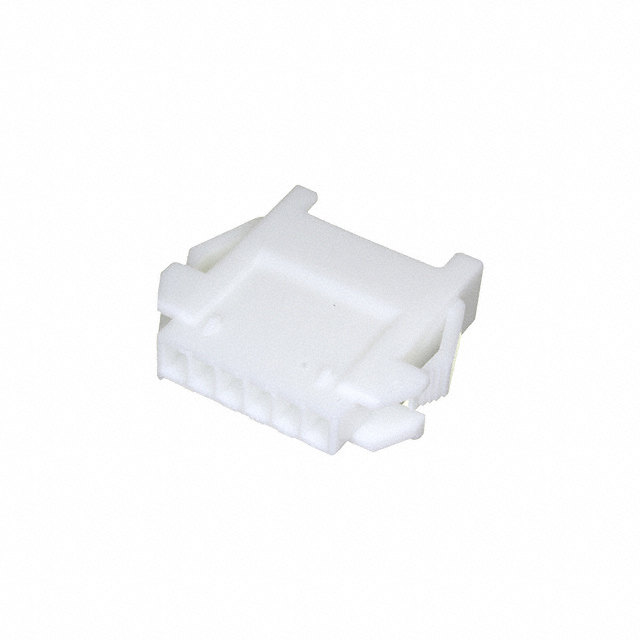

XARR-06V

Active

JST Sales America Inc.

CONN RCPT HSG 6POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart

XARR-06V

Active

JST Sales America Inc.

CONN RCPT HSG 6POS 2.50MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XARR-06V	XARR Series

Color	Natural	Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Male Pin	Male Pin
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Note	Contacts Not Included	Contacts Not Included
Number of Positions	6	2 - 15
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	0.098 in	0.098 in
Pitch [x]	2.5 mm	2.5 mm

XARR Series

CONN RCPT HSG 10POS 2.50MM

Part	Pitch [x]	Pitch [x]	Connector Type	Insulation Material	Note	Contact Type	Contact Termination	Number of Rows	Number of Positions	Fastening Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
JST Sales America Inc. XARR-10VF	0.098 in	2.5 mm	Receptacle	Nylon, Polyamide (PA)	Contacts Not Included	Male Pin	Crimp	1	10	Latch Lock	Natural	-25 °C	85 °C
JST Sales America Inc. XARR-11V	0.098 in	2.5 mm	Receptacle	Nylon, Polyamide (PA)	Contacts Not Included	Male Pin	Crimp	1	11	Latch Lock	Natural	-25 °C	85 °C	Panel Mount, Snap-In
JST Sales America Inc. XARR-06V	0.098 in	2.5 mm	Receptacle	Nylon, Polyamide (PA)	Contacts Not Included	Male Pin	Crimp	1	6	Latch Lock	Natural	-25 °C	85 °C	Panel Mount, Snap-In
JST Sales America Inc. XARR-08VF	0.098 in	2.5 mm	Receptacle	Nylon, Polyamide (PA)	Contacts Not Included	Male Pin	Crimp	1	8	Latch Lock	Natural	-25 °C	85 °C
JST Sales America Inc. XARR-09VF	0.098 in	2.5 mm	Receptacle	Nylon, Polyamide (PA)	Contacts Not Included	Male Pin	Crimp	1	9	Latch Lock	Natural	-25 °C	85 °C
JST Sales America Inc. XARR-04VF	0.098 in	2.5 mm	Receptacle	Nylon, Polyamide (PA)	Contacts Not Included	Male Pin	Crimp	1	4	Latch Lock	Natural	-25 °C	85 °C
JST Sales America Inc. XARR-12VF	0.098 in	2.5 mm	Receptacle	Nylon, Polyamide (PA)	Contacts Not Included	Male Pin	Crimp	1	12	Latch Lock	Natural	-25 °C	85 °C
JST Sales America Inc. XARR-02VF	0.098 in	2.5 mm	Receptacle	Nylon, Polyamide (PA)	Contacts Not Included	Male Pin	Crimp	1	2	Latch Lock	Natural	-25 °C	85 °C
JST Sales America Inc. XARR-02V	0.098 in	2.5 mm	Receptacle	Nylon, Polyamide (PA)	Contacts Not Included	Male Pin	Crimp	1	2	Latch Lock	Natural	-25 °C	85 °C	Panel Mount, Snap-In
JST Sales America Inc. XARR-10V	0.098 in	2.5 mm	Receptacle	Nylon, Polyamide (PA)	Contacts Not Included	Male Pin	Crimp	1	10	Latch Lock	Natural	-25 °C	85 °C	Panel Mount, Snap-In

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.28
		10	$ 0.24
		500	$ 0.15
		1000	$ 0.13
		5000	$ 0.11
		10000	$ 0.10

Description

General part information

XARR Series

6 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet
