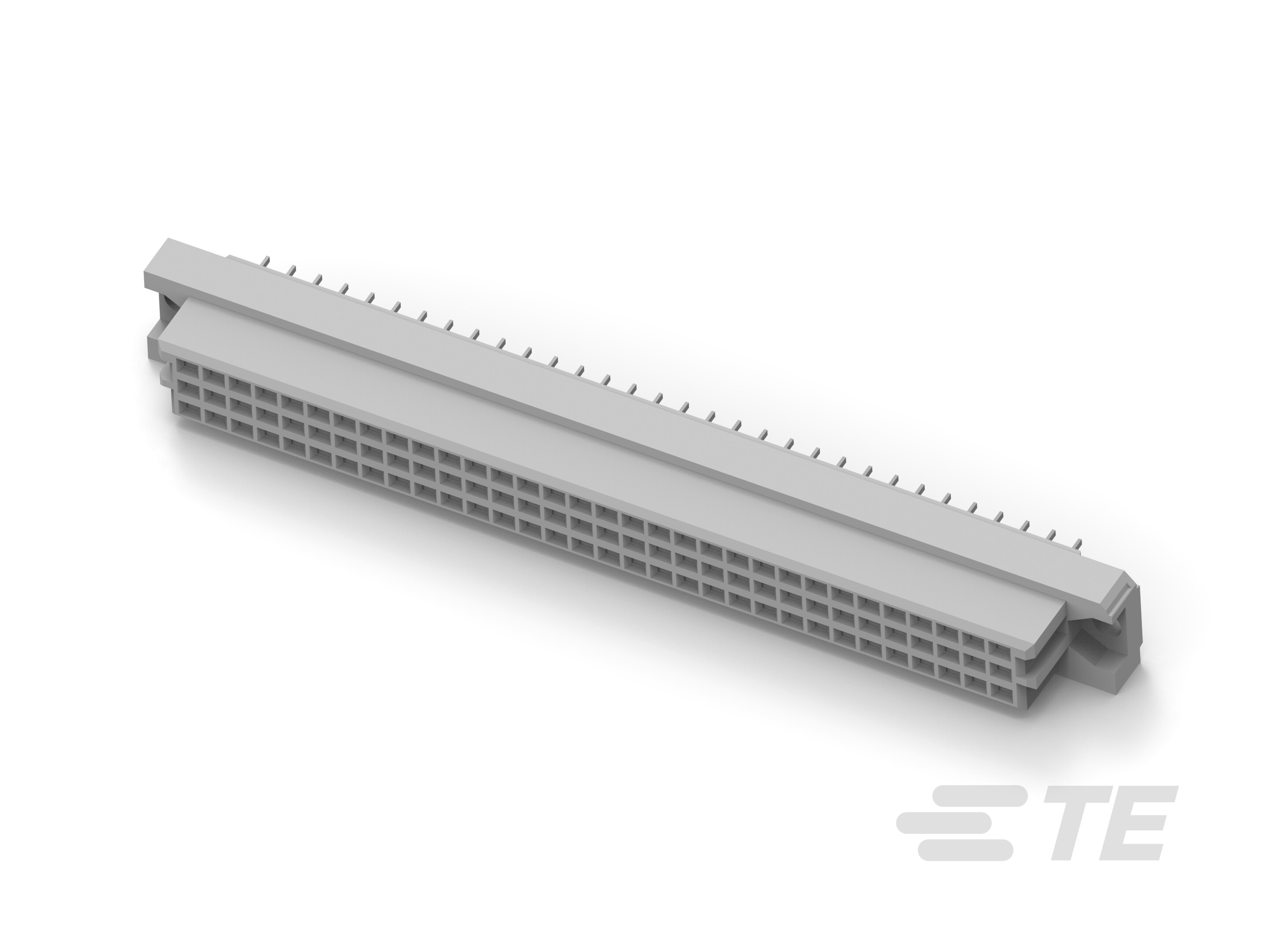

Specification	535090-9

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Level, Class	3
Material - Insulation	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	96
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.1 in
Style	C
Termination	Solder

535090 Series

Part	Material - Insulation	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions Loaded	Contact Finish	Style	Pitch	Termination	Number of Rows	Level, Class	Mounting Type	Connector Type	Number of Positions

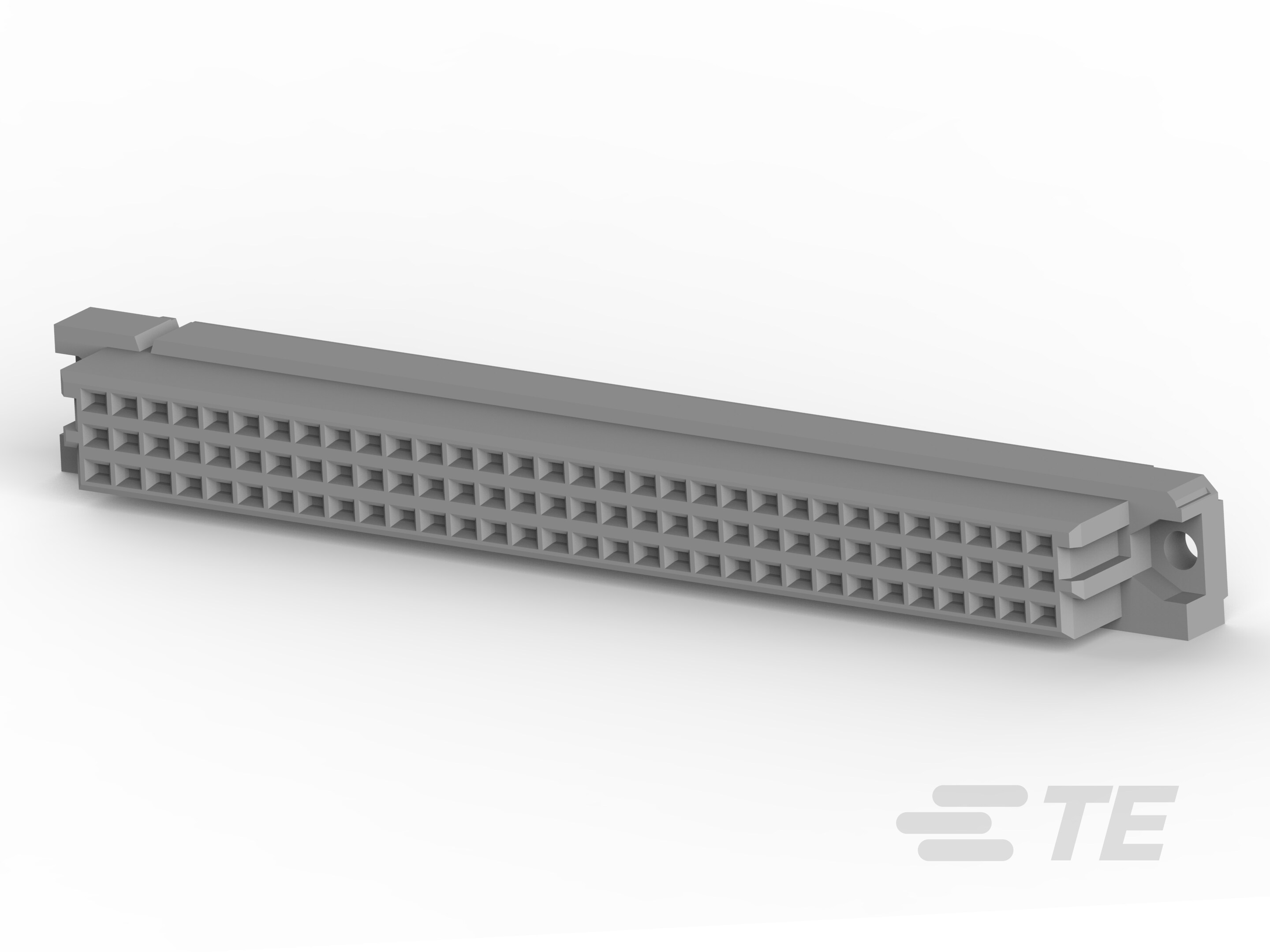

TE Connectivity AMP Connectors 535090-5	Glass Filled Polyester	UL94 V-0	125 °C	-55 °C	All	Gold	C	0.1 in	Solder	3	2	Through Hole	Female Sockets Receptacle	96
TE Connectivity AMP Connectors 535090-9	Glass Filled Polyester	UL94 V-0	125 °C	-55 °C	All	Gold	C	0.1 in	Solder	3	3	Through Hole	Female Sockets Receptacle	96
