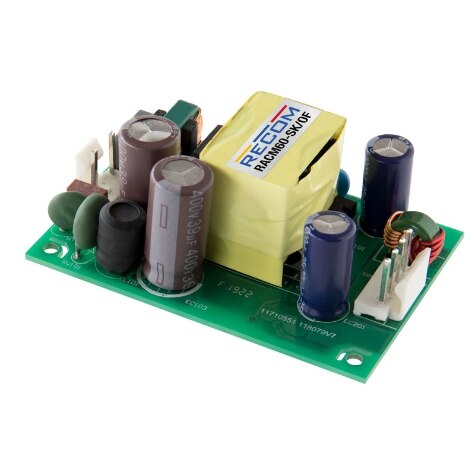

Specification	RACM60-15SK/OF-CTN

Applications	Medical, ITE (Commercial), Household Appliances
Approval Agency	cURus, CE, CB
Current - Output 1	4 A
Efficiency	90 %
Features	Universal Input
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	60 W
Size / Dimension Height	1.24 in
Size / Dimension Length	3.09 in
Size / Dimension Width	2.09 in
Standard Number	60601-1, 62368-1, 60335-1
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	80 V
Voltage - Input (DC) Maximum	370 V
Voltage - Input (DC) Minimum	120 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	15 V

RACM60-K/OF Series

Part	Efficiency	Type	Voltage - Output 1	Standard Number	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Power (Watts)	Features	Applications	Voltage - Isolation	Number of Outputs	Approval Agency	Voltage - Input (DC) Minimum	Voltage - Input (DC) Maximum	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Current - Output 1	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Minimum Load Required	Package Leads	Package Name	Current - Output (Max)
Recom Power RACM60-05SK/OF	89 %	Open Frame	5 V	60335-1 60601-1 62368-1	1.24 in	3.09 in	2.09 in	40 W	Universal Input	Household Appliances ITE (Commercial) Medical	4000 Vpk	1	CB CE cURus	120 V	370 V	264 V	80 V	8 A	85 °C	-40 °C	Chassis Mount	No
Recom Power RACM60-24SK/OF-CTN	90 %	Open Frame	24 V	60335-1 60601-1 62368-1	1.24 in	3.09 in	2.09 in	60 W	Universal Input	Household Appliances ITE (Commercial) Medical	4000 Vpk	1	CB CE cURus	120 V	370 V	264 V	80 V	2.5 A	85 °C	-40 °C	Chassis Mount	No
Recom Power RACM60-12SK/OF/2X4	90 %	Open Frame	12 V	60335-1 60601-1 62368-1	1.24 in	4 in	2.09 in	60 W	Universal Input	Household Appliances ITE (Commercial) Medical	4000 Vpk	1	CB CE cURus	120 V	370 V	264 V	80 V	5 A	85 °C	-40 °C	Chassis Mount	No
Recom Power RACM60-05SK/OF-CTN	89 %	Open Frame	5 V	60335-1 60601-1 62368-1	1.24 in	3.09 in	2.09 in	40 W	Universal Input	Household Appliances ITE (Commercial) Medical	4000 Vpk	1	CB CE cURus	120 V	370 V	264 V	80 V	8 A	85 °C	-40 °C	Chassis Mount
Recom Power RACM60-24SK/OF	90 %	Open Frame	24 V	60335-1 60601-1 62368-1	1.24 in	3.09 in	2.09 in	60 W	Universal Input	Household Appliances ITE (Commercial) Medical	4000 Vpk	1	CB CE cURus	120 V	370 V	264 V	80 V	2.5 A	85 °C	-40 °C	Chassis Mount	No
Recom Power RACM60-12SK/OF-CTN	90 %	Open Frame	12 V	60335-1 60601-1 62368-1	1.24 in	3.09 in	2.09 in	60 W	Universal Input	Household Appliances ITE (Commercial) Medical	4000 Vpk	1	CB CE cURus	120 V	370 V	264 V	80 V	5 A	85 °C	-40 °C	Chassis Mount	No
Recom Power RACM60-12SK/OF/PCB-T	90 %	Open Frame	12 V		1.39 in	3.09 in	2.09 in	60 W	Universal Input	Household Appliances ITE (Commercial) Medical		1	CB CE cURus	120 V	370 V	264 V	80 V		85 °C	-40 °C	Through Hole		6 Leads	7-DIP Module	5 A
Recom Power RACM60-48SK/OF-CTN	90 %	Open Frame	48 V	60335-1 60601-1 62368-1	1.24 in	3.09 in	2.09 in	60 W	Universal Input	Household Appliances ITE (Commercial) Medical	4000 Vpk	1	CB CE cURus	120 V	370 V	264 V	80 V	1.25 A	85 °C	-40 °C	Chassis Mount	No
Recom Power RACM60-24SK/OF/2X4	90 %	Open Frame	24 V	60335-1 60601-1 62368-1	1.24 in	4 in	2.09 in	60 W	Universal Input	Household Appliances ITE (Commercial) Medical	4000 Vpk	1	CB CE cURus	120 V	370 V	264 V	80 V	2.5 A	85 °C	-40 °C	Chassis Mount	No
Recom Power RACM60-05SK/OF/PCB-T	89 %	Open Frame	5 V		1.39 in	3.09 in	2.09 in	40 W	Universal Input	Household Appliances ITE (Commercial) Medical		1	CB CE cURus	120 V	370 V	264 V	80 V		85 °C	-40 °C	Through Hole		6 Leads	7-DIP Module	8 A
