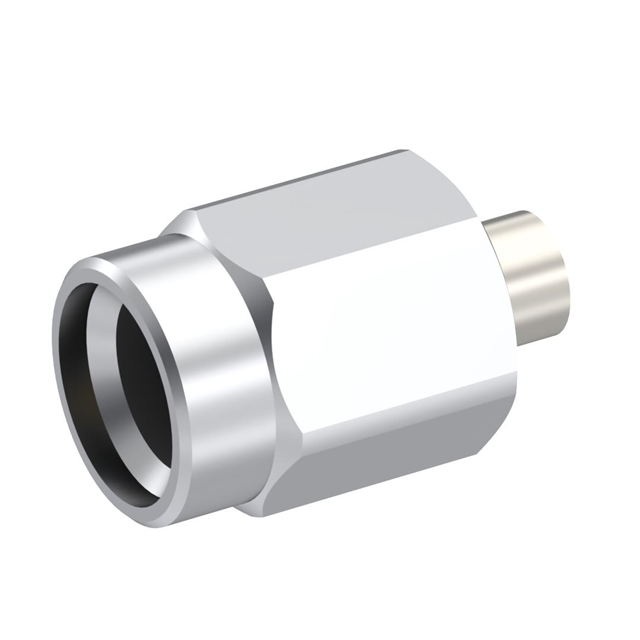

R121053000

Active

Radiall USA, Inc.

SSMA / STRAIGHT PLUG SOLDER TYPE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMA / STRAIGHT PLUG SOLDER TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	R121053000

Body Finish	Nickel
Body Material	Beryllium Copper
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Dielectric Material	Frequency - Max [Max]	Number of Ports	Body Finish	Center Contact Material	Body Material	Cable Group	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Mounting Type	Impedance	Voltage Rating	Connector Type	Connector Style	Shield Termination	Contact Termination	Housing Color
Radiall USA, Inc. R121053000	Polytetrafluoroethylene (PTFE)	18 GHz	1	Nickel	Beryllium Copper	Beryllium Copper	RG-405 (.085" Semi Rigid)	500	115 °C	-55 °C	Gold	Free Hanging (In-Line)	50 Ohms	250 VDC	Male Pin Plug	SSMA	Solder	Solder	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 37.01

General part information

SSMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
