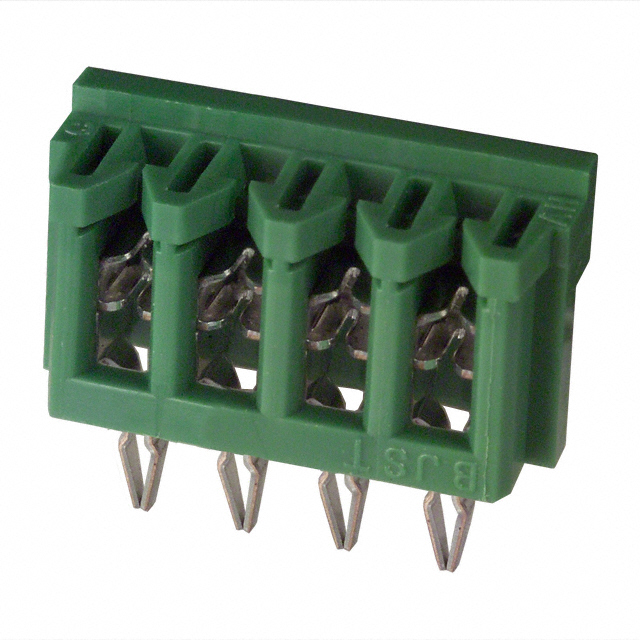

04DB-8M(LF)
ActiveJST Sales America Inc.
CONN WIRE IDC 4POS 24-28AWG PCB
04DB-8M(LF)
ActiveJST Sales America Inc.
CONN WIRE IDC 4POS 24-28AWG PCB
Description
General part information
04DB Series
4 Position Individual Wires Connector Green IDC 24-28 AWG, Stranded Through Hole, Press-Fit
Technical Specifications
Parameters and characteristics for this part
| Specification | 04DB-8M(LF) |
|---|---|
| Board-Side Pitch | 0.098 in |
| Cable Pitch | 0.098 in |
| Cable Termination | IDC |
| Color | Green |
| Connector Type | Individual Wires |
| Contact Finish | Tin-Lead |
| Features | Closed End |
| Mounting Type | Through Hole, Press-Fit |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Wire Gauge | Stranded |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
