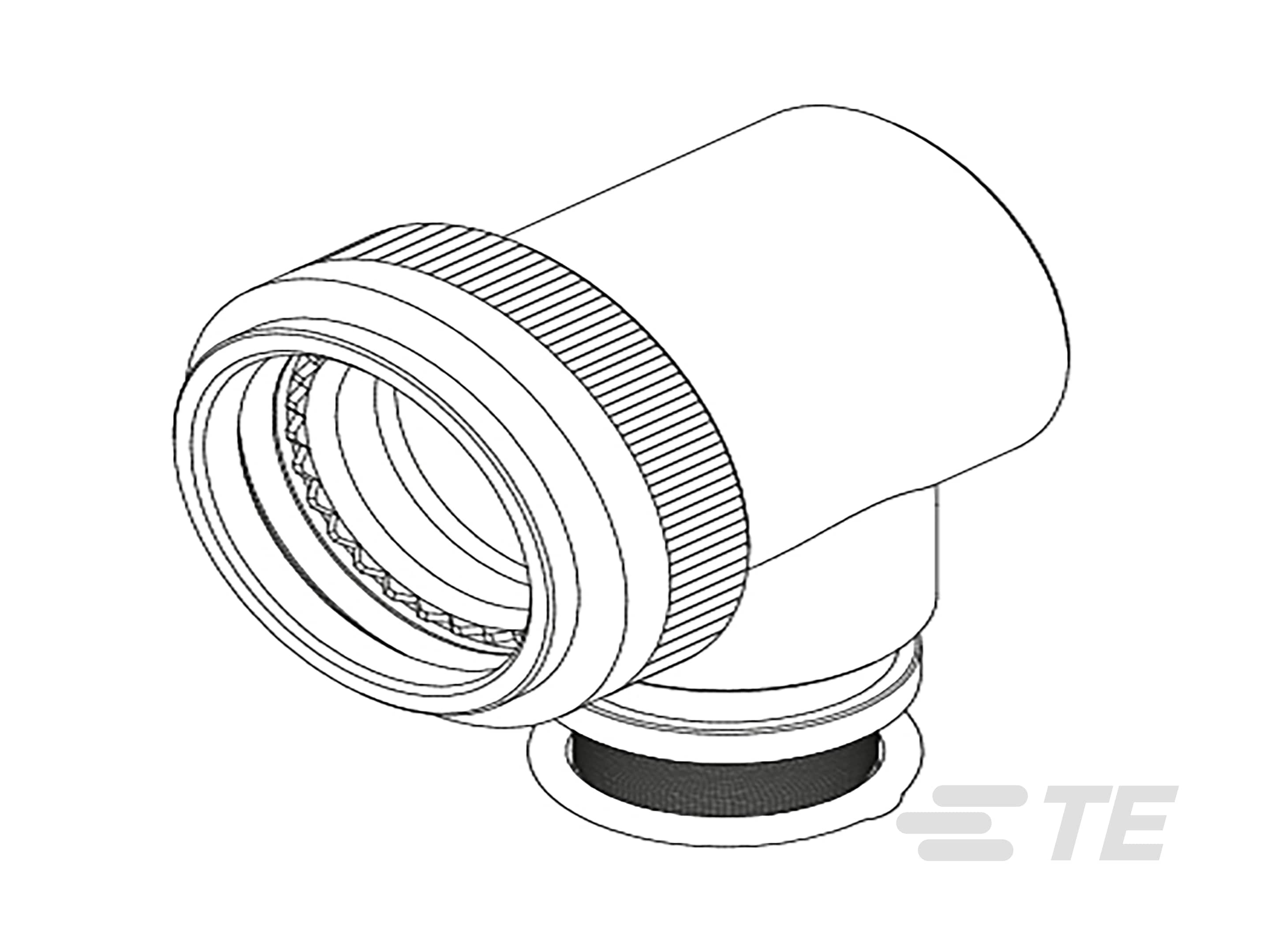

Specification	TXR54AC90-1004AIL-CS9067

Cable Exit Angle	90 °
Color	Silver
Diameter - Outside	0.732 in
Features	Tinel Lock, Wire Holes
For Use With/Related Products	MIL-DTL-83723 Series I, III, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-C-5015G MS3400 Series
Includes	Backshell, Tinel Ring, Braid
Includes Total Count	3 pcs
Material	Aluminum Alloy
Plating	Electroless Nickel
Shell Size - Insert	10, 10S, 10SL
Shielding	Shielded
Thread Pitch (TPI)	24 TPI
Thread Size (Class)	UNEF
Thread Size (Nominal)	0.625 in
Type	Backshell, Heat Shrink Adapter

TXR54AC90 Series

Part	For Use With/Related Products	Includes Total Count	Includes	Features	Color	Type	Shell Size - Insert	Material	Thread Pitch (TPI)	Thread Size (Class)	Thread Size (Nominal)	Diameter - Outside	Plating	Shielding	Cable Exit Angle	Shell Size - Insert	Thread Size
TE Connectivity AMP Connectors TXR54AC90-1206BI	III MIL-C-5015G MS3400 Series MIL-C-81703 Series III MIL-DTL-26482 Series II MIL-DTL-83723 Series I	3 pcs	Backshell Braid Tinel Ring	Tinel Lock	Silver	Backshell Heat Shrink Adapter	12 12S 7	Aluminum Alloy	20 TPI	UNEF	0.75 in	0.854 in	Electroless Nickel	Shielded	90 °
TE Connectivity AMP Connectors TXR54AC90-2418AI	III MIL-C-5015G MS3400 Series MIL-C-81703 Series III MIL-DTL-26482 Series II MIL-DTL-83723 Series I	3 pcs	Backshell Braid Tinel Ring	Tinel Lock	Silver	Backshell Heat Shrink Adapter	24	Aluminum Alloy	18 TPI	UNEF	1.4375 in	1.59 in	Electroless Nickel	Shielded	90 °	24
TE Connectivity AMP Connectors TXR54AC90-2418AI
TE Connectivity AMP Connectors TXR54AC90-1004AIL-CS9067	III MIL-C-5015G MS3400 Series MIL-C-81703 Series III MIL-DTL-26482 Series II MIL-DTL-83723 Series I	3 pcs	Backshell Braid Tinel Ring	Tinel Lock Wire Holes	Silver	Backshell Heat Shrink Adapter	10 10S 10SL	Aluminum Alloy	24 TPI	UNEF	0.625 in	0.732 in	Electroless Nickel	Shielded	90 °
TE Connectivity AMP Connectors TXR54AC90-1208BI	III MIL-C-5015G MS3400 Series MIL-C-81703 Series III MIL-DTL-26482 Series II MIL-DTL-83723 Series I	3 pcs	Backshell Braid Tinel Ring	Tinel Lock	Silver	Backshell Heat Shrink Adapter	12 12S 7	Aluminum Alloy	20 TPI	UNEF	0.75 in	0.854 in	Electroless Nickel	Shielded	90 °
TE Connectivity AMP Connectors TXR54AC90-2216BI	III MIL-C-5015G MS3400 Series MIL-C-81703 Series III MIL-DTL-26482 Series II MIL-DTL-83723 Series I	3 pcs	Backshell Braid Tinel Ring	Tinel Lock	Silver	Backshell Heat Shrink Adapter	22	Aluminum Alloy	18 TPI	UNEF	1.3125 in	1.468 in	Electroless Nickel	Shielded	90 °	22
TE Connectivity AMP Connectors TXR54AC90-0804AI2	III MIL-C-5015G MS3400 Series MIL-C-81703 Series III MIL-DTL-26482 Series II MIL-DTL-83723 Series I	3 pcs	Backshell Braid Tinel Ring	Tinel Lock	Silver	Backshell Heat Shrink Adapter	8 8S	Aluminum Alloy	20 TPI	UNF	0.5 in	0.614 in	Electroless Nickel	Shielded	90 °
TE Connectivity AMP Connectors TXR54AC90-1408BI	III MIL-C-5015G MS3400 Series MIL-C-81703 Series III MIL-DTL-26482 Series II MIL-DTL-83723 Series I	3 pcs	Backshell Braid Tinel Ring	Tinel Lock	Silver	Backshell Heat Shrink Adapter	12 14 14S	Aluminum Alloy				0.98 in	Electroless Nickel	Shielded	90 °		7/8-20 UNEF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
