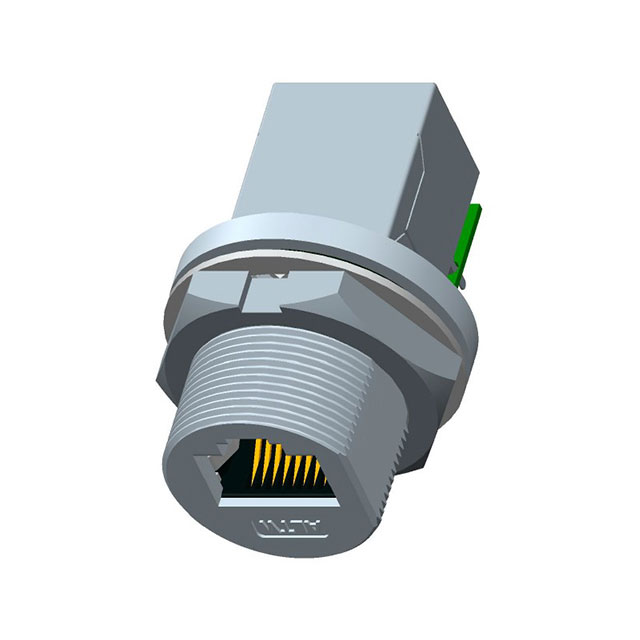

Specification	RCM-5SPFFH-SCU7001

Connector Type	Jack, Ethernet, RJ45
Contact Finish	Gold
Housing Material	Zinc Alloy
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Through Hole, Panel Mount, Board Edge, Bulkhead - Front Side Nut
Number of Contacts	8
Number of Ports	1
Number of Positions	8
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation Angle	90 °
Orientation Direction	Right
Ratings	Cat5e
Shielding	Shielded
Tab Direction	Down
Termination	Solder

RCM-5SPFFH Series

Part	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Housing Material	Termination	Connector Type	Shielding	Number of Positions	Number of Contacts	Tab Direction	Number of Ports	Contact Finish	Number of Rows	Orientation Angle	Orientation Direction	Ratings	Ingress Protection Description	Ingress Protection IP Rating
McGill Microwave Systems RCM-5SPFFH-SCU7001	Board Edge Bulkhead - Front Side Nut Panel Mount Through Hole	-40 °C	105 °C	Zinc Alloy	Solder	Ethernet Jack RJ45	Shielded	8	8	Down	1	Gold	1	90 °	Right	Cat5e	Dust Tight Waterproof	IP67
